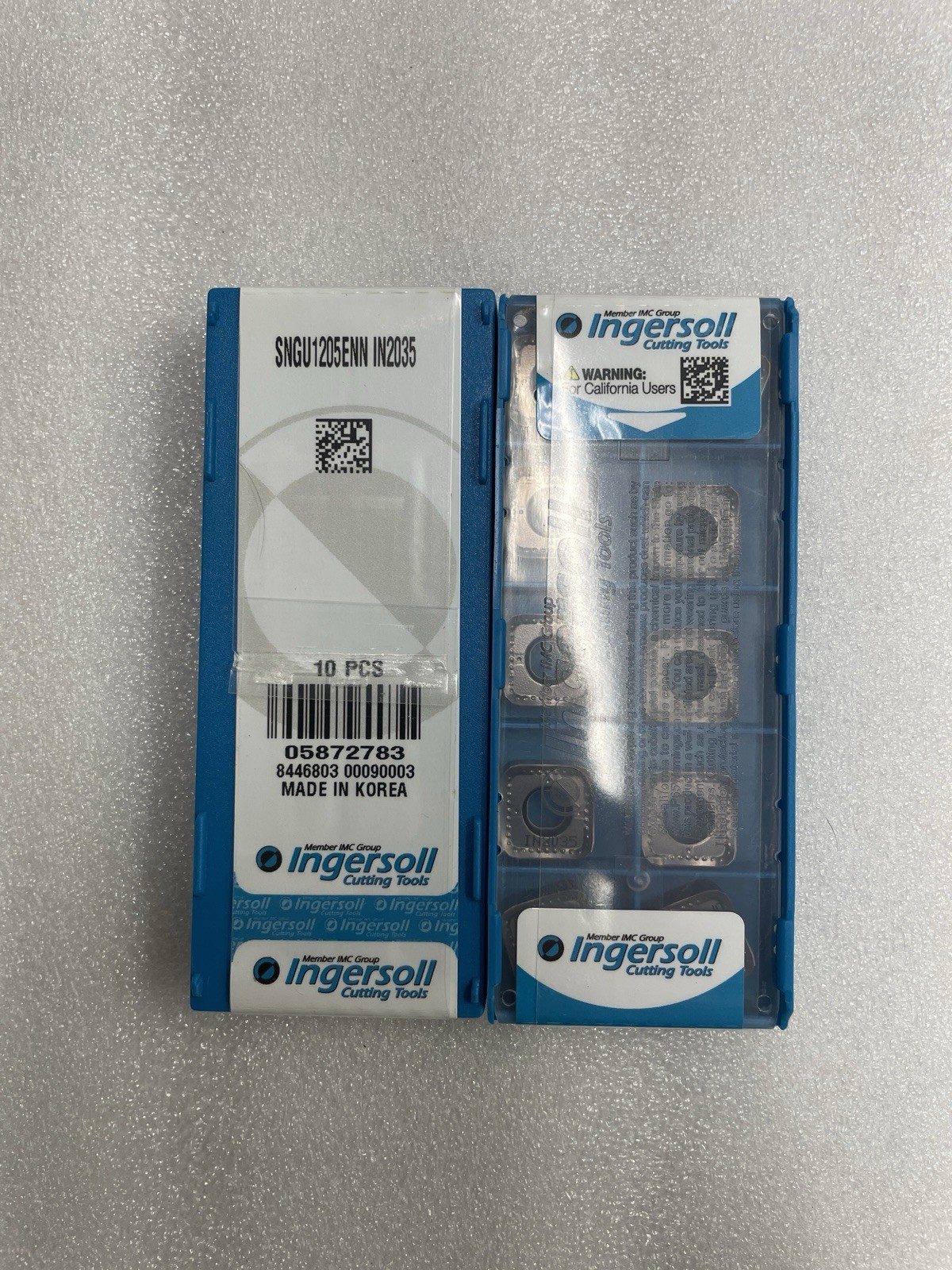

Box of 10 new Ingersoll Cutting Tools caroffere milling inserts in the original Ingersoll storage case.
Manufacturer: Ingersoll Cutting Tools
Designation: SNGU1205ENN
Manufacturer Part Number / EDP: 5872783
MSC Item Number: 38278842
Grade: IN2035
Quantity: 10 inserts
Country of Origin: Korea
Specifications:
- Insert type: Double-sided indexable milling insert
- Insert shape: Square
- Insert material: Solid caroffere
- Coating: PVD TiAlN
- Cutting direction: Neutral
- Negative-rake geometry
- Relief angle: 0°
- Number of cutting edges / indexes: 8
- Inscribed circle: 0.500" / 12.70 mm
- Length and width: 0.500" x 0.500" / 12.70 x 12.70 mm
- Thickness: 0.250" / 6.35 mm
- Corner radius: 0.0157" / approximately 0.40 mm
- Wiper length: 0.040" / approximately 1.02 mm
- Corner chamfer length: 0.040" / approximately 1.02 mm
- Screw-on mounting
- Pressed rake-face geometry with integrated wiper flats
- Multipurpose milling application
- Compatible with applicable Ingersoll 1DD1H, DD6H, DL5H, DL6H, DN5H and DN6H series cutters
- IN2035 grade is intended primarily for stainless steel and heat-resistant alloy milling applications
Lot includes 10 new, unused inserts and the original Ingersoll storage case.
The original packaging has been opened. Packaging may show shelf wear from storage.
Free shipping included.
