Feature

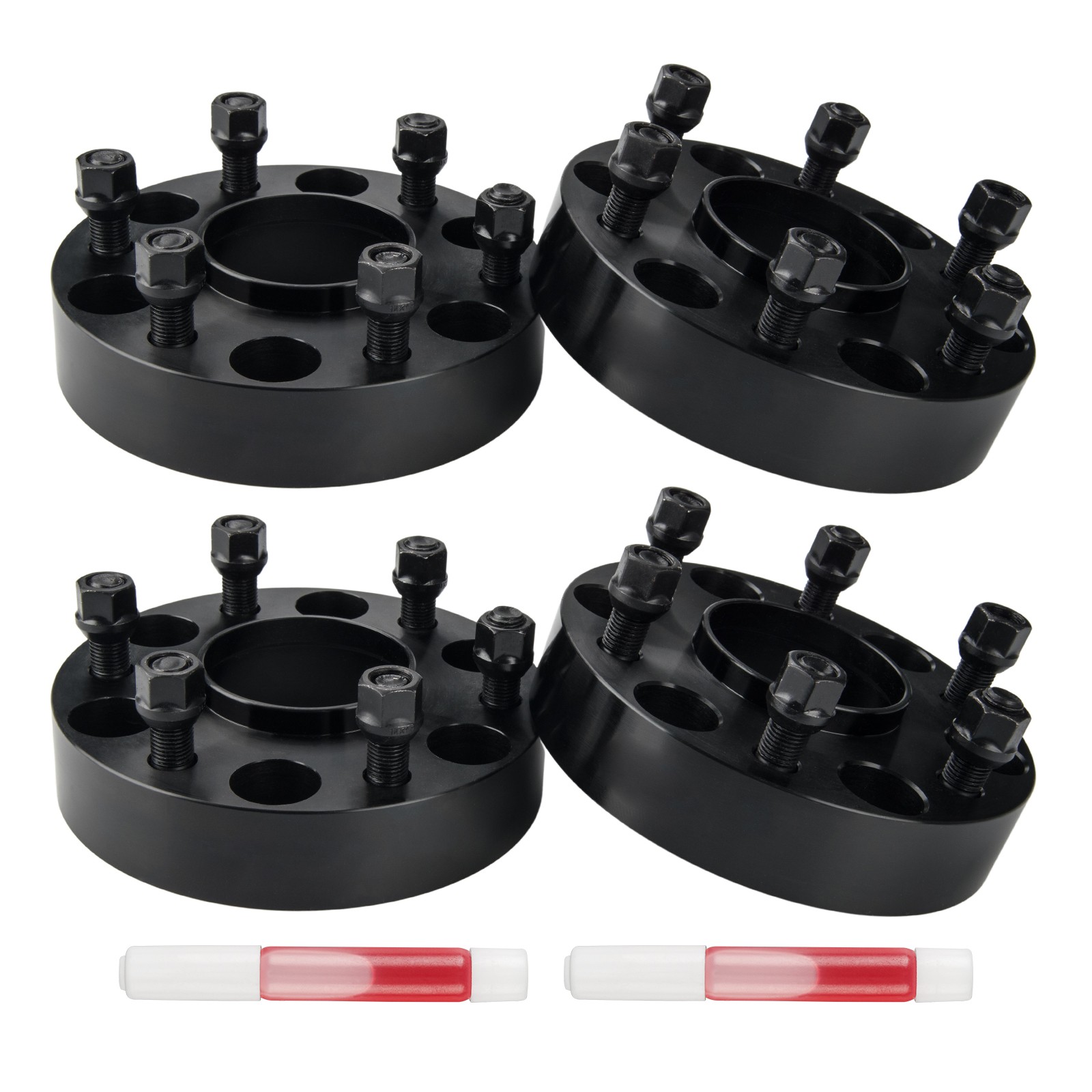

- Made from high-quality T6 6061 billet aluminum for durability and long-lasting performance.
- Hub-centric design ensures a more secure fit compared to lug-centric spacers, providing improved stability.
- Each pack includes 4 wheel spacers, thread locker, and an instruction manual for a complete installation solution.
- Torqued down by hand at 85-90 lb-ft for optimal safety and performance.
- Compatible with various models, ensuring versatility across different vehicle applications.
Specification
Spacer Thickness: 1.5inch
Vehicle Bolt Pattern: 6x5.5"
Wheel Bolt Pattern: 6x5.5"
Thread Size: M14x1.5
Hub Bore: 78.1mm
Hubcentirc: Hubcentirc: Yes，Easier to install,Easy to Locate,More secure than lug-centric spacers as they seat on the hub,No need to purchase separate hub-centric rings.
Lug Patterns: 6
Torqued Down By Hand At: 85-90lb-ft
Inside Diameter: 78.1mm
Outside Diameter: 176mm
Items Included: 4x wheel spacers,Thread locker,Instruction Manual
Stud Grade: 12.9
Number of Pieces: 4
UPC: Does not apply
Placement on Vehicle: Left, Right, Front, Rear
Manufacturer Warranty: 5 Years
Number in Pack: 4
Features: durable
Finish: Manufacturing process
Color: Black
Manufacturer Part Number: Does not apply
Centering: 78.1mm
Material: High Quality t6 6061 Billet Aluminum
Bolt Pattern: 6x5.5"
Brand: KAC
Type: wheel spacer
Compatibility
For Chevrolet：
Chevrolet Silverado 1500 1999-2000 V8 5.3L (DriveType:4WD; RWD, SubModel:Base; LS; LT)
Chevrolet Silverado 1500 2001 V8 5.3L (DriveType:4WD; RWD, SubModel:Base; LS; LT)
Chevrolet Silverado 1500 2002-2003 V8 5.3L (DriveType:4WD; RWD, SubModel:Base; LS; LT; WT)
Chevrolet Silverado 1500 2002-2003 V8 4.8L (DriveType:4WD; RWD, SubModel:Base; LS; LT; WT)
Chevrolet Silverado 1500 2004 V8 5.3L (BodyType:Crew Cab Pickup; Extended Cab Pickup; Standard Cab Pickup, DriveType:4WD; RWD, SubModel:Base; Hybrid; LS; LT; WT; Z71 Off-Road)
Chevrolet Silverado 1500 2005 V8 5.3L (BodyType:Crew Cab Pickup; Extended Cab Pickup; Standard Cab Pickup, DriveType:4WD; RWD, SubModel:Base; Hybrid; LS; LT; WT; Z71 Off-Road)
Chevrolet Silverado 1500 2006 V8 5.3L (BodyType:Crew Cab Pickup; Extended Cab Pickup; Standard Cab Pickup, DriveType:4WD; RWD, SubModel:Hybrid; LS; LT; WT)
Chevrolet Silverado 1500 2008-2009 V8 5.3L (BodyType:Crew Cab Pickup; Extended Cab Pickup; Standard Cab Pickup, DriveType:4WD; RWD, SubModel:LT; LTZ; WT)
Chevrolet Silverado 1500 2008-2013 V8 4.8L (BodyType:Crew Cab Pickup; Extended Cab Pickup; Standard Cab Pickup, DriveType:4WD; RWD, SubModel:LS; LT; WT)
Chevrolet Silverado 1500 2010-2013 V8 5.3L (BodyType:Crew Cab Pickup; Extended Cab Pickup; Standard Cab Pickup, DriveType:4WD; RWD, SubModel:LS; LT; LTZ; WT; XFE)
Chevrolet Silverado 1500 2014 V8 5.3L (BodyType:Crew Cab Pickup; Extended Cab Pickup; Standard Cab Pickup, DriveType:4WD; RWD, SubModel:High Country; LT; LTZ; WT)
Chevrolet Silverado 1500 2015 V8 5.3L (BodyType:Crew Cab Pickup; Extended Cab Pickup; Standard Cab Pickup, DriveType:4WD; RWD, SubModel:High Country; LS; LT; LTZ; SSV; WT)
Chevrolet Silverado 1500 2016 V8 5.3L (BodyType:Crew Cab Pickup; Extended Cab Pickup; Standard Cab Pickup, DriveType:4WD; RWD, SubModel:Custom; High Country; LS; LT; LTZ; SSV; WT)
Chevrolet Silverado 1500 2017-2018 V8 5.3L (DriveType:4WD; RWD)
Chevrolet Silverado 1500 2019 V8 5.3L (DriveType:4WD; RWD)
Chevrolet Silverado 1500 2020-2022 All engine
Chevrolet Tahoe 2003-2006 V8 5.3L (DriveType:4WD; RWD)
Chevrolet Tahoe 2007-2011 V8 5.3L (DriveType:4WD; RWD, SubModel:LS; LT; LTZ; PPV)
Chevrolet Tahoe 2015-2016 V8 5.3L (DriveType:4WD; RWD)
Chevrolet Tahoe 2017-2019 V8 5.3L (DriveType:4WD; RWD)
Chevrolet Tahoe 2021-2022 All engine
Chevrolet Suburban 1500 2000-2006 V8 5.3L (DriveType:4WD; RWD)
Chevrolet Suburban 1500 2007-2011 V8 5.3L (DriveType:4WD; RWD)
Chevrolet Express 2500 2006-2019 All engine
Chevrolet K1500 1995-1999 All engine
Chevrolet Avalanche 1500 2002-2006 V8 5.3L (DriveType:4WD; RWD)
Chevrolet Silverado 1500 LTD 2022 All engine
Chevrolet Avalanche 2007-2011 V8 5.3L (DriveType:4WD; RWD)For GMC：
GMC Sierra 1500 2001-2004 V8 5.3L (DriveType:4WD; RWD)
GMC Sierra 1500 2005-2006 V8 5.3L (DriveType:4WD; RWD)
GMC Sierra 1500 2009-2014 V8 5.3L (DriveType:4WD; RWD)
GMC Sierra 1500 2015-2016 V8 5.3L (BodyType:Crew Cab Pickup; Extended Cab Pickup; Standard Cab Pickup, DriveType:4WD; RWD, SubModel:Base; Denali; SLE; SLT)
GMC Sierra 1500 2017-2018 V8 5.3L (DriveType:4WD; RWD)
GMC Sierra 1500 2019-2022 All engine
GMC Yukon 2007-2016 V8 5.3L (DriveType:4WD; RWD)For Ram：
Ram 1500 2019-2020 V8 5.7L (DriveType:4WD; RWD)
Ram 1500 2021 V8 5.7L (DriveType:4WD; RWD)
Ram 1500 2022-2023 V8 5.7LFor Cadillac：
Cadillac Escalade ESV 2007-2022 All engineFor Nissan：
Nissan Armada 2017-2022 All engine
Package Included
4x wheel spacers,Thread locker,Instruction Manual
Installation Guide
- Ensure that the vehicle is on a level surface and securely lifted before beginning installation.
- Remove the wheel from the vehicle and clean the hub surface to ensure proper contact with the spacer.
- Align the spacer over the hub, ensuring it is seated properly, and secure it using the provided thread locker.
- Reinstall the wheel and torque the lug nuts to the specified 85-90 lb-ft.
- Repeat the process for all wheels that require installation of the spacers.
Important Notes
- This product is designed for specific vehicle fitments including, but not limited to:
- For 2020-2022 Chevrolet Silverado 1500 All engine
- For 2017-2018 Chevrolet Silverado 1500 V8 5.3L
- For 2010-2013 Chevrolet Silverado 1500 V8 5.3L
- Ensure compatibility with your vehicle before purchasing.
- Check the specifications for hub bore, bolt pattern, and spacer thickness to ensure the correct fit.
- Manufacturer warranty of 5 years provided; please retain your purchase receipt for warranty claims.
How To Measure the Bolt Pattern of Your Vehicle
The bolt pattern refers to the diameter of an imaginary circle formed by the centers of the wheel lugs. Different vehicles come with different types of bolt patterns on their wheels. It is better to do some measurements on your own. Common bolt patterns are of 4, 5, 6 or 8lug holes.How to Measure the Thickness of Wheel Spacers
To achieve the look that flushes or nearly flushes with the fender, measuring the wheel gap is necessary. Too thick can cause the tires to rub against the body, while too thin may not achieve the desired visual or performance improvements. The wheel gap refers to the distance from the outside edge of your tires or rims to the inner fender lip.
1. Place a straight edge across the face of the wheel and tire combination. Make sure the straight edge touches both sides of the tire to make sure that the straight edge truly represents the front face of the wheel.
2. Use your measuring tool to measure from the inside of the straight edge to the inside of the fender lip.
3. Take the measurement at the point where the wheel and tire is closest to the fender. This may be closer to the front or rear edge of the fender rather than top dead center.Important Notes
1. Check the thickness of the spacer you are ordering. If your vehicle has studs that are longer than the thickness of the spacer, you will need to trim your vehicle studs. If your rims mount lug bolts, and you want to install a thin spacer, you may need shorter lug bolts.
2. The centerbore of the spacer is the size of the big hole in the middle. If the center of your hub is larger than the centerbore of the spacer, it will not fit. It's ok if the center of your hub is smaller. If you need an exact fit, then order hub-centric spacers.
Non Hub Centric or Hub Centric Wheel Spacers
Hub centric wheel spacers: Use the axle hub to center and support the wheel. Use the lug studs as compressive force to keep the wheel tight to the wheel hub.
Lug-centric wheel spacers: Use the lug studs to support the wheel. Then uses tapered holes and nuts to align/center the wheel so that the spacers can keep it compresses to the hub.
Hub centric wheel spacers match the locating ring on the hub, ensuring that the weight of the car is carried by the hub and not by the studs or bolts, thus reducing the stress on the bolts or studs. Lug centric wheel spacers use lug studs to support the wheel, then tapered holes and nuts to position the wheel and keep it compressed against the hub. Non hub centric wheel spacers may cause vibration while driving. So using the hub centric wheel spacers will be a better option.
