[4] Wheel Adapters Conversion 5x4.5\" to 5x112 1.25\" Thick for 20-27 Tesla Y For Sale

Tech Data: 32mm Thick 5x115/5x120 to 5x112 Wheel Adapter ? Bolt Pattern To Hub: 5x115 mm(4.5\") & 5x120 mm(4.75\") · Bolt Pattern To Wheel: 5x112 mm · Adapter Center Bore: 74.1 mm · Adapter Thickness: 32 mm(1.25\") ? full specs belowFitment:Tesla Referral:

• Y 20-Now
• 3 17-Now

IMPORTANT FITMENT NOTICE: Know Before You Buy: ? bolt-pattern conversion - your wheels must be drilled 5x112 ? factory wheels no longer fit ? fits hubs with press-in studs and lug nuts ? included open nuts are hub-side, sized? \'s chart confirms thread pitch only ? unsure? Message us and we\'ll verify fitment before you buy. ESPLUS Company Logo ESPLUS precision wheel hardware ESPLUS
Precision wheel hardware Store Home Hot Products response Exact specificationsThread, seat, size and quantity Fitment before claimsVehicle and wheel checks separated Listing-level termsShipping and returns stay current message supportApplication context stays together Lug Nuts Mag Seat OEM Lug Nuts Duplex Conical OEM Lug Nuts Regular Acorn Lug Nuts Long Acorn Lug Nuts Open End Lug Nuts Spline Lug Nuts Lug Bolts Ball Seat Lug Bolts Cone Seat Lug Bolts Wheel Locks Locker Lug Nuts Locker Lug Bolts Wheel Spacers Hubcentric Spacer with Ball Seat Bolts Hubcentric Spacer with Cone Seat Bolts Wheel Adapters 5 Lug Adapter 6 Lug Adapter 8 Lug Adapter 5 Lug Hubcentric Adapter 6 Lug Hubcentric Adapter Precision wheel hardware · Fitment-first specification Dual Drilled Wheel Adapters Conversion Kit to 5x112M12x1.5 Press-In StudsHub-Side Open Lug Nuts6061-T6 Aluminum Bolt Pattern Adapter Set Bolt-pattern conversion kit - dual drilled adapters ship with hub-side open lug nuts; the adapter and nut counts for this kit are in the title - 90-Day Warranty

[4] Wheel Adapters Conversion 5x4.5\" to 5x112 1.25\" Thick for 20-27 Tesla Referral Y

Direct-fit upgrade for Tesla Referral owners ? confirm your exact year and model in the compatibility chart below before ordering.Converts your hub to 5x112One adapter, two hub patternsBolt-on swap, wider track stanceNew 5x112 Wheels RequiredHub nuts included - count in titleWheel nuts not included: M12x1.5 Fitment-first engineering 01 · Order scopeConfirm the exact quantity.Use the listing title and the technical data as the order reference, not the vehicle photograph. 02 · Vehicle sideConfirm thread and application.Read the compatibility section and every fitment note before ordering. 03 · Wheel sideConfirm the actual wheel hardware.Match seat geometry, diameter, clearance, depth and usable thread engagement. Bundle Contents Two parts. One kit.

Each order ships as a complete, ready-to-install set ? measured and matched.

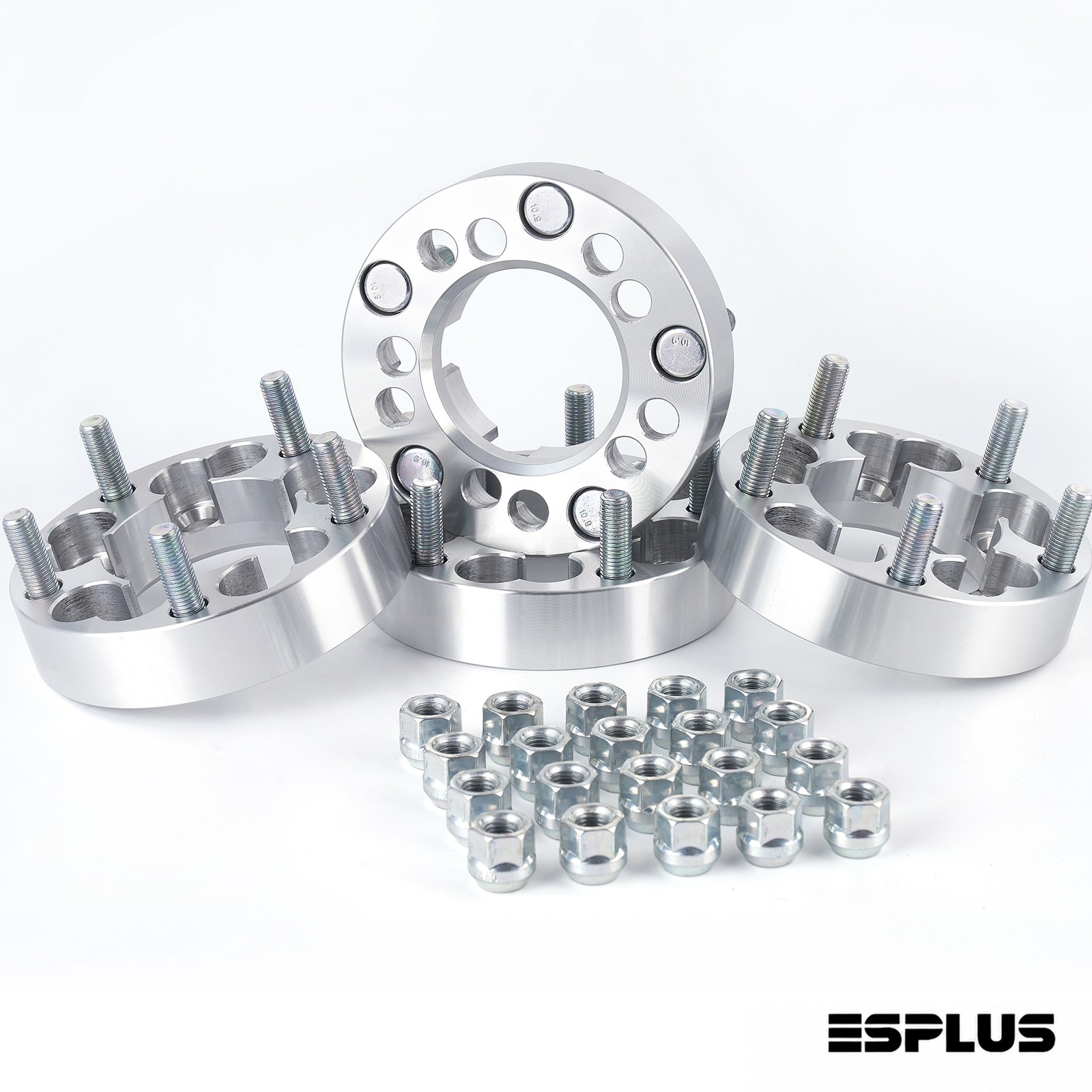

A 32mm Thick 5x115/5x120 to 5x112 Wheel Adapter Type · Double Drilled Adapter ×4 PCS/Set Bolt Pattern To Hub5x115 mm(4.5\") & 5x120 mm(4.75\")Bolt Pattern To Wheel5x112 mmAdapter Center Bore74.1 mmAdapter Thickness32 mm(1.25\")Adapter Outer Diameter150 mmStud Thread PitchM12x1.5Color and FinishChromeMaterial MadeT-6061 AluminumQuantity Per Order4 PcsCalifornia Prop 65 WarningWARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. + B M14x1.5 Open End Lug Nut Type · Open-End ×20 PCS/Set Thread PitchM14x1.5Lug Nut Height22 mmLug Nut DepthOpen-EndLug Nut Flange23 mm(0.9Inch)Lug Nut Seat60 Degree ConicalColor and FinishZincDrive3/4\"Tool Requirement3/4\" Hex SocketMaterial MadeSCM Carbon SteelQuantity Per Order20 PcsCalifornia Prop 65 WarningWARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Vehicle Compatibility Fits your car.
Verified, not guessed.

Dual Drilled bolt-pattern conversion adapters with M12x1.5 press-in studs; kitted with hub-side open lug nuts; made for hubs that use press-in studs and lug nuts, running wheels drilled for 5x112.

1Brands 2Vehicles 3Regions NA United States 1 Featured Tesla Referral United States · 2 models Bolt Pattern (PCD) Conv. New PCD Wheel Required5x112 HubCentric Support Use Same Thread Fastener New Thread Lug Nuts Req.M12x1.5 ModelRegionYear Range 3 US/MX 2017-Current Y MX/CA 2020-Current

Not sure? Message us ? we verify your exact year & model before you buy.

Product Display A closer look at the main part.

Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.

Product Display A closer look at the included hardware.

Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.

Check Before You Order Some fitment details only your vehicle can tell you.

The vehicle list above confirms your year, make and model. The points below are not part of that list — they depend on the wheels and hardware currently on your vehicle. Please verify them before ordering.

Check Before You Order The same applies to the included hardware.

These checks apply to the hardware included in this kit. They depend on what is currently fitted to your vehicle, not on the year, make and model above.

Why It\'s Built Different Performance you can torque down. 6061-T6 Aluminum, Both Faces Machined Flat

The plate is 6061-T6 aluminum with both mounting faces machined flat, so it clamps square between hub and wheel; an anodized surface shields the alloy against corrosion.

Grade 10.9 SCM Carbon Steel Press-In Studs

Each M12x1.5 wheel stud is SCM carbon steel in Grade 10.9, pressed into the plate so your wheel torques against fixed studs rather than loose hardware.

M12x1.5 Studs - Your Choice Of Wheel Nuts

The wheel side takes M12x1.5 lug nuts in the seat style your new wheels call for, so aftermarket alloy or steel wheels can both be run; wheel-side nuts are not included.

Hub-Side Open Lug Nuts In The Box

Open-end nuts with a 60 degree conical seat (a plain tapered cone), 22 mm height and 23 mm (0.9 in) flange bolt the plate to your factory studs with a 3/4 in hex socket; the nut count is in the title.

Dual Drilled Hub Face Covers Two Patterns

The hub side is double drilled, so one plate bolts up to either of two factory patterns while the nuts\' conical seats center it on your studs; this listing names its patterns in the title.

Wider Track And Caliper Clearance Headroom

Moving the wheel outboard adds track width and can open caliper clearance for aftermarket wheels; the gain equals the adapter thickness carried in this listing\'s title.

How to Install 3 steps to torque.

Follow the sequence below ? fitment is everything, so read Step 1 carefully.

01 Match Patterns, Dry Fit

Confirm the hub\'s factory bolt pattern matches this plate and that your new wheels are drilled 5x112, then dry-fit the bare adapter on the clean hub face.

Stop if any hole does not line up - a mismatch must be caught here, off the car. 02 Bolt Adapter To The Hub

Seat the included open-end nuts on the vehicle\'s own studs with a 3/4 in hex socket and tighten evenly in a star pattern until the adapter sits flat.

These nuts go on the vehicle studs, not on the adapter studs. 03 Mount Wheel, Torque Nuts

Hang the 5x112 wheel on the M12x1.5 studs, fit your own wheel-side nuts, and torque in a star pattern to the wheel maker\'s spec; recheck torque after the first drive.

Wheel-side nuts must match the wheel\'s seat; a mismatched seat can work loose. 01 / 4 4 photos in this guide — tap the arrows or dots to see every step Important Fitment Notice Know Before You Buy:

• factory wheels no longer fit
• fits hubs with press-in studs and lug nuts
• included open nuts are hub-side, sized to your vehicle\'s studs
• wheel-side lug nuts not included - buy M12x1.5 to match the adapter studs
• counts for this kit are in the title
• lug-centric - the conical seats do the centering, tighten evenly
• a wheel nut on the wrong seat can work loose and let the wheel leave the vehicle

\'s compatibility list matches by vehicle only. The wheel-side facts above — seat geometry, hole clearance, installed depth and usable thread engagement — still need your own check. Message us through before ordering if anything is unclear.

Why ESPLUS Clarity before checkout.

Wheel hardware is fit-critical. Our listing structure keeps the evidence a buyer needs in the order it should be checked.

Specification First

Thread, seat, dimensions, finish and quantity are organized for direct comparison.

Fitment in Two Layers

Vehicle compatibility and wheel-specific hardware checks are presented separately.

Component-Level Detail

Combination listings keep each component\'s quantity, gallery and technical data distinct.

Pre-Purchase Support

Message us through with your year, model, wheel and current hardware details.

Questions, answered Check the details that decide fit. Will this wheel hardware fit my exact vehicle?Start with the vehicle compatibility section, then read every fitment note. Compatibility data does not replace wheel-side checks such as seat type, hardware dimensions, hole clearance and usable thread engagement. How do I confirm thread pitch and seat type?Compare one piece of your existing hardware with the technical data and the Check Before You Order images. Match the thread on the vehicle side and the seat geometry required by the wheel. What should I verify on aftermarket wheels?Confirm the wheel\'s seat profile, fastener-hole diameter, tool clearance, installed depth and required engagement. These wheel-specific facts are not established by year, make and model alone. What torque specification should I use?Use the vehicle or wheel manufacturer\'s applicable specification and installation procedure. If the two sources differ or the application is modified, consult a qualified installer before installation. Where can I find current shipping and return terms?Use the Shipping, delivery and Returns sections of this listing as the current order-level terms. Those listing controls take priority over general informational text. Shipping · Returns · Fitment Order terms, kept current.

The controls attached to this listing are the source of truth for the transaction.

Shipping

Review the handling time, delivery estimate and available services shown on this listing. Tracking is provided through the order when available.

Returns

The return window, eligibility and conditions shown in this listing govern the order. Start any return request from the purchase record.

Fitment Responsibility

Confirm the listed thread, seat, dimensions, clearance and quantity before installation. When uncertain, message us through before ordering.
