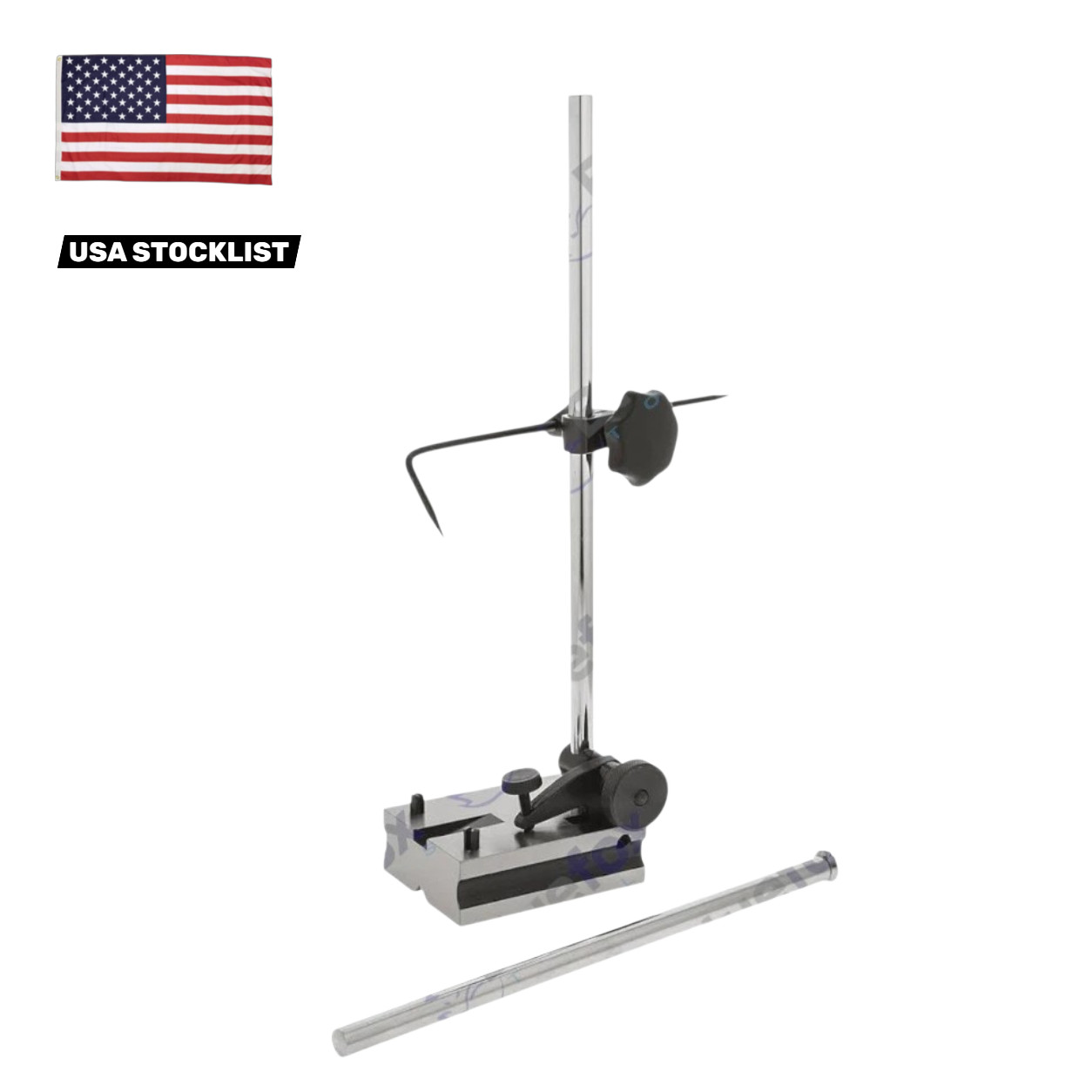

BLUEFOX TOOLS Universal Surface Gauge 9" & 12" | 225mm & 300mmDESCRIPTION
The BLUEFOX TOOLS Universal Surface Gauge is designed for precision marking, measurement and layout work in engineering and machine-shop applications.
This versatile gauge is supplied with 9" and 12" (225mm and 300mm) spindles, allowing flexibility for different measuring and marking requirements. The spindle can be adjusted to any angle, including positions above or below the base level.
The hardened and ground V-groove base provides support for cylindrical workpieces. A groove at the front of the base allows the spindle to be positioned above or below the base, enabling the scriber to function as both a depth gauge and height gauge.
KEY FEATURES
- Universal Surface Gauge with 9" & 12" spindles
- Spindle lengths: 9" / 225mm and 12" / 300mm
- Includes an extra 9" / 225mm spindle
- Hardened & ground V-groove base
- V-groove suitable for cylindrical work
- Spindle adjustable to any angle
- Spindle can be positioned above or below base level
- Front groove allows flexible spindle positioning
- Scriber can be used as a depth gauge and height gauge
- Suitable for precision layout and inspection work
ITEM SPECIFICATIONS🔧 Specification📋 Details🛠️ Product TypeUniversal Surface Gauge📏 Spindle Lengths9" & 12" / 225mm & 300mm➕ Extra Spindle9" / 225mm Included📐 Base Dimensions3-1/8" × 2-1/2" / 82mm × 63mm × 25mm🔩 Spindle Diameter3/8" / 9.5mm🔨 Base TypeHardened & Ground V-Groove↔️ Spindle AdjustmentAny Angle⬆️⬇️ Spindle PositionAbove or Below Base Level📊 Gauge FunctionsHeight Gauge & Depth Gauge🏷️ BrandBLUEFOX TOOLSAPPLICATIONS
- Precision marking and layout
- Height measurement
- Depth measurement
- Cylindrical workpiece inspection
- Engineering workshop applications
- Machine-shop layout work
- Toolroom and maintenance applications
- General machinist measurement tasks
PACKAGE INCLUDES
- 1 × Universal Surface Gauge Base
- 1 × 12" / 300mm Spindle
- 1 × 9" / 225mm Extra Spindle
IMPORTANT NOTE
Please check the dimensions and spindle configuration before purchasing to ensure this surface gauge meets your application requirements.
