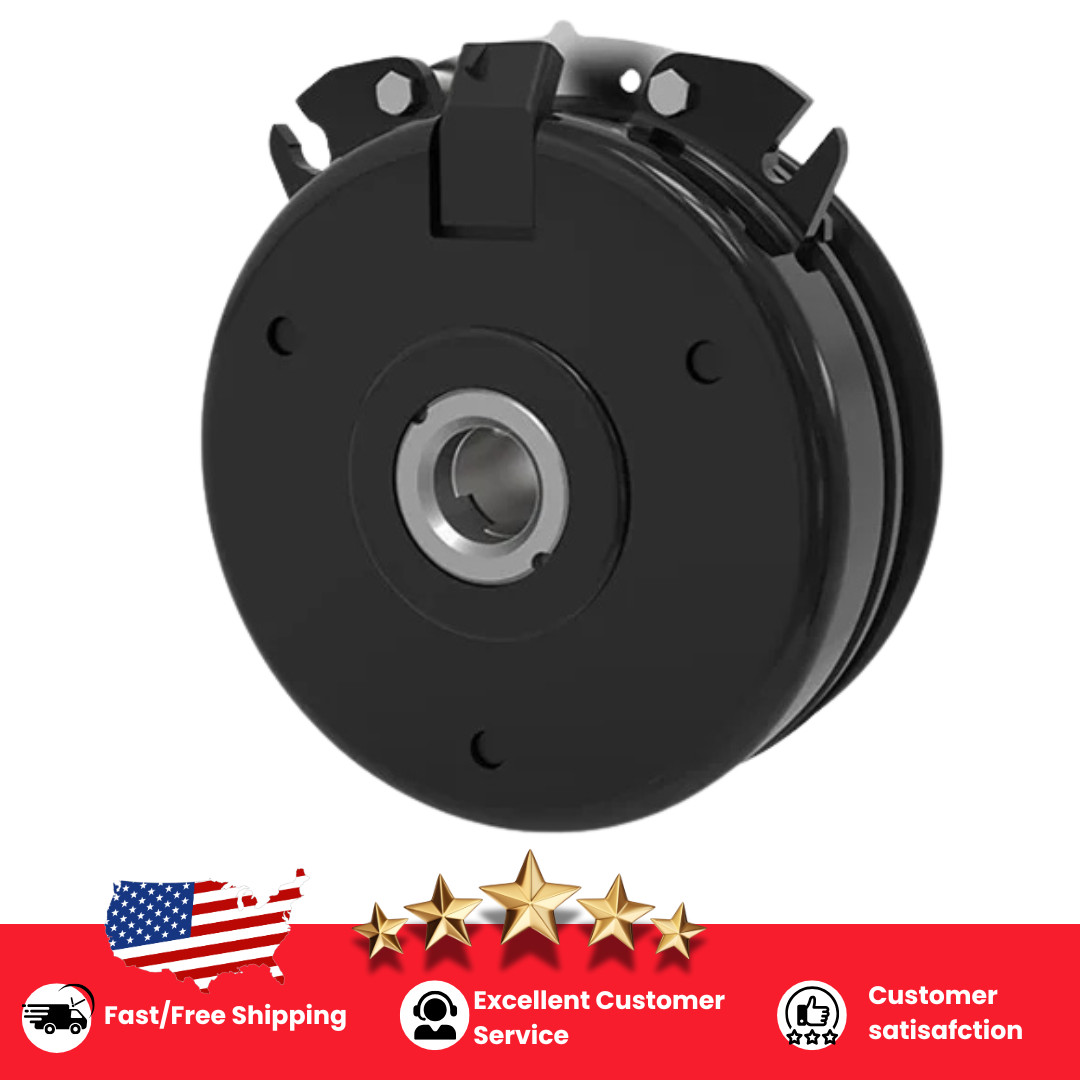

~Warner Electric PTO Clutch, 5228-51:
$494.95
WARNER 5228-51
The CMS 250 Series Commercial MagStop clutch/brakes are designed for heavy-duty mowers with up to 96\" decks and engines up to 37 HP featuring a rugged design for continuous duty and long life. These units are maintenance free, requiring no adjustment. All units are designed and assembled in the United States and are the original clutch/brakes supplied by the manufacturer of your mower or tractor.
Technical SpecificationsFunctionClutch / BrakeVoltage12 VDCRated Torque (lb-ft)250RotationCCWCurrent Draw (Amps)6.65Resistance (Ohms)1.81Connection TypeintegralPulley/Flange OD (in)7.24Bore Diameter (in)1.125MountingStandardWeight (lbs)16.75D-drive Number807-0078 included with this clutch/brakeCable Accessorynot includedShop with Confidence, Buy yours Today!!
