Product Description
Features:

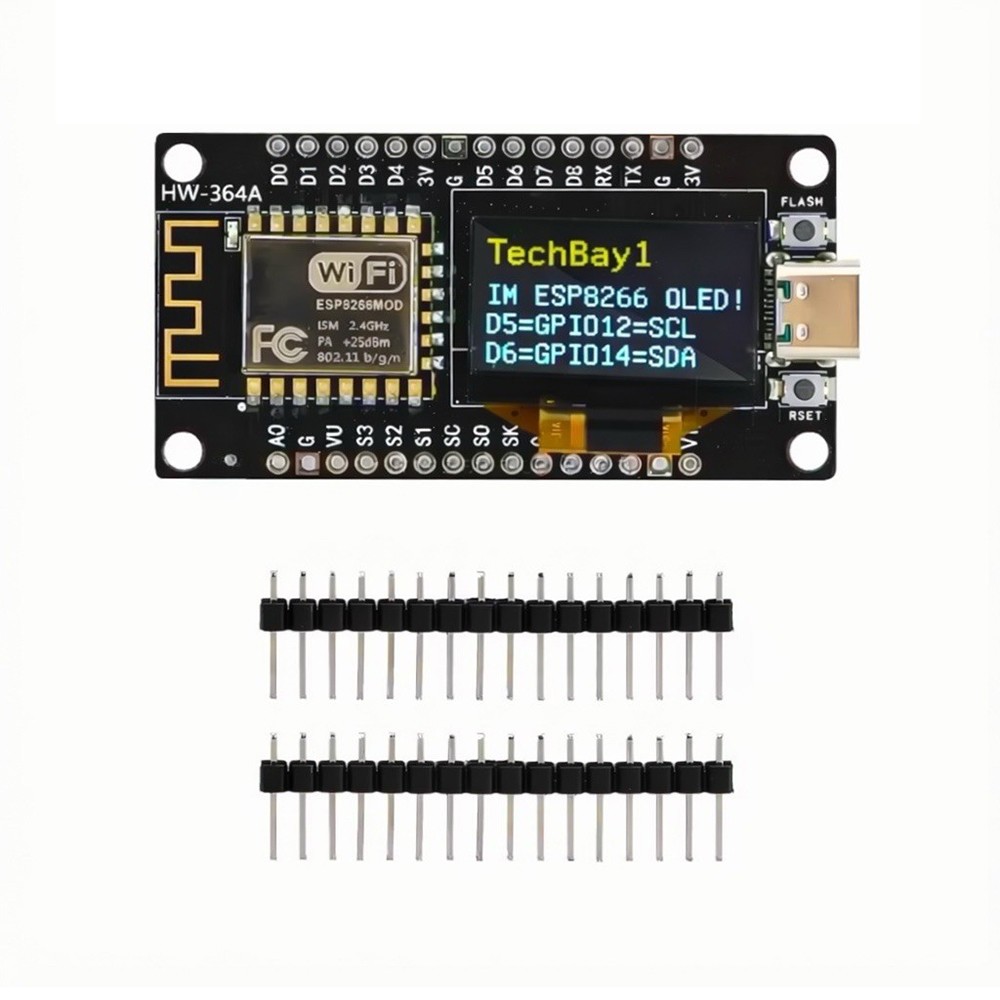

ESP8266 32-Bit WiFi Microcontroller
Built around the ESP8266 NodeMCU module featuring a Tensilica Xtensa LX106 32-bit RISC CPU, designed for reliable wireless IoT and embedded applications.
80 MHz Clock Speed
Efficient processing for:
• IoT devices
• Network monitoring
• Sensor data collection
• Status and debug displays
• Smart control projects
Integrated 0.96″ OLED Display
Onboard OLED screen eliminates the need for external wiring or breadboards:
• Size: 0.96 inch
• Resolution: 128 × 64
• Driver IC: SSD1306
• Interface: I²C
• Color: Yellow / Blue
• Self-emitting (no backlight, ultra-low power)
Pre-Wired OLED I²C Interface
OLED display is internally connected using I²C:
• SDA: GPIO14 (D5)
• SCL: GPIO12 (D6)
No soldering or jumper wires required.
Built-In 2.4 GHz WiFi
• IEEE 802.11 b/g/n
• Station & SoftAP modes
• Ideal for IoT dashboards, network status, and wireless data display
USB-to-Serial via CH340G
• Onboard USB-TTL converter
• Simple programming and power via USB
• Plug-and-play after CH340 driver installation
USB Type-C Interface
Features a modern USB-C port for:
• Reversible plug orientation
• Better durability
• Compatibility with modern laptops and chargers
• Stable data transfer during programming
Memory Configuration
• Flash memory: 4 MB
• SRAM: 64 KB
Supports web servers, MQTT, OTA updates, and data display applications.
Wide Power Input Support
• Logic voltage: 3.3 V
• Input voltage: 7–12 V
• USB powered or external supply
I/O Capability
• 16 Digital I/O pins
• 1 Analog input (ADC)
• SPI, I²C, UART interfaces
• Suitable for sensors, displays, relays, and control modules
Compact & Breadboard-Friendly Design
• Board size: approx. 2.44”x1.22”
• Clearly labeled pins
• Small form factor for embedded installations
Arduino IDE Compatible
Fully programmable using:
• Arduino IDE (ESP8266 core)
• Large library and example ecosystem
Typical Applications
• Network connection status display
• IoT monitoring dashboards
• Weather stations
• Debugging output screens
• Power and system status indicators
• Clocks, counters, and information panels
Package Includes
• 1 × ESP8266 0.96″ OLED Development Board
• 2 × Male header pin strip
