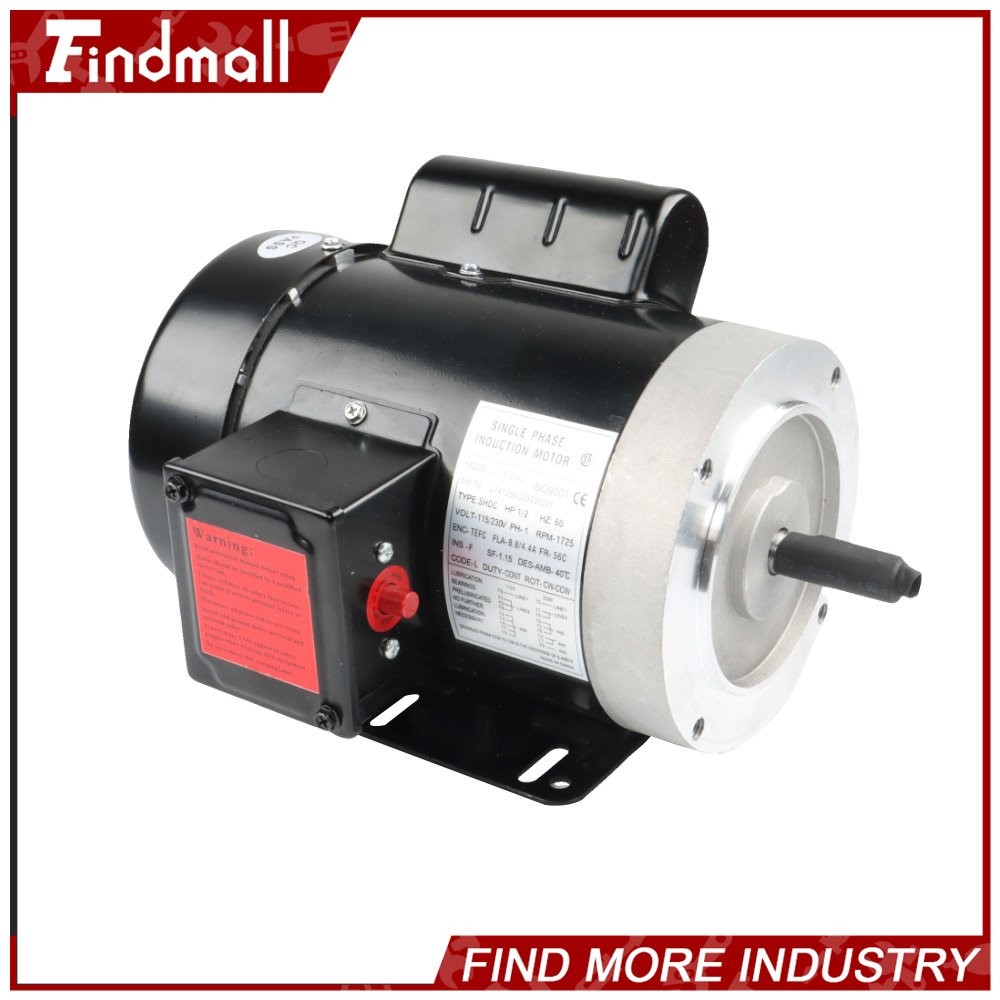

Specification：1/2HP 1 Phase 1725 RPM 56C 1/2 HP/2 HP/3.7 HP/5 HP/3 HP 1 Phase Electric Motor / 3 Phase Electric Motor
Specification：
1/2HP 1 Phase 1725 RPM 56C
Ac frequency rating：60 hz
Nominal rated input voltage：115/230 v
Rated load (hp)：1/2
Special motor construction：spindle motor
Current type：ac
Shaft diameter：５/8 in
Enclosure type：tefc (totally enclosed fan cooled)
Ac phase：single phase
Insulation class：f (max 311°f)
Pole ：4
Amps： 8.8/4.4a
Ac motor type：induction/asynchronous
Rotational speed：1725rpm
Ip rating：ip55
Shaft length：1.88in
Protector：yes
Housing material：rolled steel shell
Model： general electric motor
Synchronous speed:1800
Iec frame size：56c
Gross weight：30.97 lb
2HP SPL 1 Phase 3450 RPM 56
Open Drip Proof (ODP) Enclosure
Single Phase
2 HP SPL
3450 RPM
60hz
120/240 Volts
AMB 40 °C
Frame: 56
Duty: Cont. Compressor
Service Factor: 1.0
Full Load Amps: 15/7.5
INS. CL: F
Non-Reversible, CCW Rotation Facing Shaft
Thermally Protected
Overall Length W/O Shaft: 9.75"
Overall Length With Shaft: 12.3"
Overall Height: 8.5"
Overall Width: 6.35"
Shaft Diameter: 5/8"
Shaft Length: 1.88"
Standard Size Keyway: 3/16"
2HP 1 Phase 3450 RPM 56C
Shaft Diameter: 5/8"
Shaft Length: 1.88"
IEC Frame Size: 56C
Base RPM: 3450 RPM
Enclosure Type: TEFC
Voltage: 115/230V
Amps: 18.2/9.1A
IP Rating: IP55
3 HP SPL 1 Phase 3450 RPM 56
Type: SPL
Input: 2.2 kW
Horsepower: 3 HP SPL
Voltage: 115/230V
Phase: Single Phase, 2 Pole
Amperage: 22/11A
Rated Speed: 3450 RPM
Frequency: 60 Hz
Synchronous Speed: 3600 RPM
Frame: 56 Frame
Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft
Shaft Length: 1.875 in / 4.8 cm
Rotation: CCW
Service Factor: 1
Efficiency: 80%
Insulation Class: F
Mounting Type: Base-Mounted
Enclosure Type: ODP (Open Drip-Proof)
IP Rating: IP 23
Current Type: AC
Single Phase Electric Motor
Sturdy Steel Construction
Overload Thermal Protector
Fast Heat Dissipation
ODP for Dry Environments
3.7 HP 1 Phase 3450 RPM 56
Condition: 100% Brand New
Horsepower: 3.7 HP
Voltage: 230V
Amperage: 17.2 A
Phase: One/ Single Phase
Rated Speed: 3450 RPM
Frequency: 60 Hz
Synchronous Speed: 3600 RPM
Frame: 56 Frame
Shaft Diameter: 5/8" / 1.6 cm Keyed Shaft
Shaft Length: 4.8 cm / 1.88 in
Overall Length W/O Shaft: Approx 27cm / 10.63in
Overall Height: Approx 21.9cm / 8.62in
Overall Width: Approx 16.8cm / 6.62in
Standard Size Keyway: 3/16"
Service Factor: 1
Insulation Class: F
IP Rating: IP23
Rotation: CCW (Non-Reversible)
Mounting Type: Base-Mounted
Enclosure Type: ODP (Open Drip-Proof)
AC Motor Type: Induction/Asynchronous
Current Type: AC
AMB:104℉ / 40℃
2 HP 3 Phase 1800 RPM 56C
2 Horsepower
3 Phase
TEFC Fully Enclosed
56C Frame
230/460 Volt
1800 RPM
Fan Cooled
Class F Insulation
C-Face
Removable Base
Premium Efficiency / Inverter Rated
Worldwide Electric Brand
Shaft Length: Approximately 1 7/8"
Keyed 5/8" Diameter Shaft
Current: AC
Full Load Amps: 7.2/3.6A
60 HZ
5 HP 3 Phase 1800 RPM 184T
5 Horsepower
3 Phase
TEFC / IP55 Fully Enclosed
184T Frame
Service Factor 1.15
Class F Insulation
104 lbs
230/460 Volt
1800 RPM (Full Load Speed 1755)
Fan Cooled
Class F Insulation
Shaft Length: Approximately 2 7/8"
Keyed 1 1/8" Diameter Shaft
Current: AC
Full Load Amps: 13.42/6.71A
60 HZ (Suitable for 50 HZ with 1.0 SF)
Rotation: Bi-Directional
Shaft Material: 1045 Carbon Steel
Nema Design B
Max Temp: 40 Degrees C
5 HP 1 Phase 3450 RPM 56HZ
Open Drip Proof (ODP)
Single Phase
5 HP
3450 RPM
60hz
230 Volts
AMB 40 °C
Frame: 56 HZ/143T
Duty: Cont. Compressor
Service Factor: 1.0
Full Load Amps: 21.0A
INS. CL: F
Non-reversible, CCW Rotation Facing Shaft
Thermally Protected
Overall Length W/O Shaft: 12.5"
Overall Length With Shaft: 14.85"
Overall Height: 8.65"
Overall Width: 6.6"
Shaft Diameter: 7/8"
Shaft Length: 2.25"
Standard Size Keyway: 3/16"
Item SpecificsCountry of Origin United StatesBrand findmallMPN 652782Rated Load (HP) 5 ,2, 3, 3.7, 1/2AC Phase 3Phase/1PhaseBase RPM 1725/1800/3450/ RPMManufacturer Warranty 1 Year
