1/2" NPT 24V AC Electric Solenoid Valve Plastic Potable Drinking Water Air N21E For Sale

N21E-1/2-CC-12VDC-ES

Valves4projects — supplying high quality valves since2004. Over 50,000 valve orders shipped.

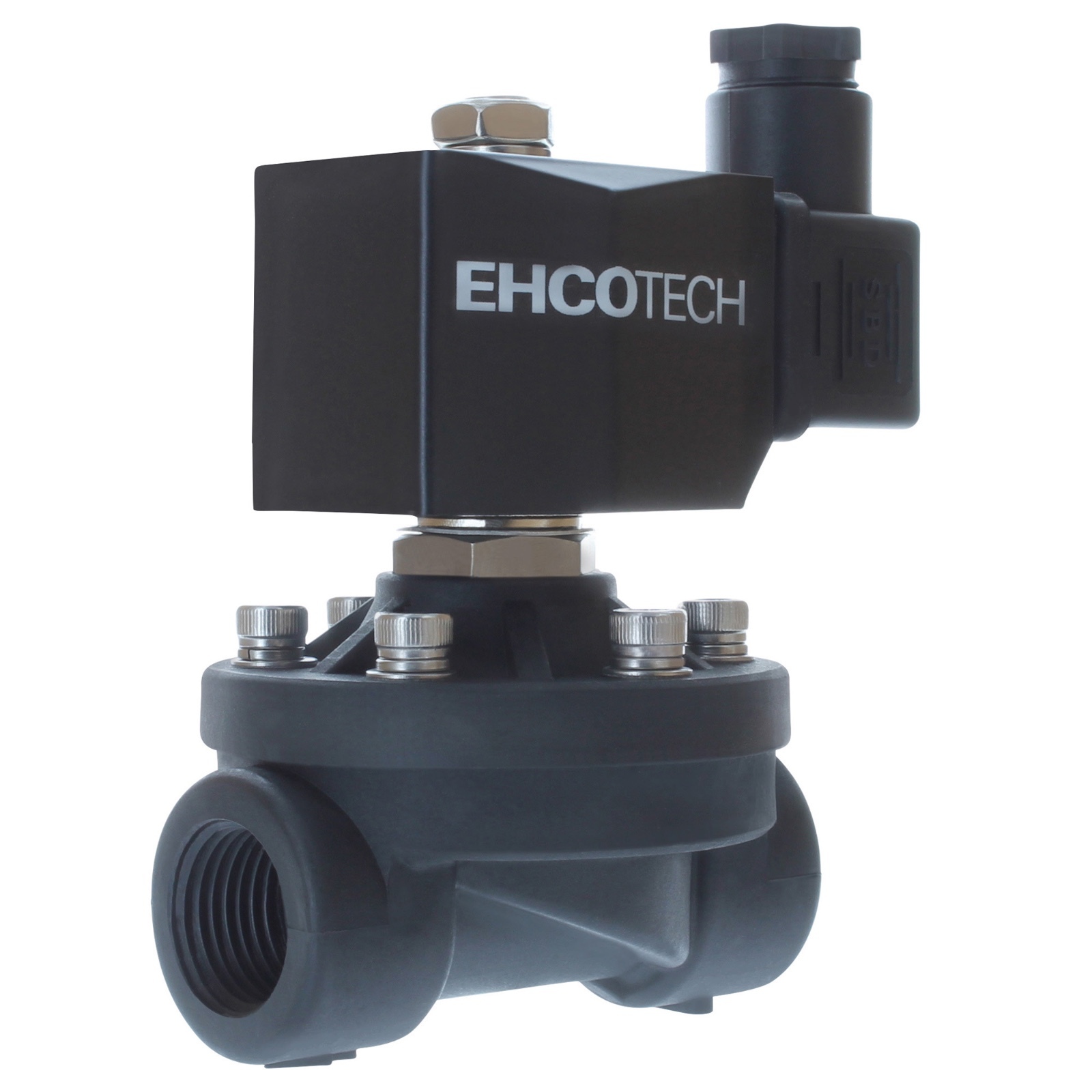

EHCOTECH N21E-1/2-CC-24VAC-ES SOLENOID VALVE

1/2" NPT | 24-Volt ACEHCO-Smart Coil | BASF Ultramid® PA 66 Body / EPDM Diaphragm |Normally Closed | 0 - 100 psi

EHCOTECH N21-Series solenoid valves are an affortable butamazingly robust and dependable choice for a variety of water,air, and other general purpose liquid applications. Media beingcontrolled must be compatible with Nylon 66, EPDM rubber, andStainless Steel (300 and 400 series). The N21-series valves aresemi-direct acting, making them suitable for many low differentialpressure applications where traditional, pilot operated, solenoidvalves may not perform reliably.The N21-Series uses an EHCO-Smart coil with an internal“hit-and-hold” circuitry. The EHCO-Smart coil drastically dropsthe “hold” voltage and amperage to maintain a lower coiltemperature for long coil life.
General

• 2-way, Normally Closed (energize toopen, de-energize to close), unidirectional

• Semi-Direct Acting valve (no minimum pressurerequirement and great low pressure fow caracteristics)

• Fast acting


Port / Orifice Size

• 1/2" NPT (female) inlet / outletports
• Outer thread diameter / TPI (threads perinch): 0.840 inches / 14 TPI
• Internal orifice diameter: 1/2" or 15.0 mm
• Cv value: 4.8


Pressure and Temperature

• 0 to 100 psi or Vacuum

• Max media temp: 175° F (80° C)

Suitable Media

• Water (including potable water)

• Air
• Inert Gases
• Other media compatible with valve materials


Coil / Electrical

• 24-Volt AC
• 400mA Holding Current

• In-rush Current: 0.9A

• DIN Connector coil (DIN 43650)

• Allows installer to run their own wires orcable into the included connector
• Screw-down terminals inside the connectorfor wire connections
• DIN connector housing can be pointed up,down, left, or right
• Coil IP rating: 65


• NOTE: We also carry this valve in 12VDC,24VDC, 110/115/120VAC and 220/240VAC voltages in our store


Valve Materials

• Valve body: BASF Ultramid® PA 66(Nylon)

• Plunger and plunger guide tube: StainlessSteel (300 and 400 series)

• Diaphragm: EPDM

Dimensions

• Height: 4.25"
• Width: 2-5/8"

• Length: 3"

Store Policies

• If you are not completelysatisfied, please contact us and we will make it right!
• 12 month warranty
