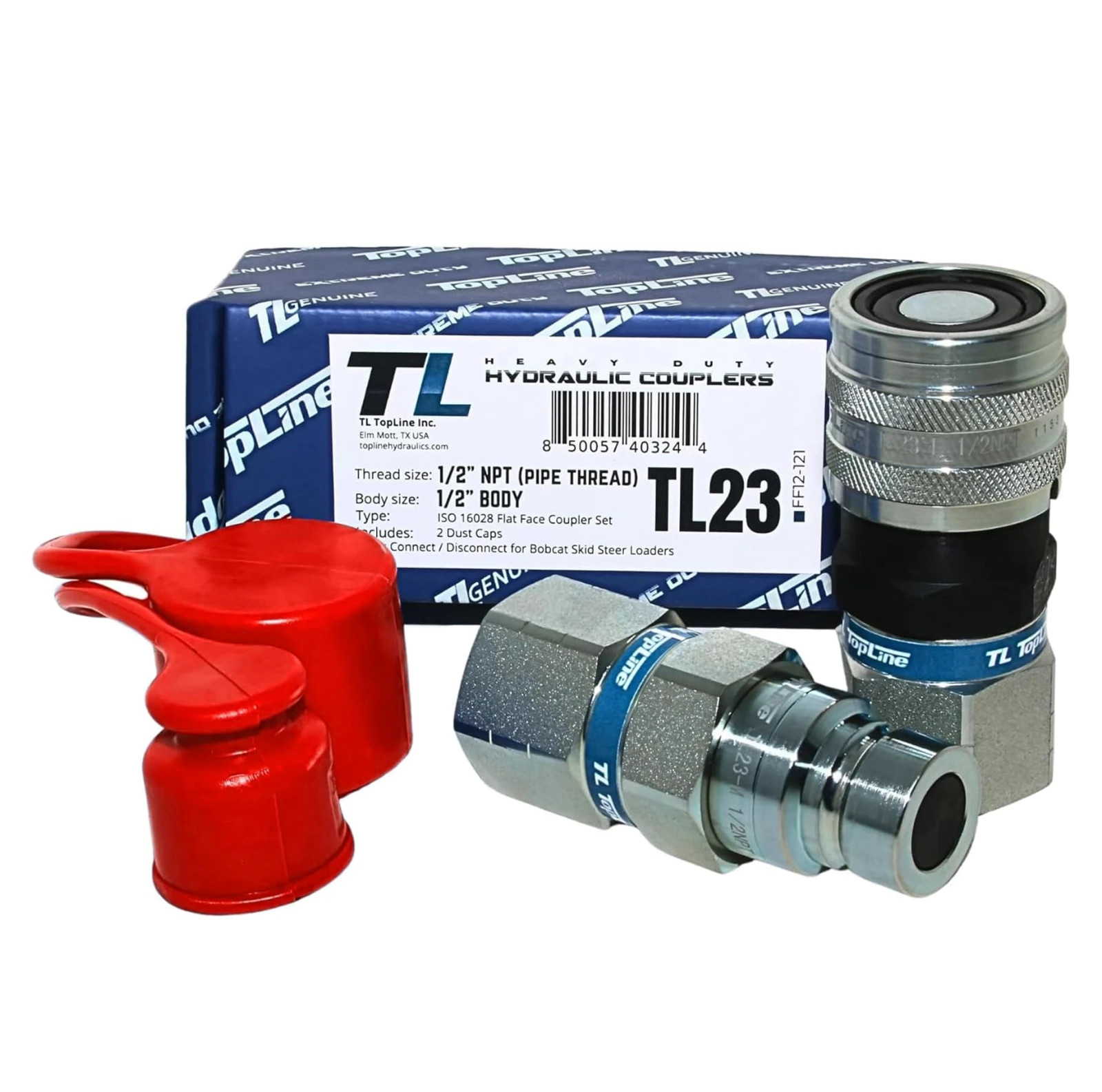

1/2" NPT Thread 1/2 Flat Face Hydraulic Quick Coupler Set Bobcat Skid Steer TL23 For Sale

🗸 TL23 1/2" NPT THREAD -- 1/2" BODY SIZE, flat face hydraulic coupler to fit Bobcat and other skid steers. Rated for over 5076 PSI. Built for heavy-duty use.

🗸 QUICK & SECURE CONNECTION: Push-connect locking sleeve ensures easy, reliable coupling with no air inclusion or leaks.

🗸 DURABLE & CORROSION-RESISTANT: Zinc-plated for long-lasting protection and exceeds ISO 16028 standards.

🗸 LESS FLUID LOSS, MORE EFFICIENCY: Flat face design minimizes hydraulic fluid loss during disconnection, improving system performance.

🗸 EFFORTLESS USE – The push-connect locking sleeve and heavy knurled sleeves ensure a secure, non-slip grip, allowing for quick and easy connections and disconnections in the field, even with gloved Number:

TL23

Coupler Body Size:

1/2"

Coupler Thread Size:

1/2" NPT

Thread Inner Diameter:

0.77”

Thread Dash Number:

-08

Coupler Material Type:

Steel

Coupler Plating Type:

Corrosion-resistant trivalent zinc

Q: What makes the TL23 Hydraulic Quick Connect Coupler a superior choice?A: The TL23 coupler is built for high-performance use with a heavy-duty steel body and a working pressure rating of over 5,000 PSI. It's engineered to withstand tough environments while delivering consistent, leak-free performance.
Q: How does the flat face design improve performance?A: The flat face design significantly reduces fluid loss during connection and disconnection while minimizing the introduction of contaminants. This enhances hydraulic system longevity and reduces downtime due to maintenance.
Q: Is the TL23 compatible with my skid steer or equipment?A: The TL23 is compatible with many skid steers and attachments from Bobcat, John Deere, CAT, Kubota, CASE, JCB, and more. It features a standard 1/2" NPT thread and 1/2" body size for broad compatibility.
Q: How does the flat face design improve performance?A: Yes, the TL23 includes protective dust caps for both male and female couplers. These caps help prevent dirt and debris from entering the hydraulic system when the couplers are not in use.
Q: Can the TL23 be used as a replacement for existing couplers?A: Absolutely. The TL23 is designed as a direct replacement for many standard flat face hydraulic couplers used on skid steers and other hydraulic machinery. Its standardized sizing allows for a simple, straightforward installation. TL23TL20TL21TL22TL24

Interchangeable Part Numbers:

Manufacturer

Male

Female

Dixon HT Series

HT4F4

4HTF4

DNP PLT4 Series

FF-HPG-08-08N-NPT

FF-HPG-08-08C-NPT

Eaton Aeroquip

FD89-1002-08-08

FD89-1001-08-08

Faster FFH Series

FFH08 12NPT M

FFH08 12NPT F

Holmbury

FIMC12A NPT 1/2"M

FIMC12A NPT 1/2"F

Parker FE Series

FEM-502-8FP

FEM-501-8FP

Safeway

FFE491-4

FFE495-4

Snap Tite

74N8-8F

74C8-8F

Stucchi FIRG Series

800801007

800801006

Tomco

EP4-26

Individual couplers:

1/2" NPT Female Thread (Male Nipple Only) TL23-M

1/2" NPT Female Thread (Female Coupling Only) TL23-F

More Thread Sizes for 1/2" Body Flat Face Coupler:

3/8” NPT Female Thread (Set) TL191/2” NPT Female Thread (Set) TL233/4” NPT Female Thread (Set) TL30
1/2” SAE Female Thread (Set) TL925/8” SAE Female Thread (Set) TL21
3/4” SAE Female Thread (Set) TL22
1/2” BSP Female Thread (Set) TL99
1/2 (#8)JICMale Thread(Set) TL20-With Bulkhead fitting5/8 (#10)JICMale Thread(Set) TL24-With Bulkhead fitting3/4 (#12)JIC Male Thread (Set) TL25 -With Bulkhead fitting
5/8” ORFS Male Thread (Set) TL26-With Bulkhead fitting
3/4” ORFS Male Thread (Set) TL104-With Bulkhead fitting

1/2" Body Flat Face Coupler (Connect Under Pressure)

1/2” NPT Female Thread (Male) TL40- Connect under pressure3/4" NPTFemale Thread (Male) TL88- Connect under pressure1/2” SAE Female Thread (Set)TL87- Connect under pressure
5/8" SAE Female Thread (Male) TL85- Connect under pressure
3/4” SAE Female Thread (Male) TL86- Connect under pressure
3/4” SAE Female Thread (Set)TL86-MF- Connect under pressure

Flat Face to Agricultural Style Adapters:

Flat Face to Male Ag Couplers TL46Flat Face to Female Ag Couplers TL106
Flat Face to Male & Female Ag Coupler TL36
