12V 24V SECOP BD1.4F Micro Refrigeration Compressor Fridge Freezer Marine R134a For Sale

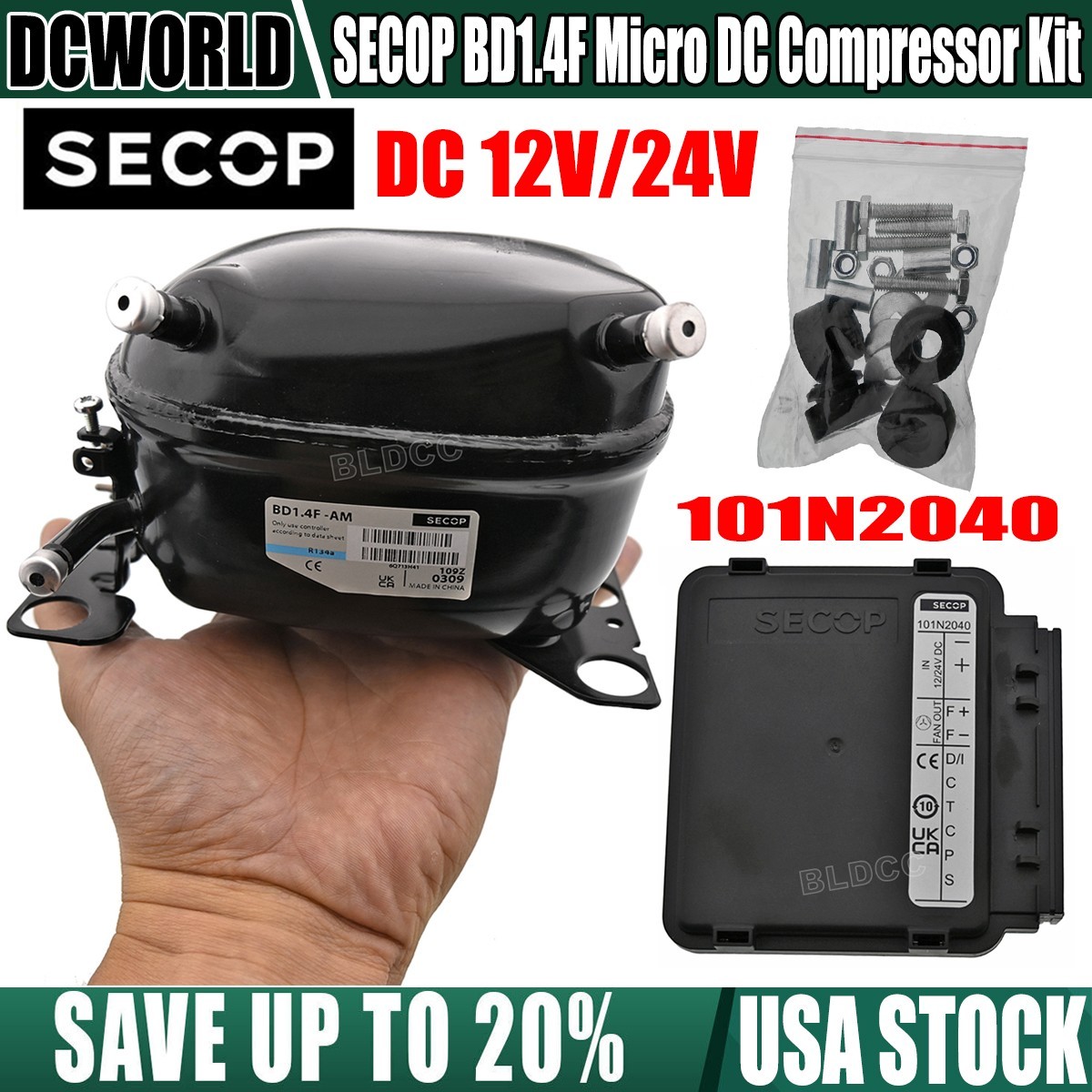

12V 24V SECOP BD1.4F Micro Refrigeration Compressor Fridge Freezer Marine R134aSecop Micro Compressor BD1.4F and Electronic Controller 101N2040 Bundle Package
Here for saleis SECOP DC12V/24V BD1.4F Micro Compressor W/ 101N2040 Drive Controller, we also provide4PCS Compressor Rubber Mounts and1SetMatching Bolts for thecompressor.About the SECOP BD 1.4F Micro Compressor:
This is SECOP DC12V/24V BD1.4F micro compressor, the Secop BD1.4F-AM is an ultra-compact DC compressor engineered specifically for the automotive and portable cooling markets. It combines reduced size and weight with high efficiency, making it the premier choice for modern mobile refrigeration.Key Features & Advantages:
Ultra-Compact & Light: Weighs just ~2.3 kg and is 60% smaller than standard mobile compressors, maximizing storage space.
High Efficiency: Features Variable Speed Drive technology to minimize power consumption—critical for battery-powered systems.
Automotive Grade: Designed for 12/24V DC operation with excellent vibration resistance and low noise levels.
Future-Proof: Compatible with R134a and R1234yf low-GWP refrigerants.Primary Applications:
Automotive: Integrated fridges in passenger cars and trucks (OEM).
Portable Cooling: High-end portable boxes and camping coolers.
Medical: Temperature-controlled transport boxes for vaccines and medicine.
Leisure: Compact marine fridges and RV cooling solutions.
Compatible Electronic Drive Unit Models:
The following models are generally compatible with the compressor: 101N1010; 101N2000; 101N2002; 101N2020; 101N2030; 101N2040; 101N2050; 101N2100; 101N2130; 101N2131; 101N2154; 101N2156; 101N2170; 101N2500; 101N2530; 101N2600; 101N2740; 101N5200.
⚠️ Note on Compatibility: While the above models are generally usable, different drive units are designed for different operating environments and specific application requirements. Please consult the official manufacturer's manual for precise details and suitability.About the SECOP 101N2040 Controller:
This isSECOP 101N2040 DC12V/24V Electronic Controller , it's mainly for SECOP BD1.4F series compressors.
Product Parameters:
Brand: SECOP
Model Number: 101N2040
Voltage Range: 9.6V DC to 33V DC
Output Power: Max approx. 100W
Continuous Current: Depends on the compressor load and operating conditions
Environment and Protection: Max Ambient Temp.55°C
Protection Functions: Built-in ECU over-temperature protection (shuts down at 100°C PCB temp)
Reverse Polarity Prot: Supports power reverse polarity protection
Additional Features: Fan Output,12V DC, 6Wavg continuous power
Communication Interface: Supports LIN / One Wire interface (Tool4Cool® software connection)
Package Included:
* 1PCS SECOPBD1.4F-AM Compressor.
* 1PCS SECOP 101N2040 Controller. * 4PCS Compressor Rubber Mounts.
* 1 SetMatching Bolts.About Shipping:

•
