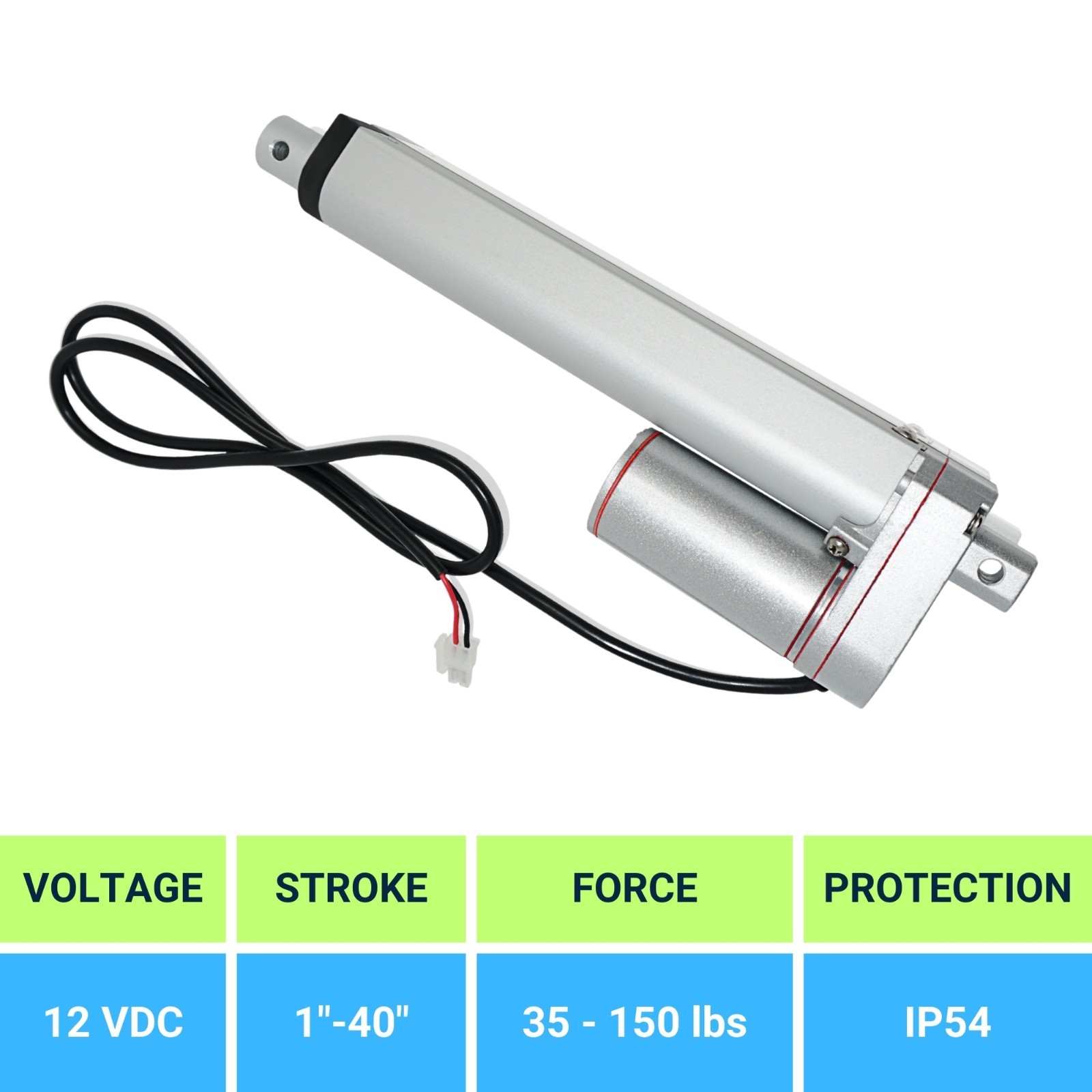

12V Mini Linear Actuator (1"-40" stroke, 35-150 lbs. force) - PA-14 model

12VDC Mini Linear Actuator – 1”-40” stroke – 35-150lbs – PA-14 model -Progressive Automations

The PA-14 Mini Linear Actuator utilizes a fundamental linear motion design in a compact body. The low current, medium force PA-14 is ideal for home automation, cabinetry, agricultural, and robotics.

Specifications:

• Voltage: 12VDC
• Stroke size: 1"-40"
• Load Capacity: 35-150 lbs.
• Speed: 0.37”/sec
• Type of duty: 25%
• Operational temp:-5ºC to 65ºC (23ºF to 149ºF) (Standard), -25ºC to 65ºC (-13ºF to 149ºF) (Customizable)
• Protection class: IP54
• Low noise: db<45 (A)
• Certification: CE
• Built-in limit switches, non-adjustable
• Fully Retracted Length: 4.13 inches + stroke size
• Fully Extended Length: 4.13 inches + stroke size + stroke size

Why use the Progressive brand?

• 18-month warranty on all products
• Same day shipping
• High quality standards & low prices
• Customize actuators to better suit your needs
• Large discounts for large purchases & long-term contracts
• Engineering support to all customers
• Excellent customer service

  Our motion control systems and accessories can be combined with this model to provide you with an automation solution. We will ship your order same day if placed before 3PM PST which comes with our extensive 18-month warranty. Get in contact with us if you want to learn more about our custom linear actuator process or if you have any questions regarding compatibility.
