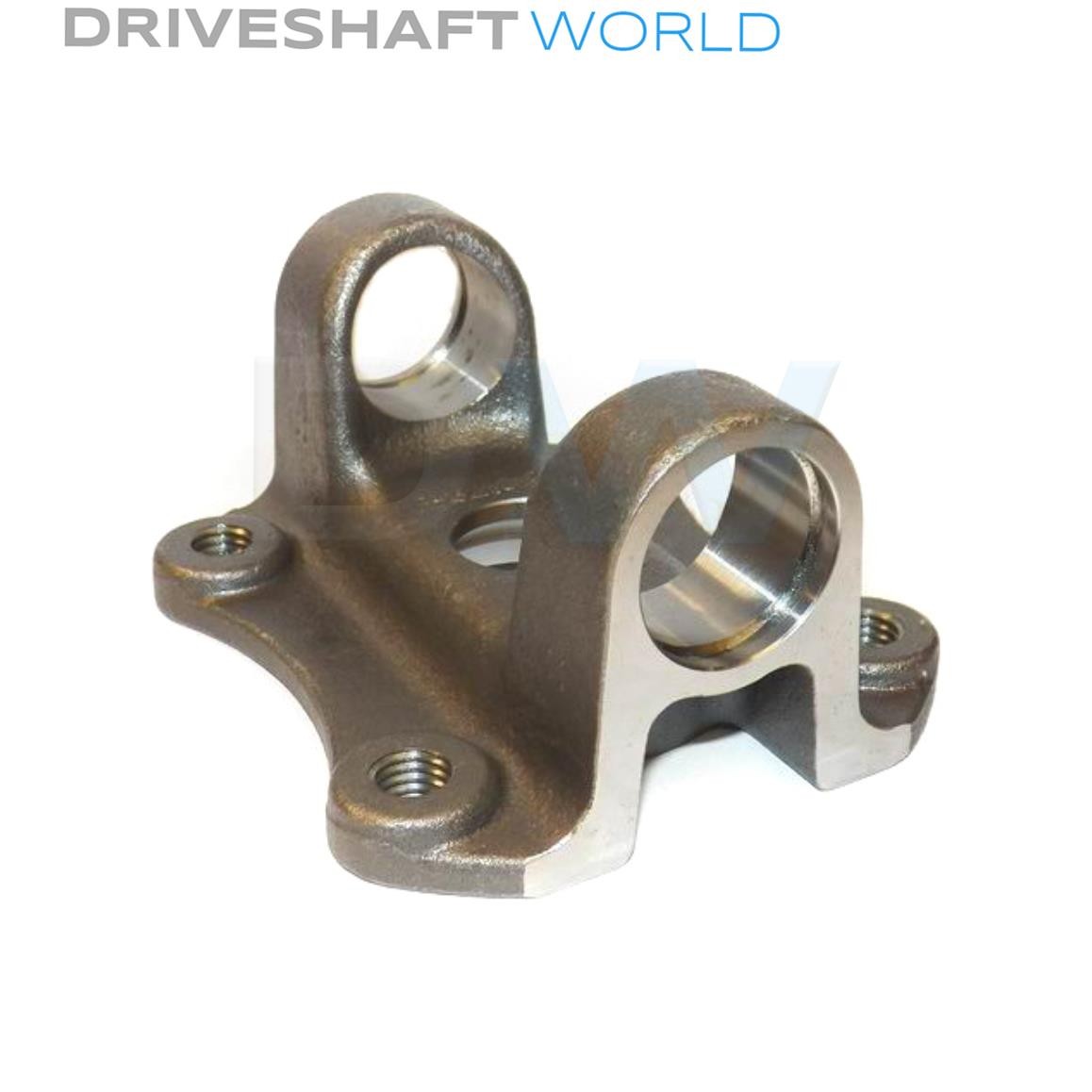

THIS A 4-bolt FLANGE YOKE FOR VARIOUS FORD F250,F350+ REAR DRIVESHAFT APPLICATIONS -not all apply.
COMMONLY SEEN USED ON THE TRANSMISSION or TRANSFER CASE END OF THE REAR DRIVESHAFT. THE BOLT HOLES ARE THREADED.
FLANGE MATING SURFACE HAS A FEMALE PILOT DIAMETER OF 2.680″. REQUIRES A 1410 SERIES UNIVERSAL JOINT.
**TIP: DUE TO THE NUMEROUS FORD MODEL CONFIGURATIONS – ALWAYS CHECK THE SPECS OF THE OLD FLANGE.**
Flange Yoke SpecificationsGenuine Neapco Rear Driveshaft Flange Yoke - N3-2-1709
General Design TypeSnap Ring DesignU-Joint Series
1410Universal Joint Retaining Width4.438Universal Joint Bearing Diameter(D)1.188Flange Diameter(A)0.000Bolt Circle Diameter(B)4.250Horizontal Distance between Bolt Holes (center to center )(X)3.005Vertical Distance between Bolt Holes (center to center)(Y)3.005Bolt Hole Diameter
M12x1.75Bolt Hole Quantity
4Pilot Diameter (M-Male, F-Female)(C)2.680FCenterline of Joint to Flange Face(G)1.625
Compatible with the following U-Joint Kits: 5-160X / 5-1410X
Spicer Reference Part Number: 3-2-1709
Neapco Reference Number: N3-2-1709
OE Reference Number: F81Z-4865-CA / F81Z4865CA / F81A-4865-CA / F81A4865CA
