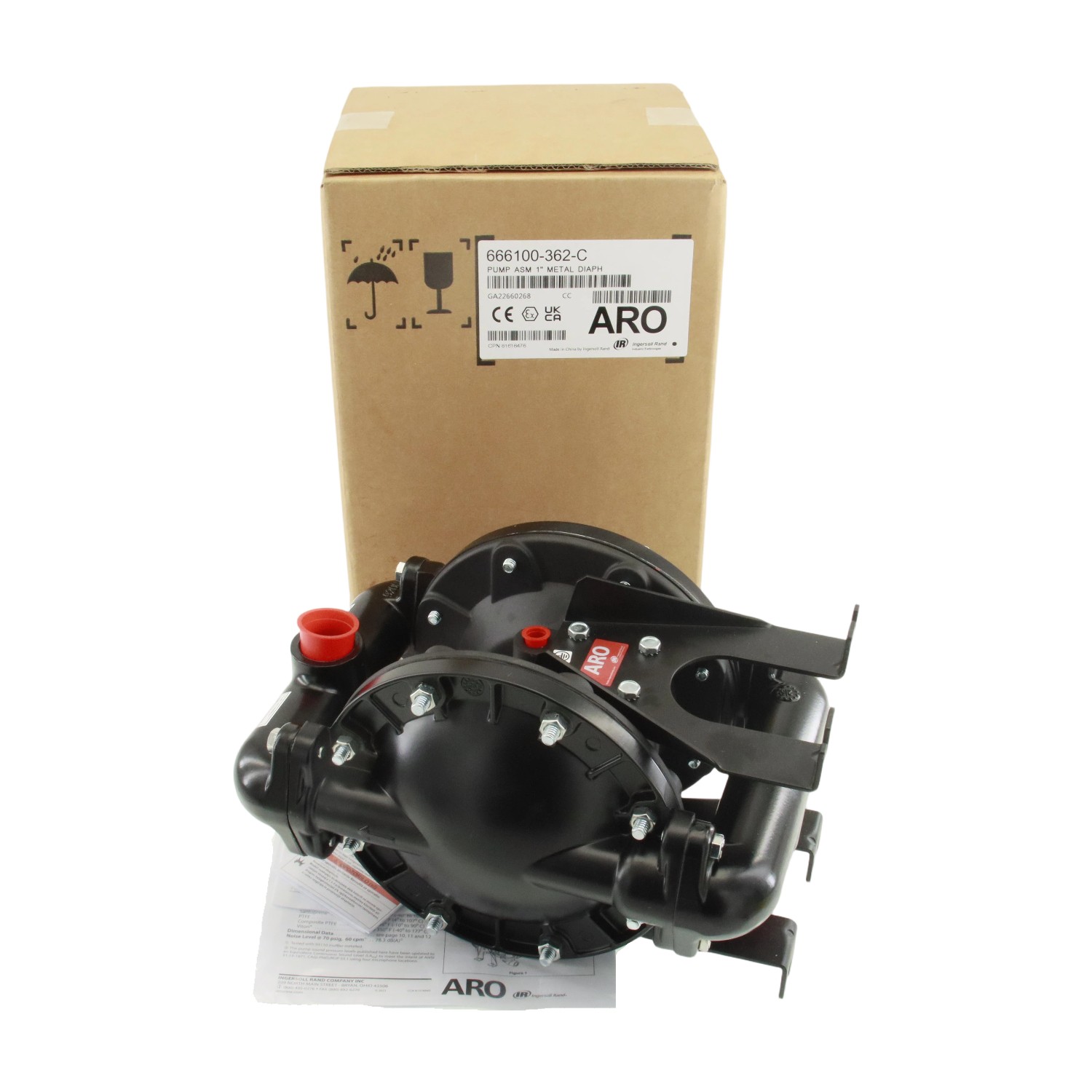

1PCS NEW ARO Diaphragm Pump 666100-362-C:
$635.99
666100-362-C, 666100362C
Max. Temperature: 150°F / 65.5°C
Max. Flow (GPM): 35 GPM / 132 L/min
Air Flow Rate: 38 CFM / 1.08 m³/min
Max. Operating Pressure: 120 PSI / 8.3 Bar
Inlet/Outlet Size: 1 inch (NPT thread, Fine)
Air Inlet Size: 1/4 inch FNPT
Self-Priming Dry: 10 ft / 3 meters
Self-Priming Wet: 15 ft / 4.5 meters
Max. Diameter of Solids: 1-1/8 inch / 28.6 mm
Diaphragm Material: Nitrile
Ball Material: Acetal
Valve Type: Ball Valve
Check Seat Material: Polypropylene
Manifold Connection: Single
Connection Style: NPT Thread
Thickness: 1/4 inch / 6.35 mm
Agency Compliance: ATEX, CE, RoHS, REACH
Fit For Sprayers, Ink Circulation Systems and so on machines with ARO Pneumatic Diaphragm Pump 666100-362-C
