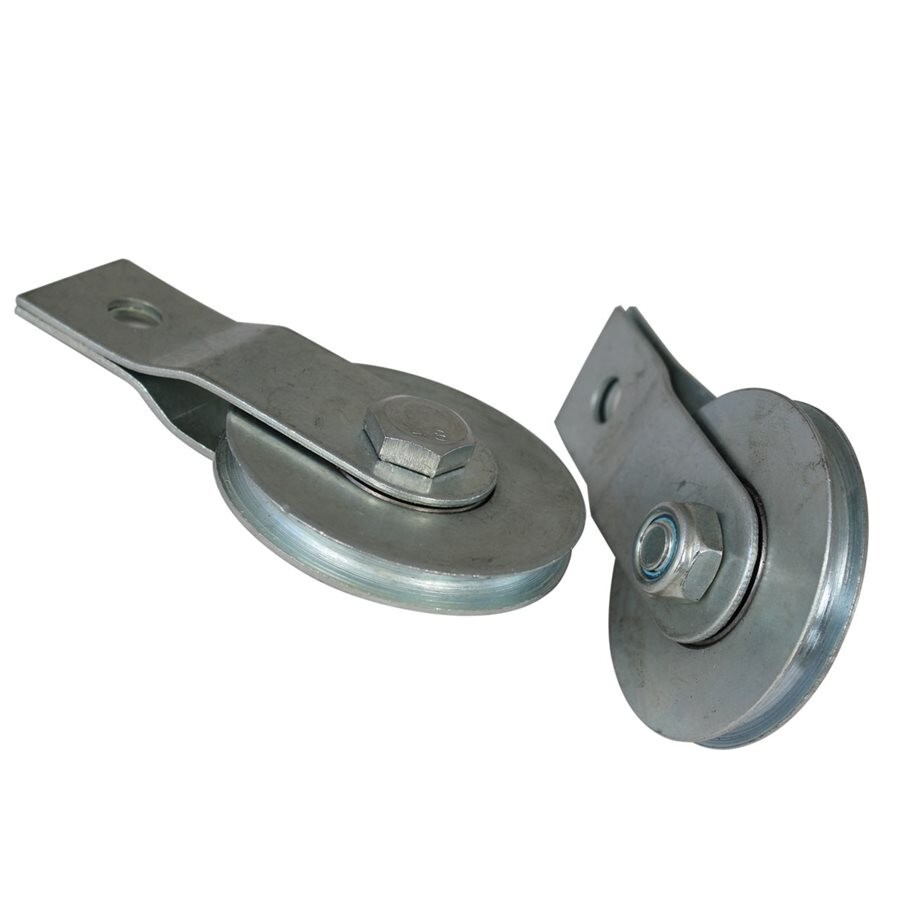

2-1/2\" Split Bracket Steel Wire Rope Cable Pulley with Bearing (QTY 2) For Sale

• Electrogalvanized steel
• Use with Aircraft cable up to 3/16\"
• Fitted with #6200 Ball Bearing (10 mm bore)

LOADS ON PULLEY BLOCKS

A single sheave block used to change load line direction can be subjected to total loads greatly different from the weight being lifted or pulled.The total load value varies with the angle between the incoming and departing lines to the block. When these lines run parallel (0 degree angle between the incoming and departing lines), load on the block will be 2 times the line load.The following chart indicates the factor to be multiplied by the lineload to obtain the total load on the block.

Angle Factor Multipliers

Angle

Factor

Angle

Factor

0°

2.00

100°

1.29

10°

1.99

110°

1.15

20°

1.97

120°

1.00

30°

1.93

130°

.84

40°

1.87

135°

.76

45°

1.84

140°

.68

50°

1.81

150°

.52

60°

1.73

160°

.35

70°

1.64

170°

.17

80°

1.53

180°

.00

90°

1.41

—

—

Visit our STORE for a wide range of Pulleys, Winches, Aircraft Cables, Clips, Sleeves, Thimbles and More.

CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. Pambina ImpEx assumes no responsibility for the use, misuse or misapplication of its products. Products are sold with the specific understanding that the purchaser and/or user are thoroughly familiar with their proper use.
