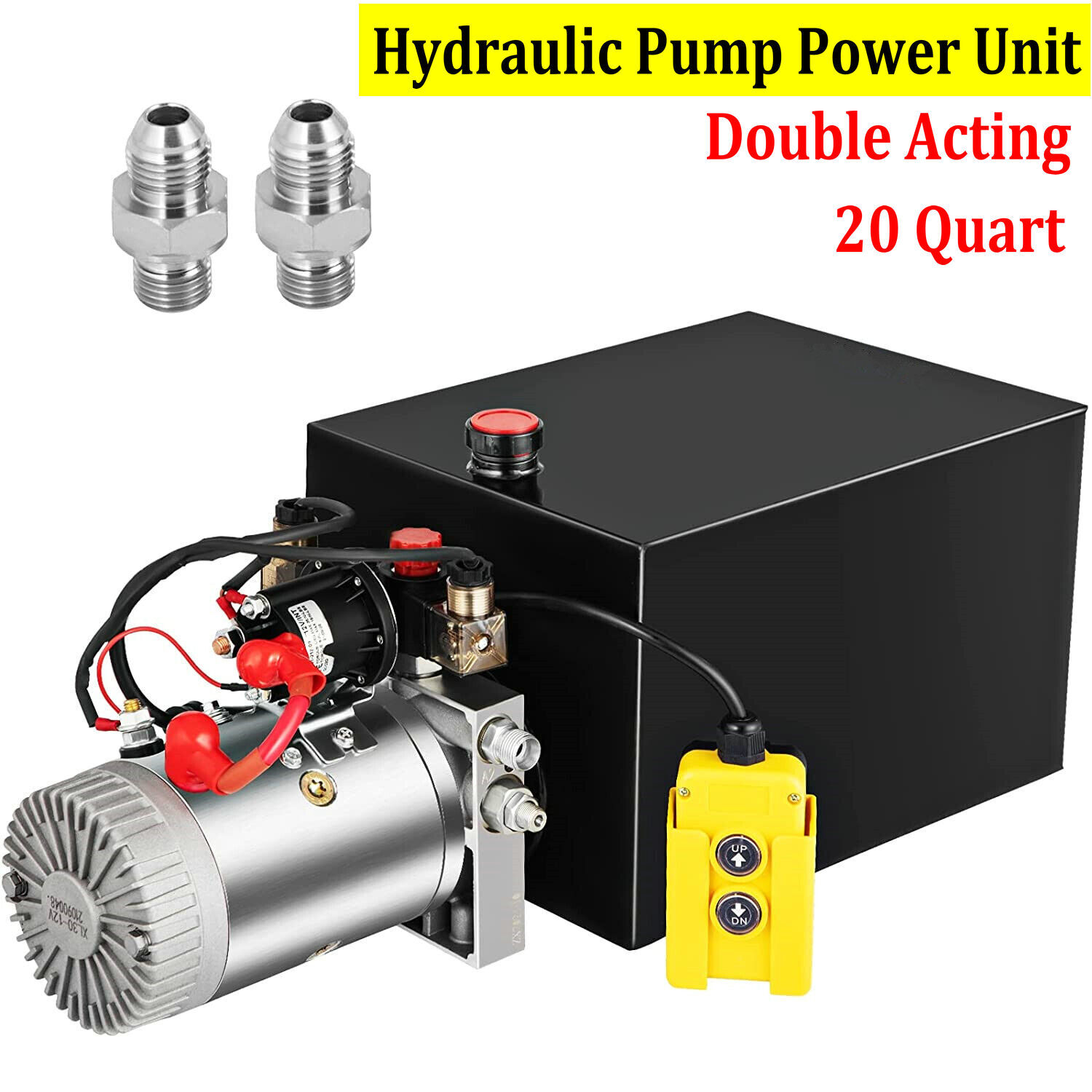

20 Quart Double Acting Hydraulic Pump Dump Trailer 12V DC Unit Pack Power Unit For Sale

Double-acting Hydraulic Power Unit & Additional SAE#6 Connectors & 12V DC Motor

Our power units are some of the most reliable and durable units in the industry for use with dump trailers, dump trucks, RV's, boat lifts, lift gates, tow trucks, wreckers, car haulers, agriculture equipment, snow plow equipment and a variety of other applications that require a powerful and compact hydraulic pump.

This hydraulic pump is a double-acting power unit for both lifting and lowering. It has a 15-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.

About the item:

⭐Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 20-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down.
⭐Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. It includes a 15 ft remote control and two additional SAE#6 connectors are provided for replacement.
⭐Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it avoids overpressure, safer and reliable.
⭐Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
⭐Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic />The factory production of a hydraulic power unit when leaving the factory, the system pressure has been set. If you want to change, the user according to the actual situation on their own through the knob to adjust the system pressure regualting valve, but no more than nominal pressure of the system.
Carefully check the motor and the electromagnetic valve connection. It is strictly prohibited to pick up.
In the installation and debugging for the first time, we must keep the internal fuel tank oil level, after a work cycle, oil tank should be made up, but not be too full.
Electrical and electromagnetic valve connection should pay special attention to the supply characteristics( ac, dc voltage and has the same sign. Ac power motor shell must be reliable grounding, forofferden ground operation. The motor terminal box note waterprrof, moistureproof. Connection for the first time, inching motor check direction, from the motor back end, spin to counterclockwise. Absolutely forofferden motor reverse reverse rotation and oil-free idling.
When the gas tank hydraulic oil must be filtered, filtration precision is not lower than 25 microns.
Power unit can't filter the impurities inside the hydraulic cylinder. So the hydraulic cylinder internal must clean. Lest cause valve failure. Tubing must also be clean.

Operation Method :
1. According to hydraulic principle diagrams, with clean connecting hydraulic powe unit and oil cylinder tubing.
2. According to the motor and the power of the electromagnetic valve marked characteristics( ac, dc voltage is properly connected. )
3. Inching motor observe any abnormal phenomenon. In actuators,without load, start the electric, short run test, check whether all the parts run smooothly, determine and correct after loading step by step to normal operation.

Maintenance:
We must keep the actuators, and pipeline cleaning, prevent dirt from entering the system.
We must keep the tank oil level, after a work cycle, proper fill oil. Such as pump suction air will cause the damage of pump and the damage of the seal.
100 hours after the running of hydraulic oil for the first time to join, change the new oil. after a year(1500 hours) to replace a new oil.
Hydraulic iol viscosity for 22 and 46 was commonly/s.
Working environment temperature high use hydraulic oil of high viscosity, low working environment with low viscosity hydraulic oil.

• Condition : Brand new
• Power / Gravity : Double Power-Up / Gravity Down
• PSI : 3200 PSI Max.Relief Setting For Increased Lifting Power on A port
• Tank Material: Metal

• Tank Capacity: 20L/ 20 Quart/ 5.2 Gal

• Flow : 2GPM
• Power: 1.6KW (Rated), 3.0KW (Max)
• Duty: 3 Min
• Traffic: 1.1 cc/r
• Rotation：Clockwise

• Reservoir : 20 Quart Steel Reservoir
• Port : SAE # 6
• Max. Relief Valve Setting A Port: 3200 PSI
  Max. Relief Valve Setting B Port: 1500 PSI
• Rated Speed: 2850R/MIN
• Voltage: DC12V
• Mount : Horizonal mount
• Control：Solenoid and Handheld Pendant
• Pendant Control Length：15ft/ 4.5 m
• Warranty : free lifetime for Dump Trailers-Lift Gates.
• Perfect replacement pump for 12VDC controlled hydraulic systems.
• Designed for horizontal mounting.
• Fluid choice determined by operating environment/temperature.
• Hand held pendant with 20 foot removal cord.

• Used As a Fuel Supply Device Through External Pipe System Connected To a Number Of Hydraulic Cylinder To Control Multiple Sets Of Valve Movement.
• This hydraulic pump is the perfect replacement pump for 12V DC remotely controlled hydraulic systems.
• Our power units are widely used with dump trailers, dump trucks, RV's, boat lifts, lift gates, tow trucks, wreckers, car haulers, agriculture equipment, snow plow equipment, etc
• CE certification and lifetime warranty.

• 20qt Hydraulic Pump Double Acting X 1
• SAE# 6 Connectors X 2
• Dump Trailer Remote Control Switch(15FT) X 1
• English Manual X 1
