[20] Conversion Studs M14x1.5 to M14x1.5 + M14x1.5 Lug Nuts for BMW X3 X5 745Li For Sale

Tech Data: M14x1.5 Extend Wheel Studs ? Hub Side Thread Pitch: M14x1.5 · Hub Side Length: 15 mm · Wheel Side Thread Pitch: M14x1.5 · Wheel Side Length: 45 mm ? full specs belowFitment:BMW:

• X3 04-10
• 750Li 06-08
• 750i 06-08
• 760Li 03-08
• 760i 04-06
• X5 00-06
• 745Li 02-05
• 745i 02-05
• 740i 01
• 740iL 01
• 750iL 01

IMPORTANT FITMENT NOTICE: Important: ? Included nuts are 60-degree cone seat and M14x1.5 ? Factory ball-seat wheels require their own matching nuts ? Match hub-side thread, stud length and nut depth ? Seat studs snug with an? 's chart confirms thread pitch only ? unsure? Message us and we'll verify fitment before you buy. ESPLUS Company Logo ESPLUS precision wheel hardware ESPLUS
Precision wheel hardware Store Home Hot Products response Exact specificationsThread, seat, size and quantity Fitment before claimsVehicle and wheel checks separated Listing-level termsShipping and returns stay current message supportApplication context stays together Lug Nuts Mag Seat OEM Lug Nuts Duplex Conical OEM Lug Nuts Regular Acorn Lug Nuts Long Acorn Lug Nuts Open End Lug Nuts Spline Lug Nuts Lug Bolts Ball Seat Lug Bolts Cone Seat Lug Bolts Wheel Locks Locker Lug Nuts Locker Lug Bolts Wheel Spacers Hubcentric Spacer with Ball Seat Bolts Hubcentric Spacer with Cone Seat Bolts Wheel Adapters 5 Lug Adapter 6 Lug Adapter 8 Lug Adapter 5 Lug Hubcentric Adapter 6 Lug Hubcentric Adapter Precision wheel hardware · Fitment-first specification Bolt-To-Nut Conversion Studs Cone Seat Lug Nuts Combo Studs ship with matching M14x1.5 lug nuts; hub installation uses an M3 Allen key

[20] Conversion Studs M14x1.5 to M14x1.5 + M14x1.5 Lug Nuts for BMW X3 X5 745Li

Direct-fit upgrade for BMW owners ? confirm your exact year and model in the compatibility chart below before ordering.Studs And Lug Nuts IncludedFor Aftermarket Cone Seat WheelsEasier Wheel Alignment Fitment-first engineering 01 · Order scopeConfirm the exact quantity.Use the listing title and the technical data as the order reference, not the vehicle photograph. 02 · Vehicle sideConfirm thread and application.Read the compatibility section and every fitment note before ordering. 03 · Wheel sideConfirm the actual wheel hardware.Match seat geometry, diameter, clearance, depth and usable thread engagement. Bundle Contents Two parts. One kit.

Each order ships as a complete, ready-to-install set ? measured and matched.

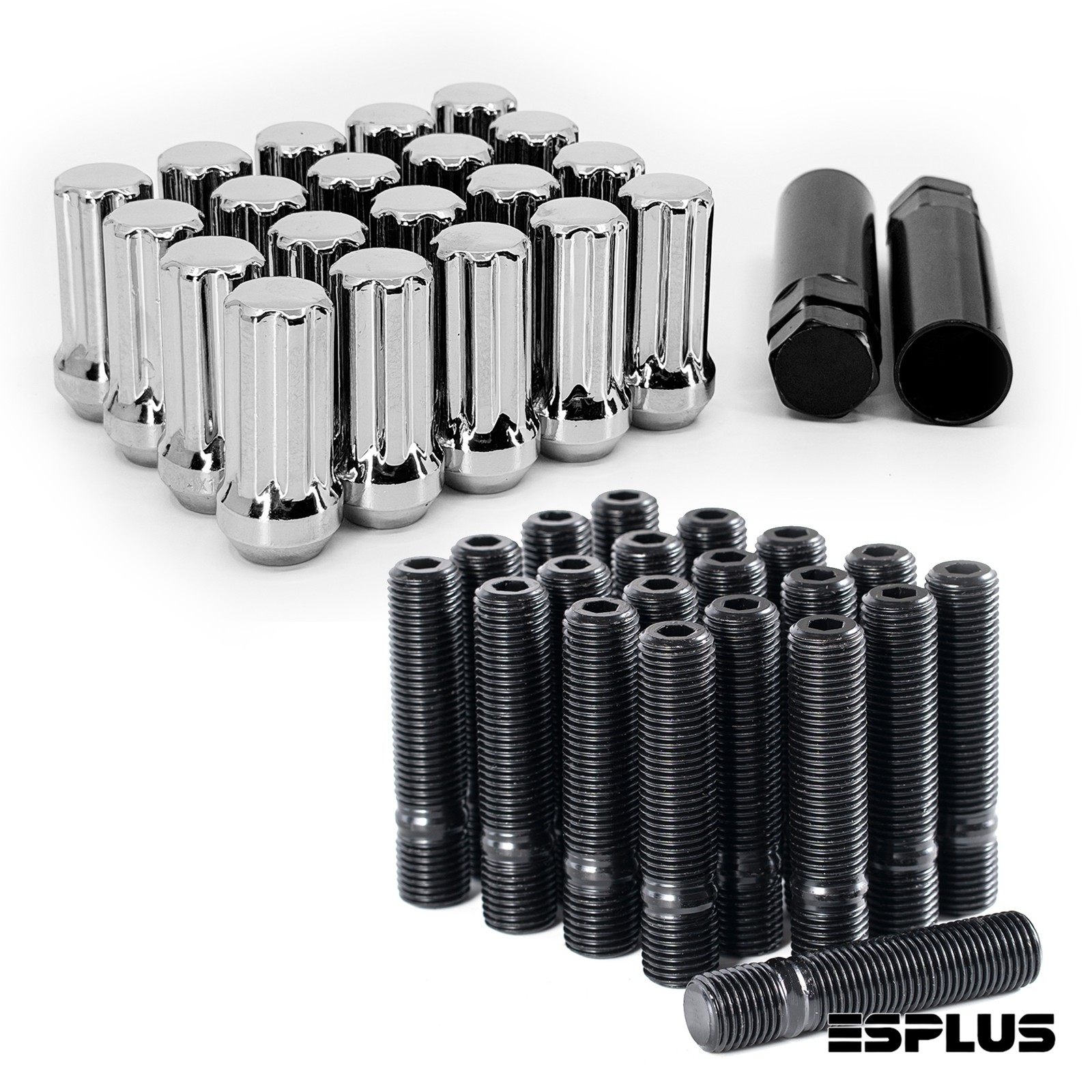

A M14x1.5 Extend Wheel Studs Type · Bolts to Nuts Conversion Studs ×20 PCS/Set Hub Side Thread PitchM14x1.5Hub Side Length15 mmWheel Side Thread PitchM14x1.5Wheel Side Length45 mmColor and FinishBlackDriveM3Tool RequirementM3 ToolMaterial MadeSCM Carbon SteelQuantity Per Order20 PcsCalifornia Prop 65 WarningWARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. + B M14x1.5 Acorn 7 Spline Lug Nut Type · 7 Spline Lug Nut With 2 Key ×20 PCS/Set Thread PitchM14x1.5Lug Nut Height51 mmLug Nut Depth48 mmLug Nut Flange23 mm(0.9Inch)Lug Nut Seat60 Degree ConicalColor and FinishChromeDrive7 SplineTool Requirement3/4"& 13/16" Hex SocketMaterial MadeSCM Carbon SteelQuantity Per Order20 Pcs (2 Keys Included)California Prop 65 WarningWARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Vehicle Compatibility Fits your car.
Verified, not guessed.

Bolt-to-nut conversion studs with included 60-degree cone seat lug nuts for aftermarket wheels. Hub-side thread and stud length must match the vehicle; wheel-side nuts use M14x1.5.

1Brands 11Vehicles 3Regions EU Germany 1 Featured BMW Germany · 11 models Lug Nuts Thread RequiredM14x1.5 ModelRegionYear Range 740i 2001 740iL 2001 745Li 2002-2005 745i 2002-2005 750Li MX 2006-2008 750i MX 2006-2008 750iL 2001 760Li MX 2003-2008 760i US 2004-2006 X3 MX/CA 2004-2010 X5 MX/US 2000-2006

Not sure? Message us ? we verify your exact year & model before you buy.

Product Display A closer look at the main part.

Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.

Product Display A closer look at the included hardware.

Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.

Check Before You Order Some fitment details only your vehicle can tell you.

The vehicle list above confirms your year, make and model. The points below are not part of that list — they depend on the wheels and hardware currently on your vehicle. Please verify them before ordering.

Check Before You Order The same applies to the included hardware.

These checks apply to the hardware included in this kit. They depend on what is currently fitted to your vehicle, not on the year, make and model above.

Why It's Built Different Performance you can torque down. Supported Wheel Alignment

The installed studs support the wheel during mounting, providing fixed alignment points before the included nuts are installed.

Matched Wheel Attachment

The kit pairs the conversion studs with included M14x1.5 lug nuts, providing matching wheel-side threads in one shipment.

Conical Wheel Contact

The included nuts clamp aftermarket wheels through a 60-degree cone seat. Factory ball-seat wheels take their own seat-matched M14x1.5 nuts.

Independent Stud Seating

The M3 Allen key seats the studs snug with thread locker; the included lug nuts provide wheel clamping force at the vehicle specification.

How to Install 3 steps to torque.

Follow the sequence below ? fitment is everything, so read Step 1 carefully.

01 Prepare The Hub

Support the vehicle, remove the wheel and clean the hub face and threaded holes. Verify hub-side thread and stud length against the original fitment.

Incorrect hub-side thread or stud length prevents proper fitment. 02 Seat The Studs Snug

Apply thread locker and seat the studs snug using an M3 Allen key. The stud body does not receive wheel-fastener torque.

Do not torque the stud body; clamping force comes from the lug nuts. 03 Mount And Torque The Wheel

Mount the wheel on the studs. Hand-start matching M14x1.5 lug nuts and tighten in a star pattern to the vehicle specification.

Lug nut seat type must match the wheel. 01 / 4 4 photos in this guide — tap the arrows or dots to see every step Important Fitment Notice Important:

• Included nuts are 60-degree cone seat and M14x1.5
• Factory ball-seat wheels require their own matching nuts
• Match hub-side thread, stud length and nut depth
• Seat studs snug with an M3 Allen key and thread locker
• Do not torque the stud body
• Torque lug nuts to vehicle specification

's compatibility list matches by vehicle only. The wheel-side facts above — seat geometry, hole clearance, installed depth and usable thread engagement — still need your own check. Message us through before ordering if anything is unclear.

Why ESPLUS Clarity before checkout.

Wheel hardware is fit-critical. Our listing structure keeps the evidence a buyer needs in the order it should be checked.

Specification First

Thread, seat, dimensions, finish and quantity are organized for direct comparison.

Fitment in Two Layers

Vehicle compatibility and wheel-specific hardware checks are presented separately.

Component-Level Detail

Combination listings keep each component's quantity, gallery and technical data distinct.

Pre-Purchase Support

Message us through with your year, model, wheel and current hardware details.

Questions, answered Check the details that decide fit. Will this wheel hardware fit my exact vehicle?Start with the vehicle compatibility section, then read every fitment note. Compatibility data does not replace wheel-side checks such as seat type, hardware dimensions, hole clearance and usable thread engagement. How do I confirm thread pitch and seat type?Compare one piece of your existing hardware with the technical data and the Check Before You Order images. Match the thread on the vehicle side and the seat geometry required by the wheel. What should I verify on aftermarket wheels?Confirm the wheel's seat profile, fastener-hole diameter, tool clearance, installed depth and required engagement. These wheel-specific facts are not established by year, make and model alone. What torque specification should I use?Use the vehicle or wheel manufacturer's applicable specification and installation procedure. If the two sources differ or the application is modified, consult a qualified installer before installation. Where can I find current shipping and return terms?Use the Shipping, delivery and Returns sections of this listing as the current order-level terms. Those listing controls take priority over general informational text. Shipping · Returns · Fitment Order terms, kept current.

The controls attached to this listing are the source of truth for the transaction.

Shipping

Review the handling time, delivery estimate and available services shown on this listing. Tracking is provided through the order when available.

Returns

The return window, eligibility and conditions shown in this listing govern the order. Start any return request from the purchase record.

Fitment Responsibility

Confirm the listed thread, seat, dimensions, clearance and quantity before installation. When uncertain, message us through before ordering.

About ESPLUS Precision wheel hardware.
Clarity built into every listing.

ESPLUS focuses on wheel fastening hardware and fitment-critical accessories. We organize product specifications, vehicle application data, wheel-side checks and installation guidance so buyers can compare the right facts before ordering.
