INCLUDES:

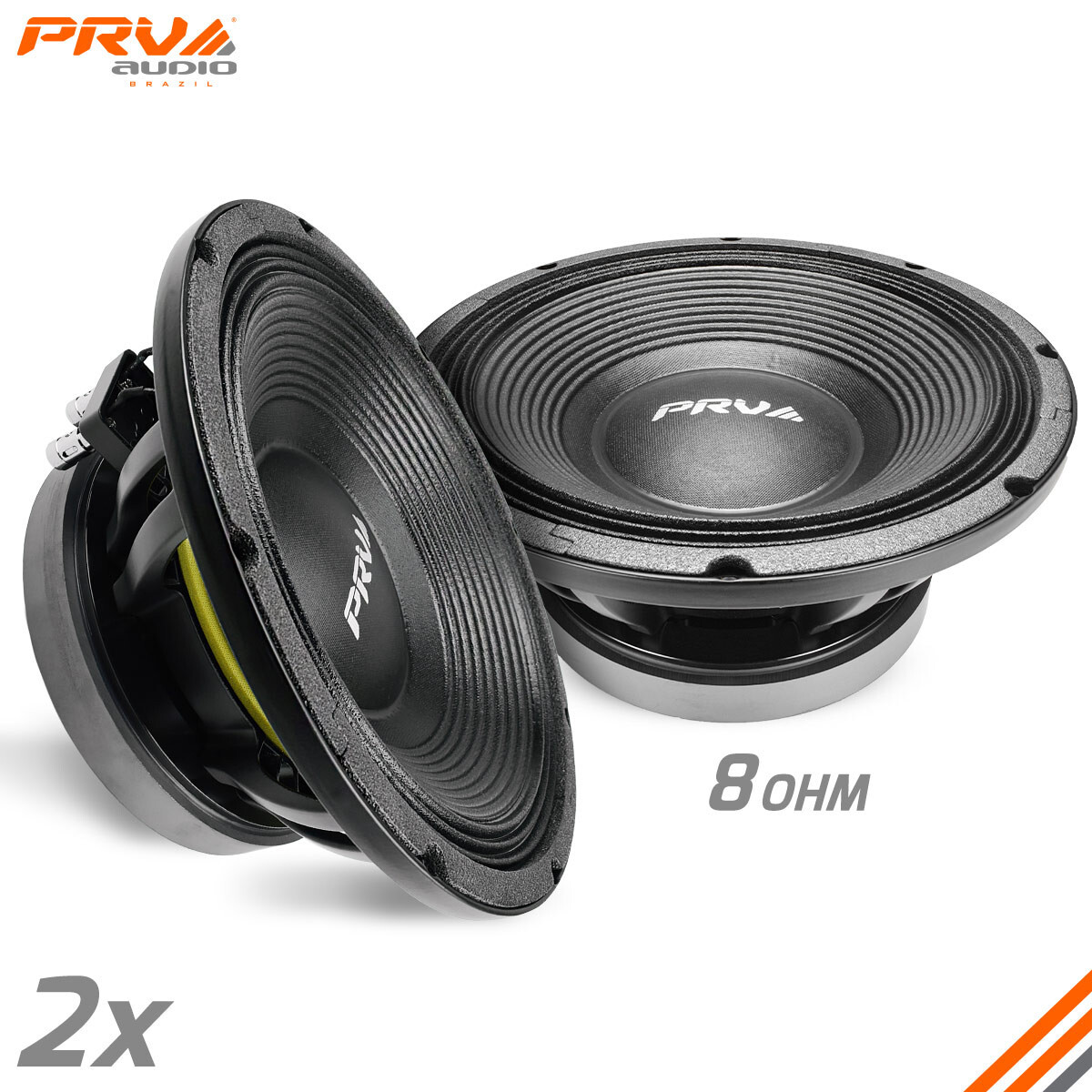

2x PRV Audio 12W1600 Low Frequency Woofer PRO Loudspeaker 12\" 8 Ohms - 3200 Watts Package - 1600 Watts each speaker
FEATURES:
The 12W1600 woofer features a special 4″ split copper wire voice coil wound on a fiberglass former using proprietary high temperature adhesives. It features an optimized ceramic ferrite magnet assembly that will guarantee very good Low dynamic range with a very low distortion figure.
This professional low frequency driver is especially recommended for compact vented enclosures, in which it will deliver solid, deep bass output.
- 4″ split copper voice coil wound on fiberglass former for hi-temp performance, 8 ohms
- Ventilated voice coil gap reduces power compression
- 10.5 mm Xmax, 36 mm peak-to-peak excursion before damage
- 1600 watts continuous program power rating makes high acoustical output
- High BL factor and Xmax for outstanding Low output
- Weather-resistant paper cone and dust cap
Designed to make tremendous amounts of bass, the 12W1600 12″ woofer can be used in small vented or sealed cabinet. The shallow 5.51″ mounting depth and high EBP makes it ideal for compact folded horn enclosures.
Our specially designed rigid cast aluminum frame features side forced cooling system openings which allows airflow to cool the voice coil to handle up to 1600 watts RMS without issue. Spring-loaded push terminals make installation a snap while offering a secure connection to your speaker wires.
To stand up to the use and abuse of the professional sound environment we designed a 4″ spit copper voice coil that is wound inside-outside on a fiberglass former and features a generous 27.5 mm winding length for extended Xmax and less distortion.
The cone, constructed of thick paper for a natural response, includes glass fiber reinforcement and uses a ribbed design offering additional structural support.
Supporting the cone is a double heavy spider and triple roll treated cloth surround, both designed for high excursion applications to handle short bursts of excessive power without damage.
GENERAL SPECIFICATIONSNominal Diameter12″ (305 mm)Nominal impedance8 OhmNominal Power Handling800 WattsContinuous Program Power (RMS)1600 WattsMax Peak Power3200 WattsSensitivity 2.83V at 1m94 dBRecommended Hi Pass Crossover**
**For Full Power Handling60 Hz**
**12db Per Octave CrossoverFrequency Response55 – 2,500 HzVoice Coil Diameter4″ (100 mm)Voice Coil WireCopperVoice Coil Winding Depth27.0 mmFormer MaterialGlass FiberMagnetic Gap Depth12.0 mmFrame MaterialDie Cast AluminumTHIELE-SMALL PARAMETERSEquivalent VolumeVas46.99 lExcursion (mathematical)***Xmax10.50 mmFree Air ResonanceFs51.22 HzMechanical FactorQms14.98Electrical FactorQes0.40Total FactorQts0.39Cone AreaSd594 cm²Mechanical MassMms101.16 gBl FactorBl20.35 TmDc ResistanceRe5.1 OhmInductanceLe1.26 mH at 1 kHzMechanical Mass Without AirMmd92.97 gMechanical ComplianceCms0.095 mm/N
EXTRA INFOEXTRA INFOOverall Diameter12.40” (315 mm)Front Mount Baffle Cutout11.16” (283.4 mm)Mounting Depth5.51” ( 140 mm)Overall Depth6.04” (153.5 mm)Net Weight24.22 Lbs (11.0 kg)Shipping Weight26.01.Lbs (11.80 kg)Carton Dimensions W x L x H13.38” x 13.38” x 6.69”
(340 x 340 x 170 mm)
