3/4\" Brass Electric Solenoid Valve 110V 120V Volt AC Water Air Gas VITON NC B21 For Sale

Valves4projects — supplying high quality valves since2004. Over 40,000 valve orders shipped.

**NEW LISTING — SAME GREAT VALVE!**

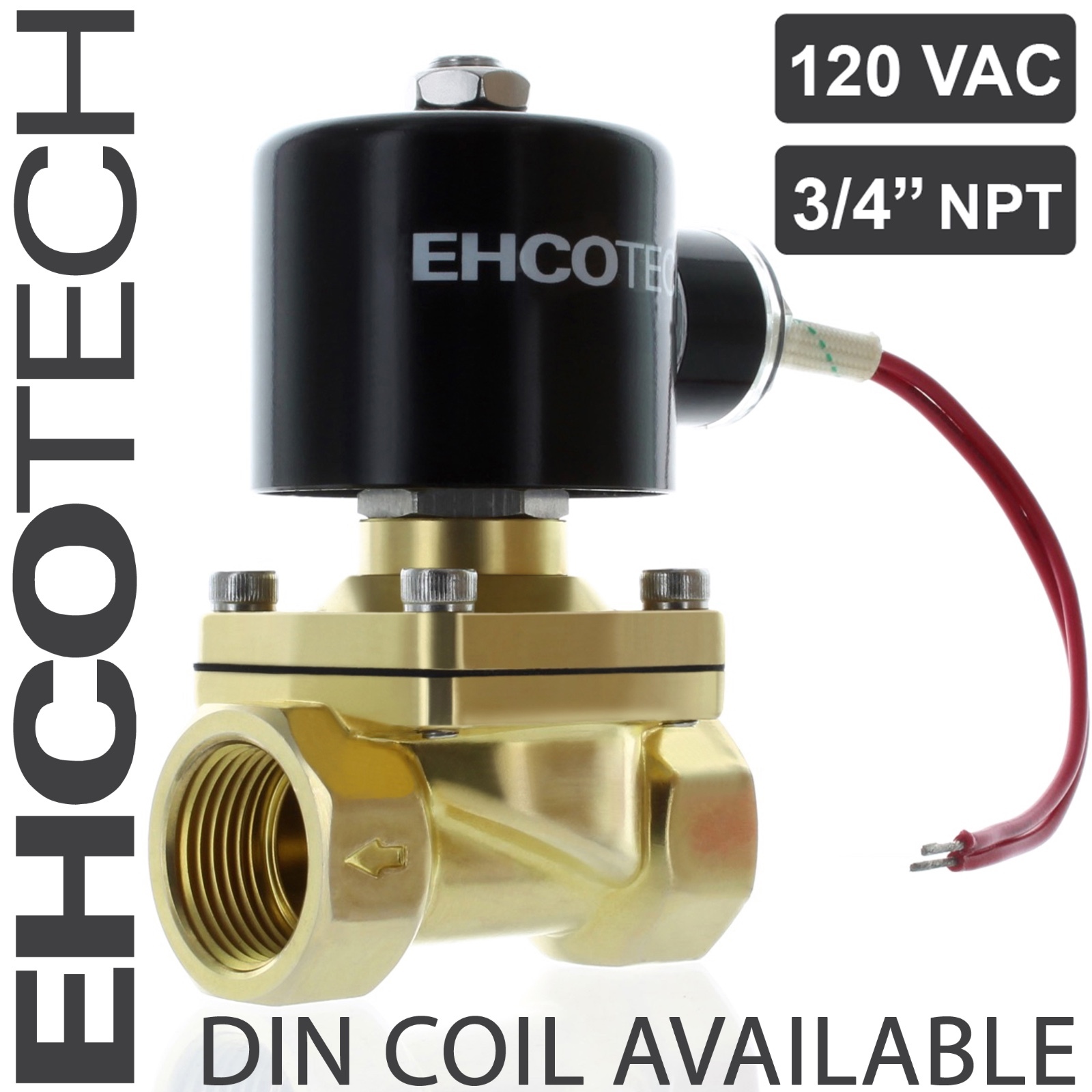

EHCOTECH B21V-3/4-CC-120VAC SOLENOID VALVE

3/4\" NPT | 110/115/120VAC |Brass Body / FKM (Viton) Seal | Normally Closed |0 - 145 psi

More than 20,000 EHCOTECH 21-series valves have been deliveredto hobbyists, businesses and manufacturers.

• FREE 2 to 4 DAY SHIPPING, shipswithin one business day from San Diego, California
• Great general purpose valve for many water,air, fuel, or gas projects
• 2-way, Normally Closed
• Semi-Direct Acting Valve (allows for good lowpressure performance and gravity feed capability)

• Fast acting


• 3/4\" NPT (female) inlet / outletports
• Outer thread diameter / TPI (threads perinch): 1.050 inches / 14 TPI
• Large internal orifice (3/4\" or 20 mminternal orifice diameter)
• Cv value: 7.6


• 0 to 145 psi or Vacuum

• Max media temp: 265° F (130° C)
• Excellent choice for low pressureapplications due to semi-direct lift design

• Gravity Feed capable


• Water
• Air
• Gases
• Diesel
• Gasoline (with or without Ethanol)
• Glycol

• Other media compatible with FKM/Viton


• 110/115/120-Volt AC / 22VA (Volt-Amps) or 22Watts

• COIL OPTION #1: LEAD WIRE COIL(see pictures)

• IF NO SPECIAL REQUEST IS MADE, WE WILLSHIP WITH THE LEADWIRE COIL

• Metal shielded coil (IP54 rating)

• 5.5\" lead wires (fast/simple wiring forquick projects)

• 1/2\" conduit connection
• COIL OPTION #2: DIN CONNECTOR COIL(see pictures)

• YOU MUST REQUEST THIS OPTION VIA MESSAGE OR LEAVE A NOTE DURING CHECKOUT
• Resin encapsulated coil (IP65 rating)
• Screw-down terminals inside the connectorfor your own cable/wires


• Valve body: Brass
• Plunger and plunger guide tube: StainlessSteel

• Diaphragm: FKM (Viton)

• Height: 4.3\"
• Width: 2\"

• Length: 2.7\"
• Weight: 1 lb 10 oz

• Customer service is our #1 priority.
• If you are not completely satisfied, pleasecontact us and we will make it right!
• All orders are shipped within 1 business day
• 30-day, hassle free returns
• 12 month warranty
