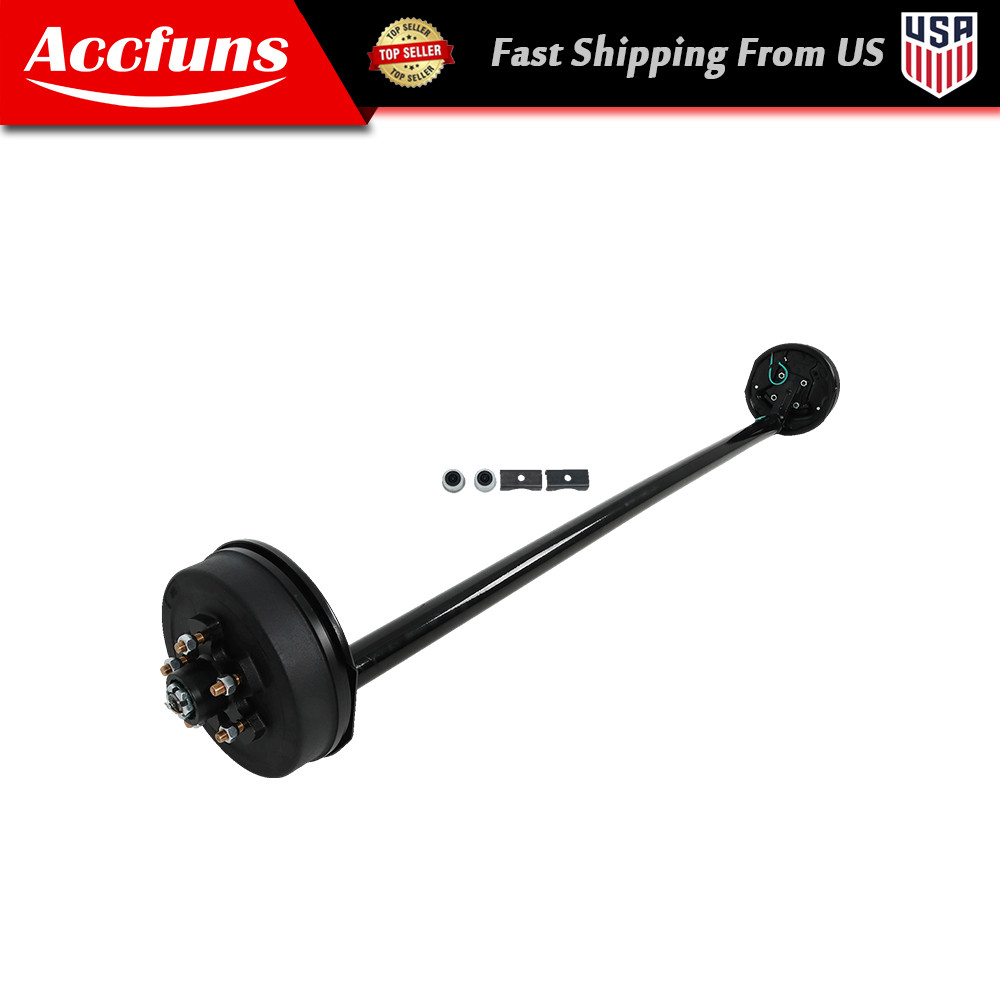

3.5K TK 3500 Lb Trailer Axle 89\"Hub Face 4\" Drop 5‑Lug With Electric Brake For Sale

Specification:

3,500 lbs TK Trailer Axle (3.5K Capacity)

5 Lug

Tube: 2 3/8"

Standard 4" Drop

Electric Brake: 10x2.25

Condition: 100% New and High QualityType: trailer axleWarranty: 1 YearAxle Specifications: 3,500 lbs Idler Trailer Axle (Capacity 3.5K)Hubs: 5 lug idler hubs installed on axles.Brake Flange: 4 Bolt Welded on AxlePre-Greased: YesSuspension: Leaf SpringCambered: YesUnder-slung: Yes (the axle sits on top of the

Accfuns-us

3.5K TK 3500 Lb Trailer Axle 89"Hub Face 4" Drop 5‑Lug With Electric Brake

Specification:

3,500 lbs TK Trailer Axle (3.5K Capacity)

5 Lug

Tube: 2 3/8"

Standard 4" Drop

Electric Brake: 10x2.25

Condition: 100% New and High Quality
Type: trailer axle
Warranty: 1 Year
Axle Specifications: 3,500 lbs Idler Trailer Axle (Capacity 3.5K)
Hubs: 5 lug idler hubs installed on axles.
Brake Flange: 4 Bolt Welded on Axle
Pre-Greased: Yes
Suspension: Leaf Spring
Cambered: Yes
Under-slung: Yes (the axle sits on top of the to Find Your Spring Center Measurement?
Spring Center is the distance from the center of one leaf spring to the center of the opposite leaf spring. This is the measurement used to locate where the spring perches need to be welded on the axle tube.
Best method with old axle: Measure from the center of one existing spring perch / spring seat to the center of the opposite spring perch / spring seat.
Best method from the trailer: Measure from the centerline of the left leaf spring pack to the centerline of the right leaf spring pack where the axle sits.
Leaf spring center bolt method: Measure from the center of the center bolt / locating pin on one spring pack to the center of the center bolt / locating pin on the other spring pack.
Do not measure outside-to-outside. Spring Center is a center-to-center measurement.
Do not guess from deck width. Deck width can be helpful context, but it is not a substitute for the actual Spring Center

Axles come fully assembled

Packed with High-Temp Axle Grease

Axle comes with loose spring seats that will need to be welded on

Lube Design

High Strength Steel Axle Tube Construction to ensure

Designed for use on Light Duty Trailers

For Trailer Axle, Boat Trailer Axle, Car Haulers Trailer Axle, ATV Trailer Axle, Lawn & Landscape Trailer Axle, Motorcycle Trailer Axle, BBQ Pit Trailer Axle, Cargo Trailer Axle, Enclosed Trailer Axle, RV Trailer Axle & More

Package Includes:
1 × 3,500 lbs Idler Trailer AxleElectric Brake 5 Lug

Notes:
Not universal. Verify all measurements, axle configuration, spindle compatibility, brake compatibility, wheel/hub setup, and spring center before ordering or installing.

Item SpecificsCountry of Origin United StatesBrand muniraterPart Type AxlesHub 89Warranty 1 YearMPN AFU25216Fbolt pattern 5 on 4.5"Drop 4
