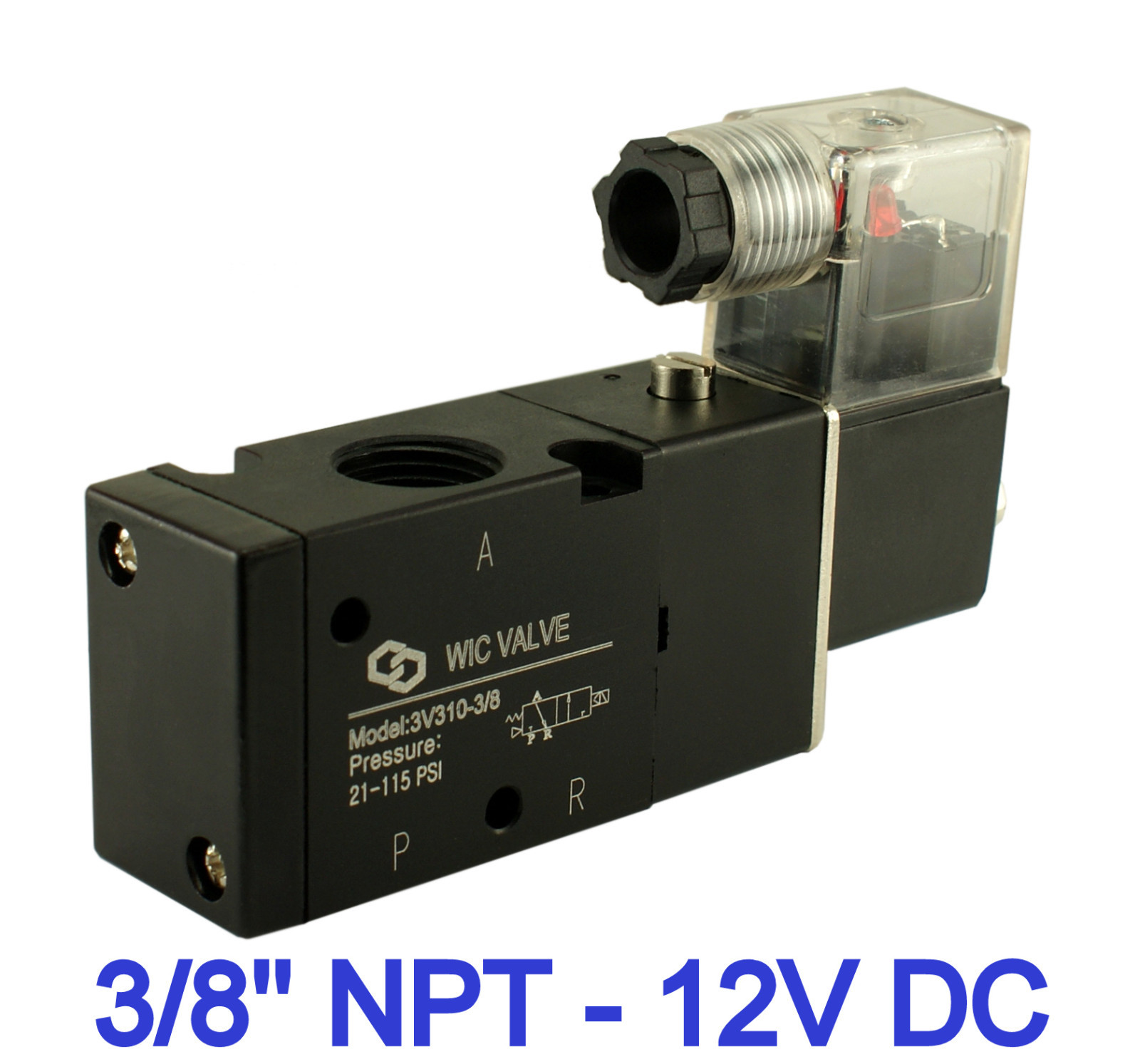

3/8\" 3 Way 2 Position Directional Control Electric Air Solenoid Valve 12V DC For Sale

3V310 Series pneumatic in-line 3-way directional control solenoid valves are body ported spool valve. 3V310 Series solenoid valve is a3 way, 2 position, single solenoid valve. This pneumatic electric solenoid valve is operated by a ED 100% continuous duty solenoid. 3V310 Seriesdirectional control valves is a body ported mounting type and valve can be surface mounted. WIC Valve 3V310 series is equipped with a manual override button. 3V310 series directional control air valve is commonly use to operate linear motion control components such assingle acting spring return air cylinder.

3V310 Series 3 Way Directional Control Electric Air Solenoid Valve Specification:

Model Number: 3V310-3/8-12VDC-D

Valve Type: 3 Way, 2 Position, 1 Single Solenoid

WorkingMedium: 40 Micron Filtered Air

Operation Model: Air Pilot

Action Model: Spool Design Inner Guide Type

Port & Mounting: Body Ported

Flow Rate: 1.68 Cv (80 SCFM at 100 PSI)

Response Time: Less than 20 ms

Body Material: Anodized Aluminum

Seal Material:NBR (Buna N)

Armature Tube Material: Brass

Coil Power: 3.7W

Coil Class:F Class IP 65

Certification: CE Certification

Coil Duty: 100% ED (Continuous Duty)

Operating Pressure: 21 PSIto 115 PSI

Operating Temperature:14 to 140°F

Port Size:2 of 3/8\" Inch NPT Female Port and 1 of 1/4\" Female Exhaust Port

Coil Voltage: 12V DC

Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%

Electrical Connection: DIN 43650 Form B (PG9) Connector with LED Indicator

Lubrication: Not Required

3V310 Series Pneumatic Solenoid Valve Installation Guide:

1. Connect the source to port P.

2. Connect the outlet to port A.

3. Connect the exhaust to port R.

3V310 Series Pneumatic Directional Control Air Solenoid Valve Dimensions (Unit=mm):

DIN 43650 Form B (PG9) Connector Dimensions (Unit=mm):
