36V 500W Electric Scooter Motor, e-Scooter Motor, Gear Motor
Found on a variety of stand-up electric scooters, pocket bikes, ATVs and electric dirt bikes
36 Volt
500 Watt
Rated Speed: 2500RPM
Rated Current: 18.3A
11 tooth sprocket for 8mm (25H) Chain
Controller:
This 36 volt controller has 8 connectors.
Rated Voltage 36 Volts
Rated Motor 500 Watts
Rated Current 27±1A
Conversion Efficency 95%
Under Voltage Protection style=\"background-color: rgb(248, 248, 248);\">
Plug:
1.Red & Black (large cable) : Battery connections
2.Yellow & Blue : Motor connections
3.Red & Blue : Key Switch(power lock)
(If there is no power door locks,red connection to blue)
4.Yellow & black : brake
5.Red & Yellow: Brake light
6.Red&Black(small cable) : indicator light
7.Red, Black & Blue: Speed Regulator 1-4 V(Throttle )
(Red:+5v,Black: - ,Blue :Signal Wire)
8.Red & Black (small cable): Charger

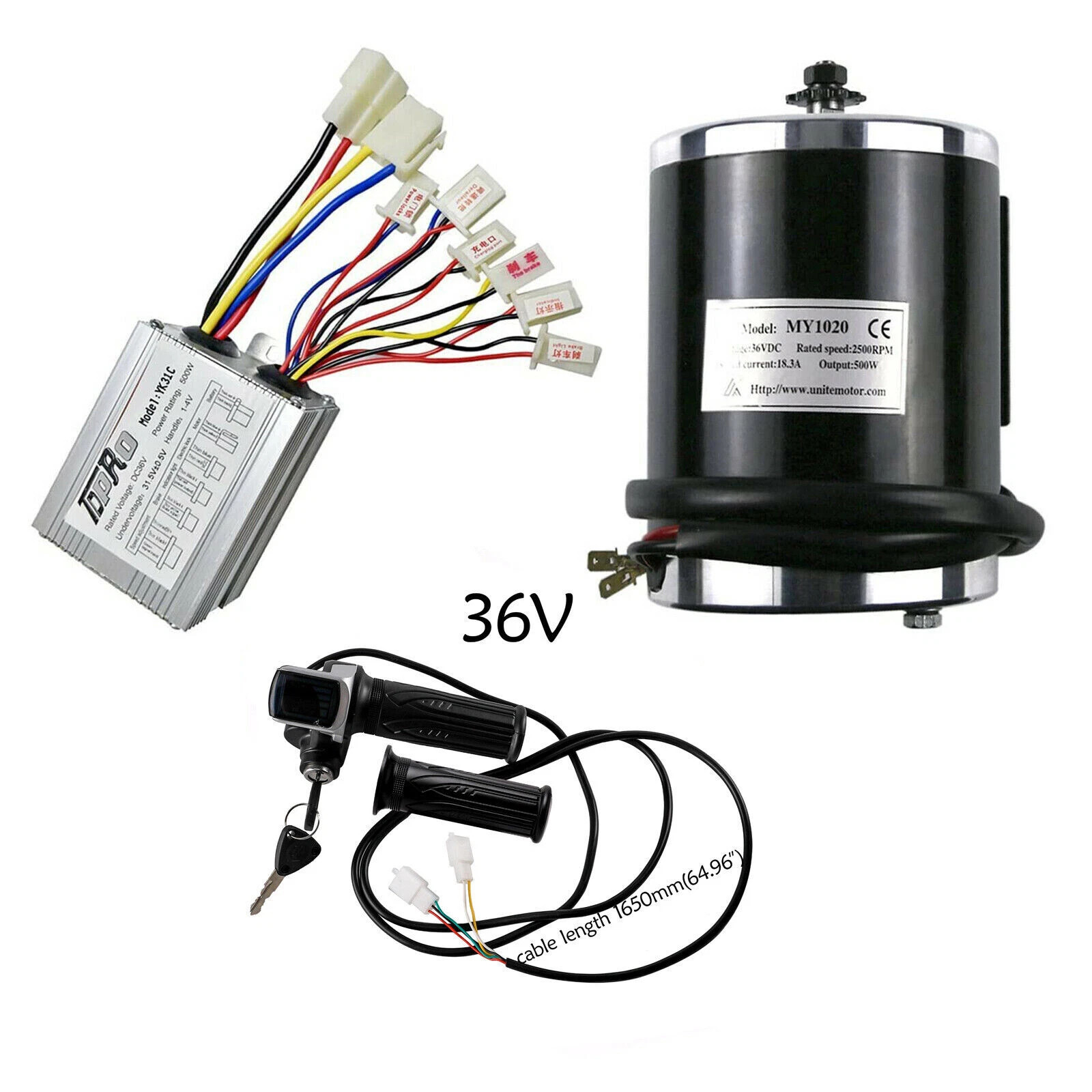

Package includes:1x Motor+1x controller + 1x Pair of LCD Throttle W/ Key lock+3X Batteries
