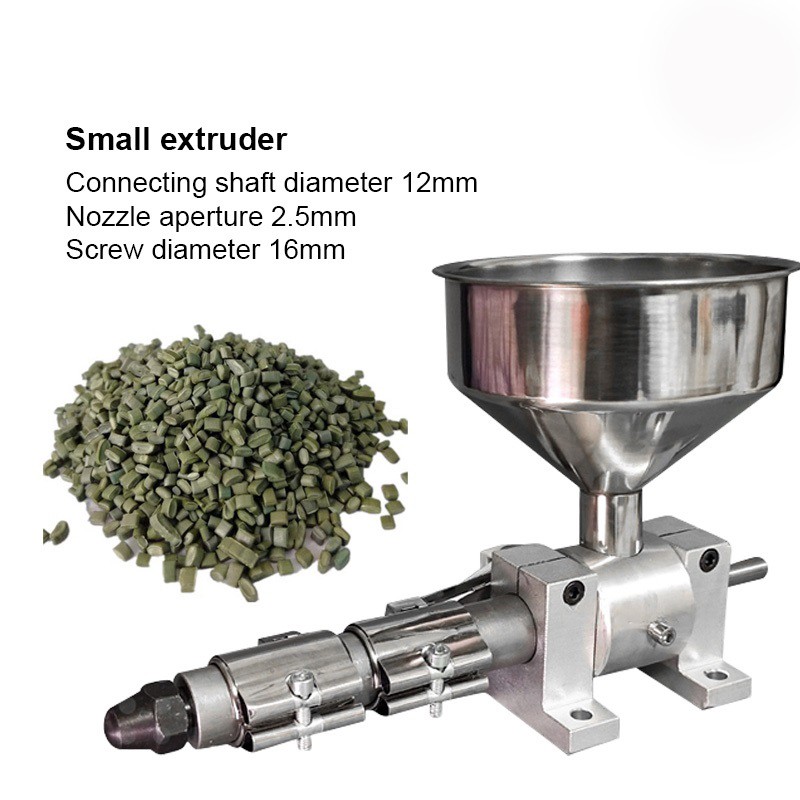

3D Filament Single Screw Extruder 110V Plastic Extrusion Processing Machine DIY For Sale

3D Filament Single Screw Extruder 110V Plastic Extrusion Processing Machine DIYPlease note: The voltage of this product is 110V and does not include the motor and temperature controller The machine is equipped with a 2.5mm nozzle by default. If you need a 1.75mm nozzle, it must be purchased separately.Single-Shaft Extruder Accessory Kit for DIY Plastic/3D Filament ExtruderUpgrade your DIY plastic extruder with this high-performance single-shaft extruder accessory kit—perfect for experimental research, small-batch testing, and 3D filament extrusion molding! Designed for ease of assembly and reliable performance, this kit has everything you need to build your own efficient 3D filament extruder.✅ Key Components & Premium Quality

• Single-Shaft Screw: Made of 45# steel, featuring excellent high-temperature resistance (usable up to 572℉ / 300℃). Ensures stable extrusion and long service life even with frequent use.
• 2 Pcs 110V Heating Coils: 200W ceramic heating coils deliver fast heating speed, uniform temperature distribution, and easy wiring—ideal for DIY plastic extruder projects.
• Integrated Hopper: Convenient for feeding raw materials, ensuring smooth and consistent material supply during extrusion.

✅ Wide Material CompatibilityThis accessory kit is suitable for extruding a variety of materials, including PE, PP, PS, PVC, POM, PA, PC, ABS, PET, and more—meets your diverse DIY and experimental needs.✅ Easy DIY AssemblyAs the core accessory of a screw extruder, this kit is designed for hassle-free assembly. To complete your DIY 3D filament extruder, you will need to prepare the following (not included in the kit):

• K-type temperature controller
• Motor with speed > 50rpm, power > 100W, and torque > 10 Nm

✅ Versatile ApplicationCompact design makes it ideal for laboratory experimental research, small-batch product testing, 3D printing consumables extrusion molding, and other DIY projects. Perfect for hobbyists, students, and researchers alike.Shop with confidence—this high-quality accessory kit is built to deliver reliable performance and long-lasting use. If you have any questions about assembly or compatibility, feel free to contact us methodHeating coilScrew sleeve outer diameter30mmTotal length300mmInlet diameter28mmScrew output shaft diameter12mmNozzle aperture2.5mmScrew diameter16mmScrew length280mm
Large Hoop

Large stainless steel hopper, conforming to the size of the heating shaft

45# steel screw

High temperature resistant

Clamp Fixation

Screw double clamp fixation

About Installation:

1. Thermostat: K-type

2. Recommended Motor: Speed ​​greater than 50 rpm, power greater than 100 W, and torque greater than 10 Nm

Instructions:

1. This product has a temperature resistance of no more than 300°C/572℉. Do not use without temperature control. Never use at temperatures exceeding 300°C/572℉.

2. When installing the coupling, ensure the screw and motor shaft are aligned to prevent deviation and screw damage.

3. Never start the machine cold. Ensure the sleeve temperature reaches the material melting point before starting. Do not overfill the machine during initial use to avoid excessive screw resistance and possible screw jamming.
