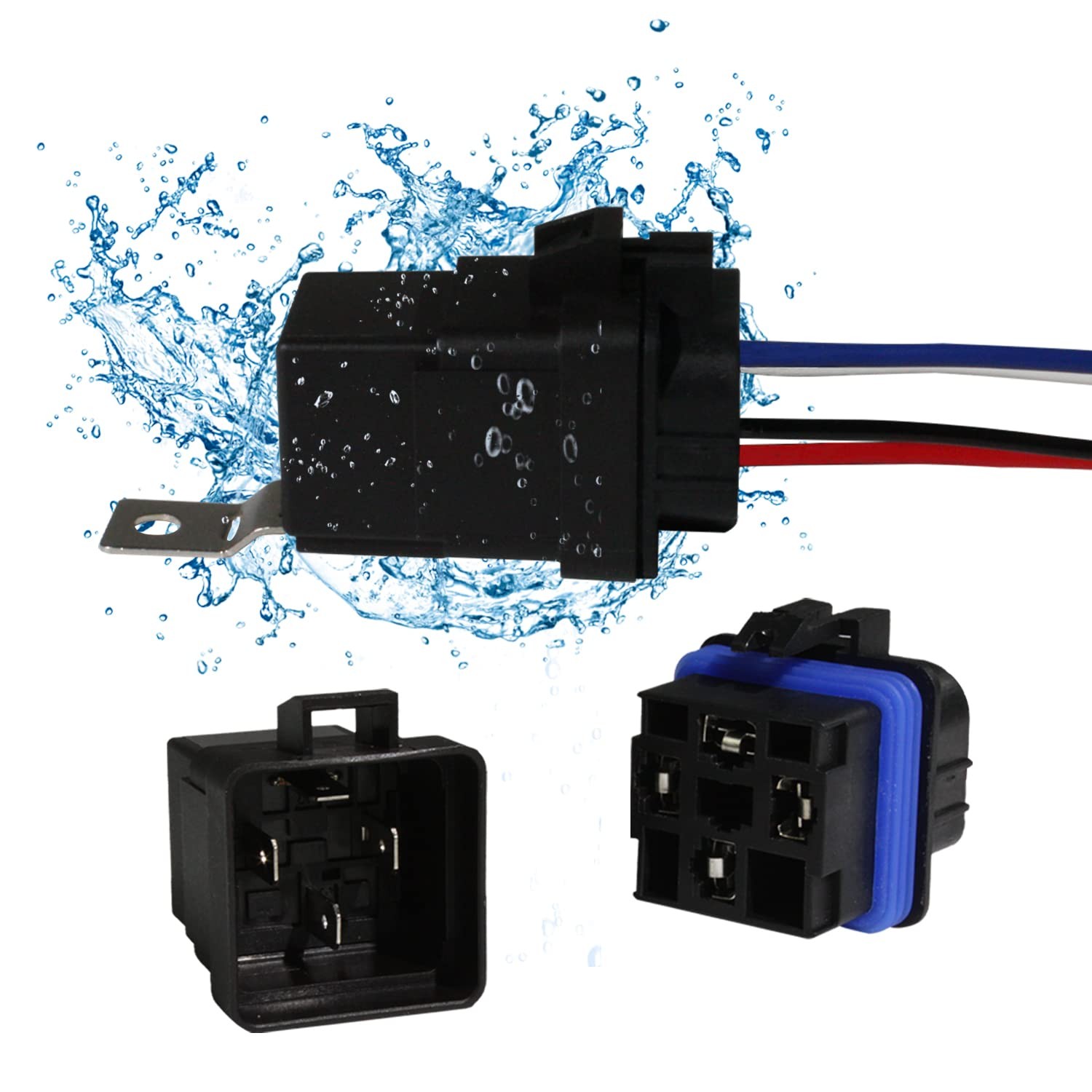

4-PIN 40/30 AMP 12 V DC Waterproof Relay Kit Harness Socket - Heavy Duty 12 AWG For Sale

• 【Function】: 12VDC (14V Max) waterproof 4-Pin SPST (Single Pole Single Throw) Relay with 40A/30A high current carrying capacity, heavy-duty make/break relay. But never go beyond its capabilities, try to stay 10 to 15% below what the rate is for. Widely used in car keys power control, over-load protection, trunk release, power door lock/actuator control, control motors/other electronics etc.
• 【Premium Material】: Durable relay and harness socket with 4 wires; made from high-grade materials to ensure superior quality and long lifespan. Built-in tinned wire makes it can be stored without concern due to its better performance in corrosion resistance and oxidation resistance.
• 【Weatherproof Relay】:The Waterproof relay tightly sealed with strong cap and seal ring, excellent performance of waterproof, to be used on off-road vehicles, boats, and dirt track cars that are often exposed to wet or muddy conditions.
• 【Wire Specifications】: White - Ground (85), Red - VDC (30), Black - Trigger (86), Blue - Output N/C (87). The purchase includes the relay itself and a relay socket/harness with wires. Metal mounting tab is present on the relay for ease of installation.

4Pin SPST Waterproof Relay Socket Plug with Harness

A SIMPLE SOLUTION FOR ADD ELECTRICAL ACCESSORIES

The RoadandLord 4-pin SPST 12V DC 40A/30A waterproof automotive relay is the ideal electrical relay can work in harsh environments for off-road vehicles, boats and dirt road cars that are often exposed to wet or muddy conditions. The purchase includes the relay itself and a relay socket/harness with wires. Metal mounting tab is present on the relay for ease of installation. This kit can be used to install electric cooling fans,Electric fuel pumps,Electric water Pumps,Shaved door handles solenoids,Trunk solenoids,Horns, etc.

Product Description

• Nominal Coil Voltage: 12 VDC
• Coil Power: 1.8 W

• Coil Resistance: 80 Ω

• Must Operate Voltage: 6~8 VDC

• Must Release Voltage: 0.6~3.6 VDC

• Maximum Applied Voltage: 15.6 VDC

• Ratings: NO 80A 14VDC

• Resistance: 100mMAX (at6VDC 1A)

• Max Switching Current: 80A

• Max Switching Power: 840 W


• 12AWG Tinned Copper Wire: Pin 87 Blue

• 12AWG Tinned Copper Wire: Pin 30 Red

• 16AWG Tinned Copper Wire: Pin 85 Black

• 16AWG Tinned Copper Wire: Pin 86 White

• Life Expectancy Electrical: 100,000 Operations (at30 Operations/minute)

• Life Expectancy Mechanical: 10,000,000 Operations

• Temperature Range: -30 ~ +80 degrees Celsius

• Vibration Resistance: 10~55Hz, 1.5mm

• Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g

• Humidity: 40% ~ 85%

• Insulation Resistance: 100mQ Min at500VDC

• Dielectric Strength Between Open : 500VAC (for one minute/sec)

• Between and coil: 750AC (for one minute/sec)

•
