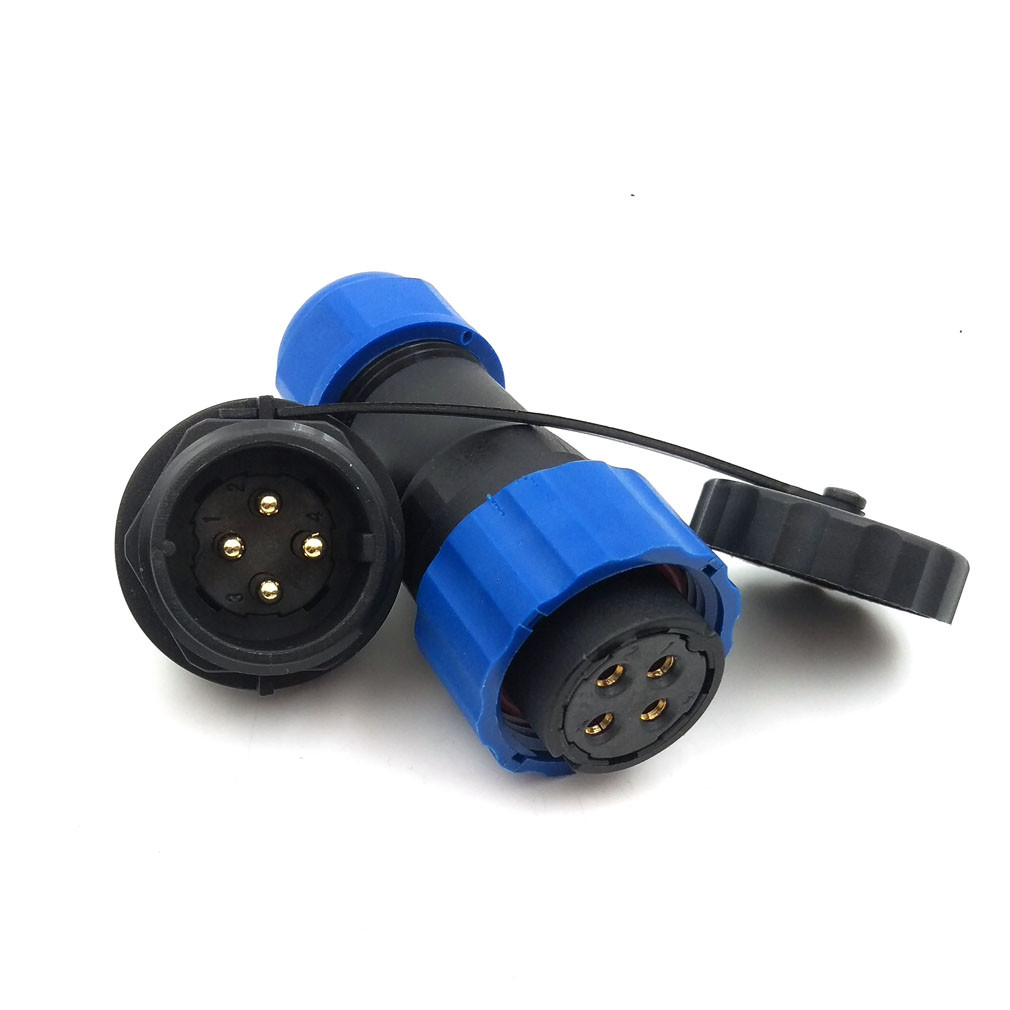

4 Pin Waterproof Connectors,Male Female aviation Power Connector 25A 250V For Sale

Store category

Sign Up Now ! You may also like

SD20 IP68 4Pin Waterproof Connector Male Female Plug Socket Connector 25A AC250V Product Description Specifications
Material: flame retardant nylon
Welded pinhole: beryllium bronze
Seal: EPDM rubber ROHS environmental protection materials
Gender: male female
Connection: screw connection
Combination design style: welding
Shell shape: round
Contact resistance: <5MΩ
Insulation resistance: ≥500MΩ at DC500V
High pressure: ≥ 1000V / 1Minute (under normal 2.5KV water pouring 1.0KV)
Rated current: (FUS-1) 10A (FUS-2) 15A
Operating temperature range:-45℃~+105℃
Sealed protection: 1meter water depth for two weeks
Mating cycles: ≥ 3000 times
Working current support: 25A, 5A,
Strong anti-corrosion, anti-light hydration and other functions
For machinery and equipment, outdoor LED display.
Specific features are as follows:
1. Operating temperature: -45 ° C ~ 105 ° C
2. Relative humidity: 90% ~ 95% (40 ± 2 ° C)
3. Salt spray: 5% NaC1 mist in 48h
4. Sealing: IP68 (2m depth 2h not deep water)
5. Apply cable diameter: Φ6.0 ~ 12.0mm
6. Mechanical life: 500 times
7. Insulation resistance: 500M under normal condition
8. Working Current: Φ2 Contact: 20A, φ1 Contact: 5A
9. Contact Resistance: Φ2 Contacts 2MΩ, 1 Contact: 5MΩ
10. Working Voltage and Withstanding Voltage (Sea Level) Working Voltage: 250V (AC) Withstand Voltage: 2500V (AC) Payment Delivery details Terms of sales About us Contact us Payment
