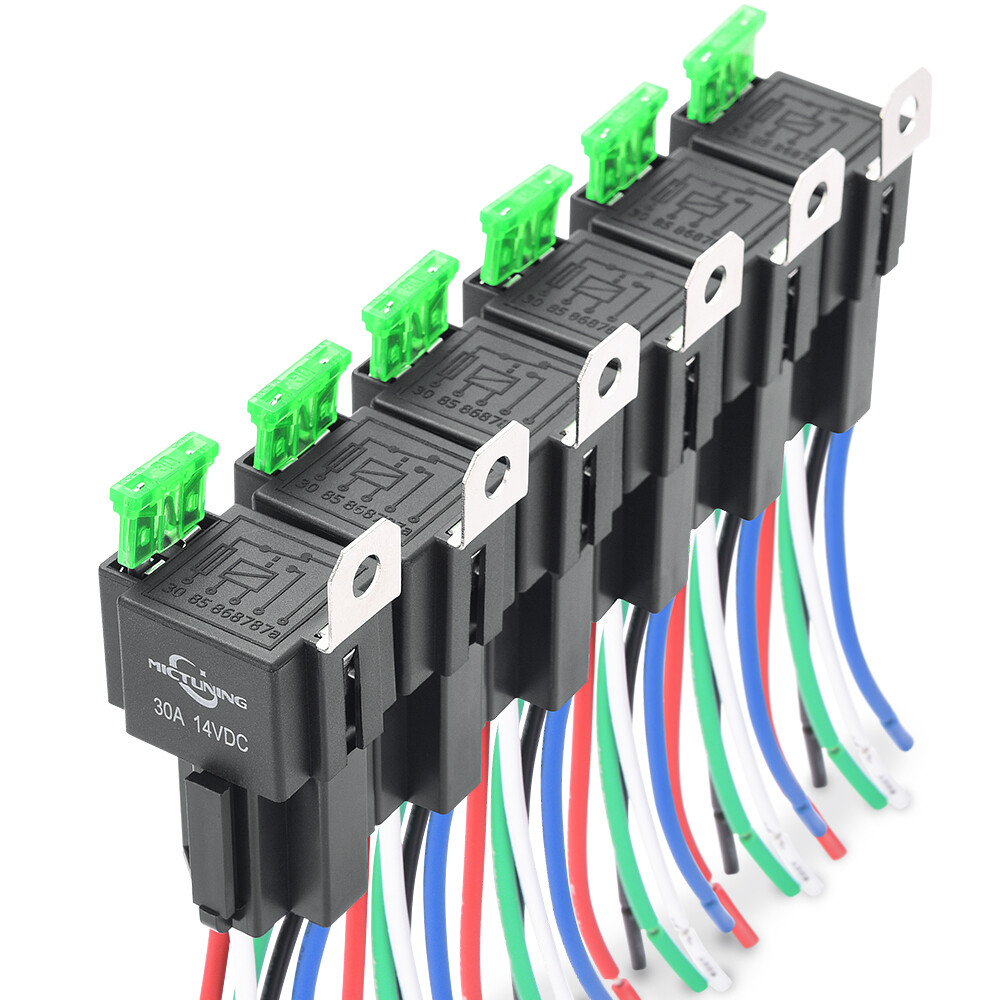

Trailer & Truck PartsTailgate Bike PadCar Bed Cargo Mat & Floor MatRelay/VoltmeterUTV & Motorcycle MirrorsAuto accessories6 Pack 5 Pin Fuse Relay Switch Harness Set 30A 12V Universal SPDT 14 AWG Fuse US30A 12V 5 Pin Fuse Relay Switch Harness Universal SPST 14AWG Fuse 6 PackFeatures:
- Upgraded Version - Automotive relays built in fuse socket with included 30A blade fuse, no need of a separate fuse holder, saving space and money. Heavy duty 14AWG wires for main contact
- Easy Wiring - The relay sockets come with color-labeled wires for loads/accessories convenient wiring. Black - Ground (85), Red - VDC (30), White - Trigger (86), Blue - Output N/O (87)
- Neat Mounting Design - The interlocking design of unique male-female slot on each socket edge, easy to connect all relays together, offering clean and neat installation
- Good Construction - 12V DC (Max@14V DC) and 30A High Switching Capability. 5-Pin SPST (Single Pole Single Throw) Relay. Metal mounting bracket on the electrical relay promotes easy installation
- Wide Application - Wide range of use, greatly used for car lights, fog lamps, wiper, starter, fans, speakers, traction control systems, etc
1. Wide Application:Suits for all automobiles and devices equipped with a 12 Volt DC power source.Used in led work light, fog lamps, starter, wiper, fans, speakers, central locking, alarm, electric windows, etc.2. Instruction of Relays and Harness Sockets:-85: Connected to the ground chassis. Serves as the common ground connection to activate and magnetize the internal coil.-86: Connected to a positive 12V DC input.This is where a switch connected to 12V DC input will be connected to on the relay.When power is sent to the relay through pin 86, the circuit is completed with pin 85 connected to a common ground, which activates and magnetizes the internal coil.-87: Normally open contact, also known as NO.The connection between pin 87 and pin 30 is only made when the internal coil is activated or magnetized.-30: Common contactwhich can be connected to a 12V DC power input or to the ground chassis depending on the desired application.Package Included:6 Relays6 Relay Harnesses6 Blade FusesPaymentDelivery detailsTerms of salesAbout usContact usPayment- We accept internet transfer, bank deposit and all major credit cards through Payoneer.- If you want to delay the payment due to financial issue, please contact us via message within 3 days.Delivery details- ONLY ship to Payment shipping address. Please leave detail address in the order.- As for PR / HI / GU states, please type in "US" on the country blank.
