7 decade 1W Resistance Box Resistor Substitution ✔0~11,111,110 Ohm ✔USA Warranty For Sale

AAA Tech Depot

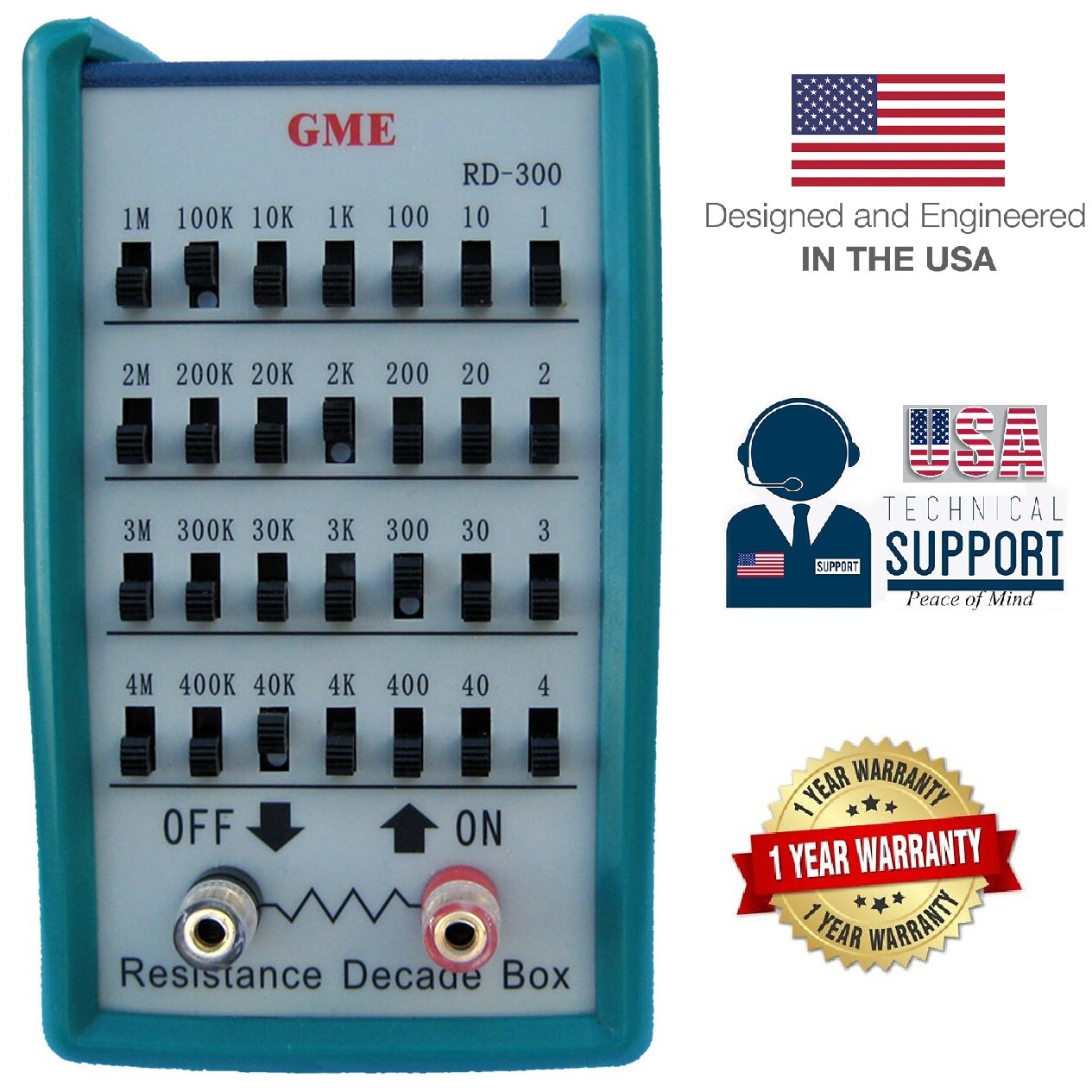

GME RD-300 Resistance Decade Box

* Priority Mail Expedited Shipping within the US with tracking number

* Buy with Confidence, 30-days Money Back Guarantee

* Designed and Supported in the USA

* 1-YR Manufacturer Warranty

Description:

The RD-300 Resistance Decade Box is a convenient tool aiding you both in design and testing as well as calibration of your test equipment. When needed to determine the correct resistance value, the RD-300 offers 7 decades of resistance ranges, from 1 to over 11MΩ (in 1Ω steps). Slide switches allow for easy addition and subtraction of resistance values. Switches that are in the ON position are clearly marked by a white dot below it to easily distinguish it from those that are OFF. A rubber boot allows the user to prop up the unit for ease of viewing and changing of values.

Features:

• High accuracy of 1% best used for calibration of test equipment
• 7 decades of resistance ranges, from 1 to over 11MΩ (in 1Ω steps)
• Switches organized on a clean 4 x 7 grid for easy use
• Each switchdisplaysa visible white dot when in the ON position
• Two binding posts for easy versatile connection with banana plugs, bare wires, spade lugs, or alligator clips
• Idealprototype, experimental and educational use
• Easy to use, lightweight, and class="MsoNormal" style="color: #000000; font-family: Arial; font-size: 14pt;">Technical Specifications:
  • Resistance ranges 1 to 11,111,110Ω in 1Ω steps
  • Internal Resistance 0.3Ω

  • Power 1W Resistors
  • Connection Two (2) binding posts
  • Accuracy 1%

  • Operating conditions Temperature: 32 to 122oF (0 to 50oC) / Humidity: < 80%RH
  • Dimensions/Weight 6” x 3.7” x 1.9"
  • Weight Approx.: 0.95 lbs

  Package Contents:

  • One (1) - RD-300 Resistance Decade Box
  • One (1) - Protective Rubber Holster
  • One (1) - User Manual

  AAA Tech Depot

  Limited Time Special Sale

  Description:


  The RD-300 Resistance Decade Box is a convenient tool aiding you both in design and testing as well as calibration of your test equipment. When needed to determine the correct resistance value, the RD-300 offers 7 decades of resistance ranges, from 1 to over 11MΩ (in 1Ω steps). Slide switches allow for easy addition and subtraction of resistance values. Switches that are in the ON position are clearly marked by a white dot below it to easily distinguish it from those that are OFF. A rubber boot allows the user to prop up the unit for ease of viewing and changing of values.

  Features:

  • High accuracy of 1% best used for calibration of test equipment
  • 7 decades of resistance ranges, from 1 to over 11MΩ (in 1Ω steps)
  • Switches organized on a clean 4 x 7 grid for easy use
  • Each switchdisplaysa visible white dot when in the ON position
  • Two binding posts for easy versatile connection with banana plugs, bare wires, spade lugs, or alligator clips
  • Idealprototype, experimental and educational use
  • Easy to use, lightweight, and class="MsoNormal" style="color: #000000; font-family: Arial; font-size: 14pt;">Technical Specifications:
    • Resistance ranges 1 to 11,111,110Ω in 1Ω steps
    • Internal Resistance 0.3Ω

    • Power 1W Resistors
    • Connection Two (2) binding posts
    • Accuracy 1%

    • Operating conditions Temperature: 32 to 122oF (0 to 50oC) / Humidity: < 80%RH
    • Dimensions/Weight 6” x 3.7” x 1.9"
    • Weight Approx.: 0.95 lbs

    Package Contents:

    • One (1) - RD-300 Resistance Decade Box
    • One (1) - Protective Rubber Holster
    • One (1) - User Manual
    Shipping

    US Domestic Shipping:Priority Mail Expedited Shipping within the US with tracking numberInternational Shipping: Flat rate $25.00 international shipping with USPS (United States Postal Service) International Mail with tracking numberWe also offer international shipping to selected countries through Global Shipping Program. With Global Shipping Program, shipping cost and import tax is calculated during the checkout process. Please see Global Shipping program for detail.

    Returns

    Buy with confidence. We offer 30days money back guarantee.To qualify for the return, buyer should contact us within 30days of your shipping will be paid by the need to be returned in the original packaging with all accessories in order to qualify for the refund.

    Warranty

    1-Year Original Manufacturer Warranty on brand new products.

    response

    Your positive response is very important to usand will help us to continue providing excellent products and services for our customers.




    If you have any question or concern with your order, please contact us first instead of leaving negative response. We will try our best toresolve anyissue with your purchase. Thank you.

    GME RD-300 Resistance Decade Box

    * Priority Mail Expedited Shipping within the US with tracking number

    * Buy with Confidence, 30-days Money Back Guarantee

    * Designed and Supported in the USA

    * 1-YR Manufacturer Warranty

    Description:


    The RD-300 Resistance Decade Box is a convenient tool aiding you both in design and testing as well as calibration of your test equipment. When needed to determine the correct resistance value, the RD-300 offers 7 decades of resistance ranges, from 1 to over 11MΩ (in 1Ω steps). Slide switches allow for easy addition and subtraction of resistance values. Switches that are in the ON position are clearly marked by a white dot below it to easily distinguish it from those that are OFF. A rubber boot allows the user to prop up the unit for ease of viewing and changing of values.

    Features:

    • High accuracy of 1% best used for calibration of test equipment
    • 7 decades of resistance ranges, from 1 to over 11MΩ (in 1Ω steps)
    • Switches organized on a clean 4 x 7 grid for easy use
    • Each switchdisplaysa visible white dot when in the ON position
    • Two binding posts for easy versatile connection with banana plugs, bare wires, spade lugs, or alligator clips
    • Idealprototype, experimental and educational use
    • Easy to use, lightweight, and class="MsoNormal" style="color: #000000; font-family: Arial; font-size: 14pt;">Technical Specifications:
      • Resistance ranges 1 to 11,111,110Ω in 1Ω steps
      • Internal Resistance 0.3Ω

      • Power 1W Resistors
      • Connection Two (2) binding posts
      • Accuracy 1%

      • Operating conditions Temperature: 32 to 122oF (0 to 50oC) / Humidity: < 80%RH
      • Dimensions/Weight 6” x 3.7” x 1.9"
      • Weight Approx.: 0.95 lbs

      Package Contents:

      • One (1) - RD-300 Resistance Decade Box
      • One (1) - Protective Rubber Holster
      • One (1) - User Manual
