Features:
X-Series Wideband AFR Controller Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers
Includes 4.9LSU wideband UEGO sensor
Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
Compatible with vehicle/system voltages up to 16V
0-5V & RS232 output for data logging and response control, net (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
Can display AFR values in hundredths of %
52mm gauge diameter and slim gauge depth
User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display

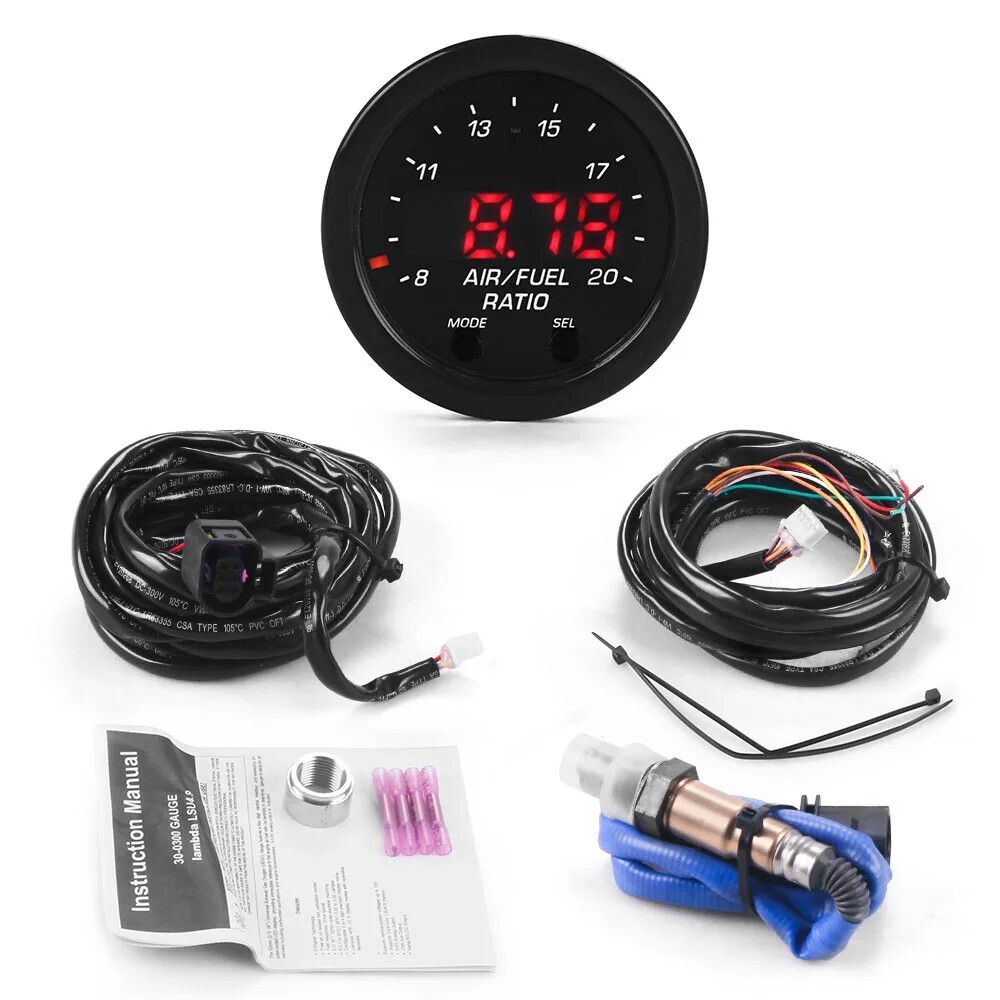

The X-Series Wideband AFR Sensor Controller Gauge (PN 30-0300) measures 2 1/16th-inch (52mm) in diameter and features a modern,
visually striking faceplate and new seven-segment center display that is 87% larger than the 30-4110 Wideband Gauge’s center display.
This creates the perception of a larger overall gauge, but in a common 52mm size for easy mounting.
Its slim depth and ultra-slim cup depth dramatically increases its application base and potential mounting locations.
The X-Series Wideband AFR Gauge has a user configurable display via buttons on the gauge face that allows you to change AFR values for different fuels, Lambda or O2%,
change the center display to three or four digits, perform a free-air calibration if desired as the sensor ages, and change the CAN message ID when linking multiple X-Series
Inline Controllers or X-Series Controller Gauges. A black bezel and black dual-faced faceplate for air/fuel and Lambda are included.
Locking connectors ensure a positive connection between the harnesses and gauge and a new single board design adds to the new gauge’s durability.
The gauge includes a 0-5v and RS232 Serial Port output for response control and data logging, and an net (CANbus) output for data logging.
net allows additional X-Series Wideband Controllers to be daisy chained together (up to 16 cylinders) for recording AFR in multiple cylinders.
It supports vehicle/system voltages up to 16V, and can be used on EFI or carbureted applications,
and dynamometers in applications using gasoline, methanol, ethanol, Diesel, propane, and CNG.
