ALL NEW DESIGN Carlson SuperProbe 2 MK2 w/More Parts PCB DIY SMD Kit & 39 Parts For Sale

Carlson SuperProbe 2
MK2 More Parts Kit
Two SMD PCBs (39 unique Parts)
(Complete Probe Hardware Not Included!)

ALL NEW PCB DESIGN

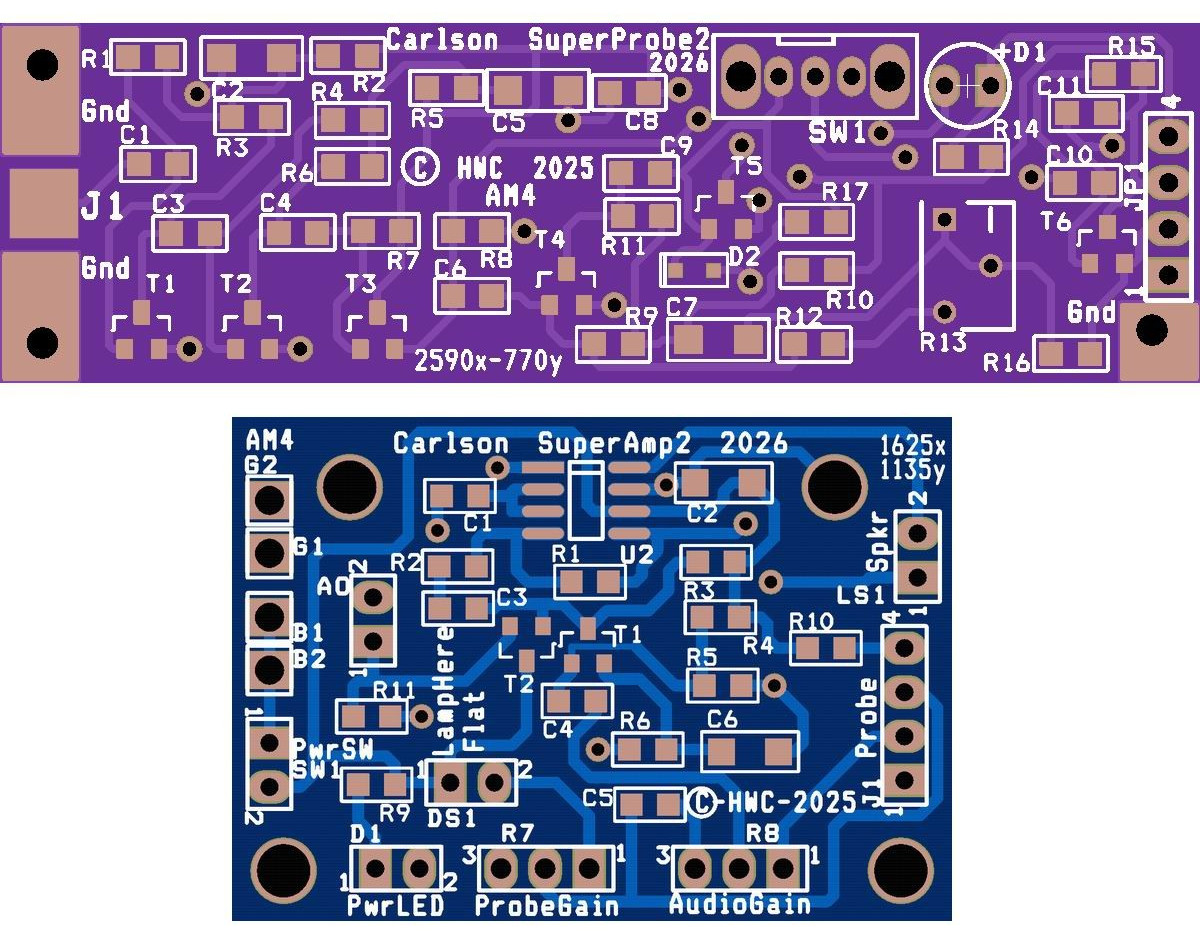

New and Improved Amplifier & Probe PCBs.Amp PCB

• Through-hole pads for all connections to PCB
• Uniform horizontal orientation of SMDs for easier assembly
• PCB mounted POT protection lamp
• NEW optional buffer transistor for auxiliary audio output signal
• Dedicated PCB connections for LED, switch, lamp, speaker, audio, POTs, power, ground
• 1625x / 1135y (mils)

Probe PCB

• Through-hole pads for cable connections to PCB
• Ground plane
• Mounting holes
• Uniform horizontal orientation of SMDs for easier assembly
• Improved LED driver circuit
• 2590x / 770y (mils)

(No affiliation with Mr Carlson's Lab)

As with our previous version of the SuperProbe, this SuperProbe2 conforms to the original Carlson circuit design, implementing a versatile non-contact very high gainelectronic probe for investigating just about any kind of electrical signal from audio to RF. The design is well proven and constructed by many DIYers.
Anyone interested in building the probe should first review:

Carlson's YouTube video @
Yannick99 @ thru-hole Design: EEVBlog Thread: search for many other reviews and assembly hints.

Here is a great UT video of Carlson using the SuperProbe to locate a noisy component inside a complex transceiver.He makes it seem so easy, and with the SuperProbe it Kit This kit includes the main PCBs, (including all the SMD parts) the 2 pots and protection lamp,and many of the needed support parts like 3-conductor probe cable, knobs, power switches, probe-amp jack &plug, power LEDwire &shrink tube, and now coax probe tip.There are many other components needed to construct a complete probe and amplifier.The kit includes all of the through-hole and SMD components used to assemble the PCBsas well as the 2 pots used in the amplifier. It DOES NOT include cases, packaging, screws,batteries, speaker, or anything else that might be needed to construct a complete SuperProbe.(Essentially everything within the dotted boxes labeled MK2 on the included schematics is in the kit!)You have the option to construct the PCBs exactly as Carlson specified, or implement the improvements we discuss in the instructions.These PCBs REQUIREASSEMBLY.The AssemblyWhile there are a few through-hole & panel mounted components, all of the remaining parts are 0805/1206/SOT23 SMD parts.Soldering such components requires specific equipment, soldering tools, solder, tweezers, optics, skill and patience.Follow the included instructions in detail. Schematic details are included and are identical to the original design.

Some of the listing photos show a particular implementation in a very compact package.Such compactness is not necessary, but demonstrates what can be achieved. Photos may include componentsnot on the bill-of-material, and are included as suggestions for completing the probe.

See Our Battery-Pack and Case-Kit Options Too Check our listing for a Li-Ion battery pack & charger module. #166266862893 our listing for a Case Kit including battery, charger and assorted components. List: There are 29 unique components and 59 total parts required in assembling the PCBs (MK1 kit). We do supply a few extra components for some parts for a total of 70 parts.
This kit (MK2) contains another 11 support parts (39 total) that are used to assemble the Amp and Probe PCBs into housings.See photos please for complete list.
Sale ParticularsBuyers Note:
collects 12-25% of the final price of every transaction on this platform, so it is an expensive place to run a small business. We try to provide a good value to customers anyhow.Warranty return is 30 days, buyer pays return shipping. Flat First Class (GA) Shipping with Tracking. Ask questions before ordering.
