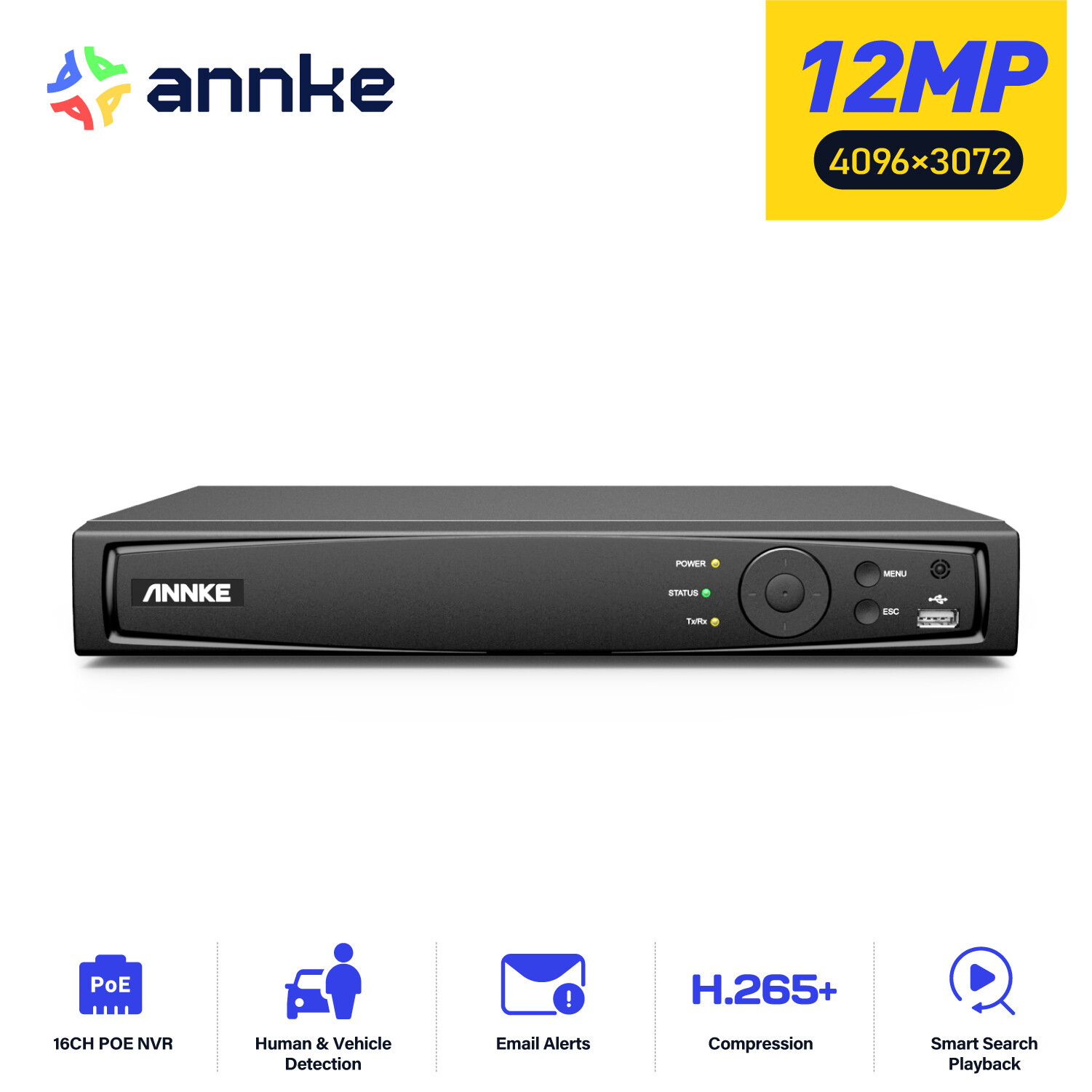

2023ANNKE 12MP UHD 16CH PoE NVR
Makes 24/7 Unfailing Recording a Breeze
Top-tier and Vivid 12MP Full Ultra-HD
This NVR not only delivers crisp images with finer details but also maximizes support for 12MP IP camera access. Of course, 4K/6MP/5MP/4MP/3MP/2MP IPC are all can connected.
Smart Human&Vehicle Detection
Supports IPC access with AI human&vehicle detection function. Besides, NVR also supports 4-channel AI function, even this IPC(no more than 4MP) without AI function, which can reduce up to 99% false alarms to make your life easier.
Ingenious Smart Event Detection
Working with IPC that has a smart detection function, which can detect objects crossing line uni- or bi-directionally, and detect objects whether intruding into the defined zones, crossing into or out of the drawn regions.
Multiple Recording & Playback Modes
The PoE NVR can record 24/7 footage continuously during the scheduled times or only when movement is detected. You can select instant playback, event playback (motion detection, privacy mask, video loss & tampering), smart playback, and time-based playback among playback modes.
Plug & Play PoE Setup
You would just need an Ethernet cable to connect the PoE security camera (not included) to this NVR for video & power transmission, which can achieve the remote transmission and the transmission distance can be increased from 330ft to 820ft.
Expandable to Max. 16TB Capacity
The expandable NVR comes with 2 SATA ports, allowing you to install 2 hard disk drives (up to 8TB each HDD) for a maximum of 16TB local capacity. Just store your videos locally without worrying about data overwriting or missing vital events.
- Flexible ON-VIF Compatibility
This NVR can integrate with third-party ON-VIF PoE security cameras (up to 12MP resolution), so you can integrate any ON-VIF surveillance camera from any brand with this system for seamless connectivity.
- Remote Access with All Devices
With free ANNKE Vision App & Client, you are able to access & control the network video recorder remotely via 3G/4G/5G or WiFi from your smartphones, tablets or computers, browsers (Google Chrome, Safari, Firefox, Microsoft Edge, Internet Explorer, etc.).
- Customized Motion Areas & Privacy Mask
You can always customize motion detection with specific motion zones, like doorsteps, garages. You will receive instant alerts only when motion events happen in the customized areas. To protect your privacy, you can set up the privacy mask, and the NVR system will ignore the masked zones when recording videos.
- Real-Time App Pushes & Email Alerts
When the NVR detects any difference, it will push instant app notifications and email alerts to you, so that you can access the system to check the motion events and take actions to prevent possible intrusion.
- Industry-Leading H.265+ Video Format
Keep the exceptional 12MP Ultra HD footage without the 12MP file sizes thanks to the ANNKE's exclusive leading H.265+ video format. It records longer videos and saves up to 75% storage space than H.264 coding, providing a smooth 12MP stream without using all the data.
- Bank-Level Encryptions & Protocols
Secured by 128-bit encryptions, unique activation password, verification code for live stream, SSL & HTTPS protocols, the video transmission and download are extremely hackproof from top to bottom.
NVRVideo & AudioVideo CompressionH.264+/H.264/H.265/H.265+IP Video Input16CH PoEVideo OutputHDMI up to 4K, VGA up to 1080pAudio Input/Output1/1 RCAIncoming/Outgoing Bandwidth160/80 MON-VIF ProtocolsSupportMax Recording ResolutionUp to 12MP(4096 X 3072)Max Playback ResolutionUp to 12MP(4096 X 3072)Max Playback Channel16CHMax Playback Capacity1-ch@12 MP,3-ch@4 MP,6-ch@1080pHard DriveHDD2 SATA InterfaceHDD CapacityUp to 8 TB Capacity for each disk
External InterfaceNetwork InterfaceRJ45 X1 (10/100/1000 M)PoE16, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/atUSB2X USB 2.0Smart FunctionDeep learning16-ch Human and vehicle targets detection(Need IP camera support)Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting
detection(Need IP camera support)4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP)GeneralOperating PowerAC 100-240 VPower Consumption≤15 W (Without HDD and PoE)Working Temperature14 °F ~ 131 °F/-10 °C ~+55 °CPoE: Max 25.5 W for Single PortDimensions (W X H X D)15.2” X 12.4” X 2.0”/385 X 315 X 52 mmWeight (Without Hard Disk)6.6 lbs./3 kg
