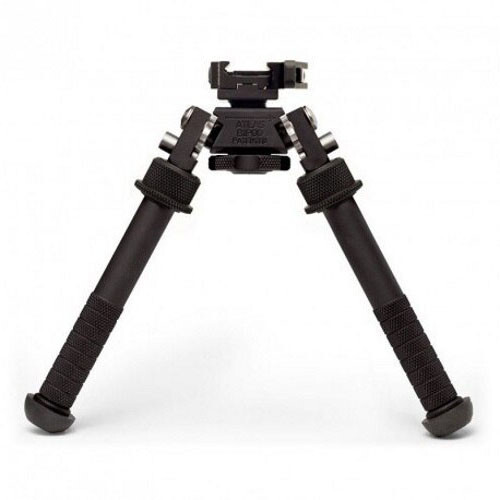

ATLAS BT46-LW17 PSR: Standard height with ADM 170-S Lever For Sale

The BT46-LW17 PSR (Precision Sniper Rifle) Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever. It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. The BT46-LW17 was selected for the SOCOM PSR (Precision Sniper Rifle) Weapons System. Available in black only.

• Height Range: 4.75 - 9.0\" approximately
• Preloaded Pan: 15 degrees +/-
• Preloaded Cant: 15 degrees +/-
• Fore and Aft pivot limiting Bosses
• 5 leg positions: 0, 45, 90, 135 and 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Larger, stronger inner legs
• Weight: 13.61 ounces
• Footprint: 8 - 11\"
• LW17 : L ever Mount W ith ARMS 17 S Mount;
• UHMW components used for smooth tracking
• Preload on Pan and Cant can be tightened by means of the knurled knob
• Picatinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount
• Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
• Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
• Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of five positions ¾\" apart
• Optional 3\" Leg Extensions to increase height
• Standard soft, durable Rubber feet that are suitable for many surfaces
• Optional interchangeable Ski, Spike, Cleat and Spiked Cleat feet easily swapped in the field with the press of a stainless steel plunger with a bullet tip
• Optional mounting systems available for Accuracy International and Sako rifles

Made in the USA
