**RESTRICTED TO SHIP TO CALIFORNIA**

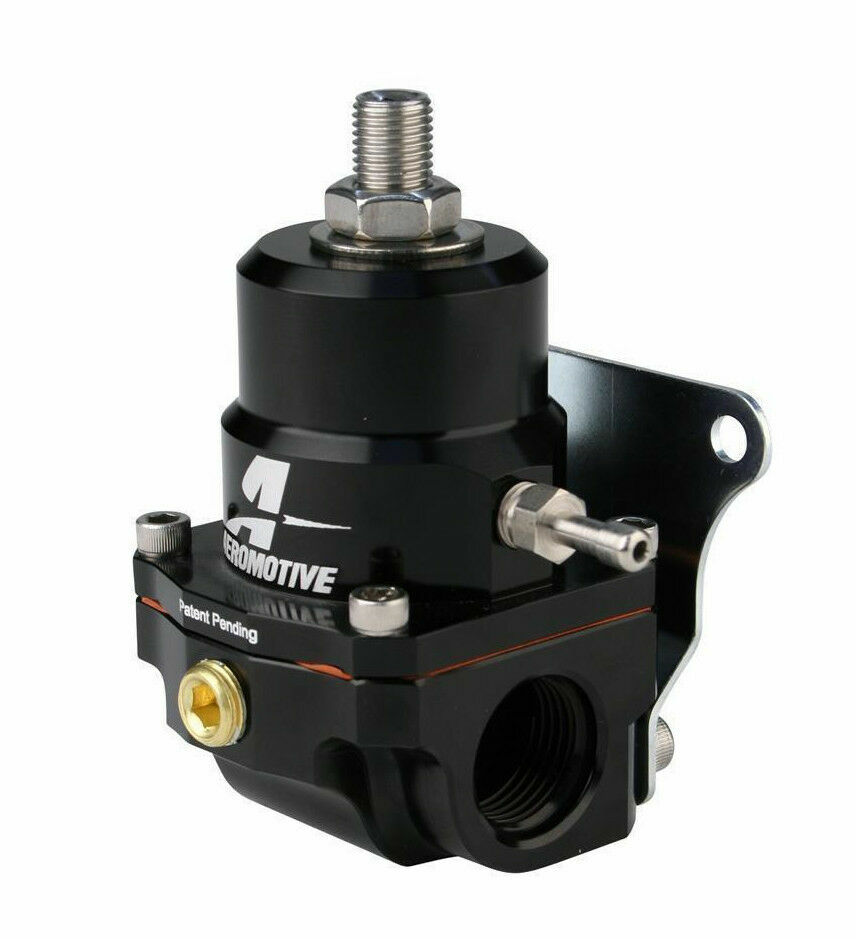

High Performance, adjustable EFI regulator designed for medium to
high horsepower applications. This regulators features Aeromotives
high-flow design, superb pressure control and legendary durability.
- Engineered for A1000 class and smaller pumps.
- Gas, Ethanol, Methanol & Diesel compatible.
- 40-75 PSI adjustable base pressure range.
- 1:1 vacuum/boost reference capability.
- 1/8 NPT dedicated gauge port.
- (2) ORB-08 inlet/outlet ports
- (1) ORB-06 return port.
Recommended fittings for inlet/outlet ports:
- ORB-08 to AN-06 for AN-06 fuel line.
- ORB-08 to AN-08 for AN-08 fuel line.
- ORB-08 to AN-10 for AN-10 fuel line.
Recommended fittings for return port:
- ORB-06 to AN-06 for AN-06 fuel line.
- ORB-06 to AN-08 for AN-08 fuel line.
