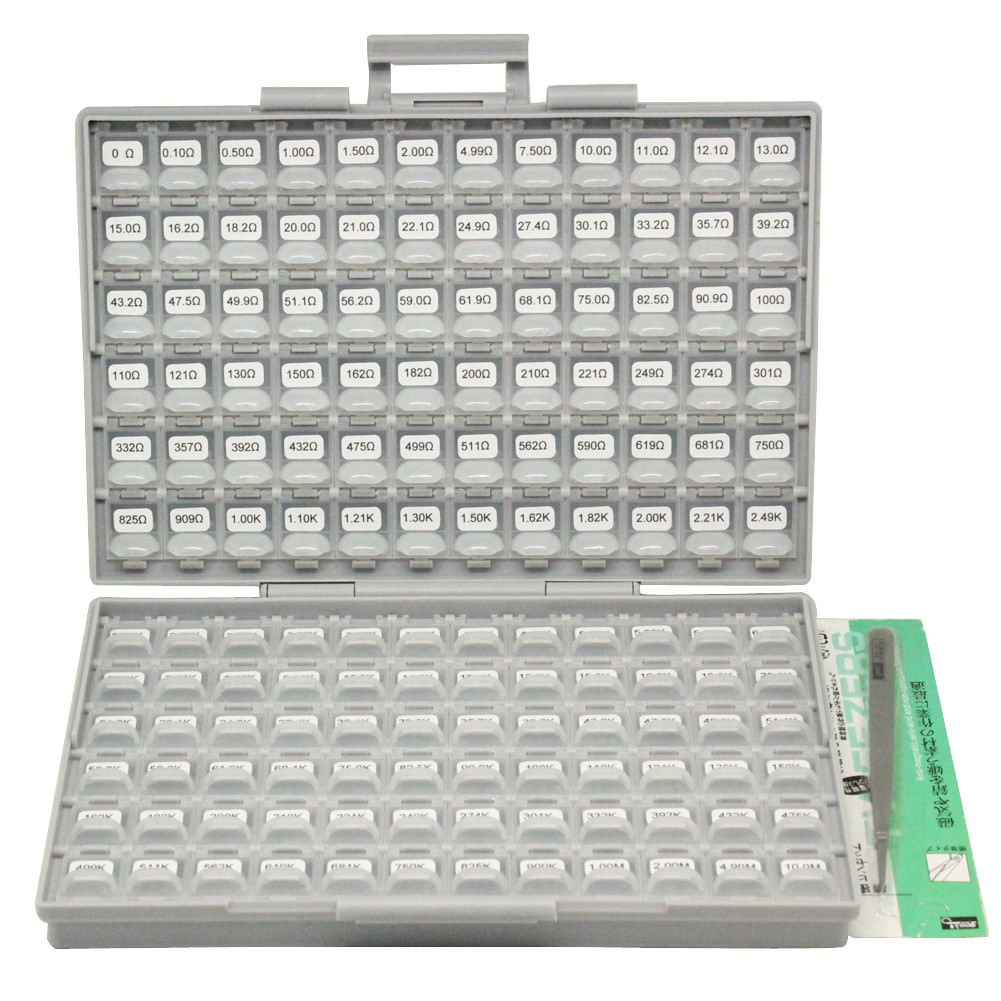

144 values1206 size 1% RoHS 100PC/Value Resistor Kit withEnclosure
144 values1206 size 1% 100PC/Value Resistor Kit in the Enclosure.Containing all the values in the EIA Standard E-24 series from 0ohm to 4.99MThose resistor are 1% ±100ppm/°C thick film surface mount resistors separately stored in the enclosure.
SMD Enclosure has 144 compartments.
Each component value is printed on each lid.
Easy to locate and access any value components.
Easy to transport the enclosure to other places.
Put it on a shelf to keep the bench top clean.
This resistor kit comes with 144 x 100 = 14400 PC1206 1% resistors and an enclosure, all resistors are distributed in this patented enclosure.
1206 Resistor Specifications
TypeThick film 1206 size chipTolerance1%Resistor Dimensions(mm)3.20 (+0.10) (L) x 1.6 (+0.10) (W) x 0.55(+0.10-0.05) (H)
top terminator 0.45 + 0.20 (L) bottom terminator 0.4+0.20 (L)RatingsPower@700C1/4 W Max Working Voltage200VMax Overload Voltage400V Operating Temp.-550C+1250CTemp. Coefficient+100 ppm/0CCharacteristicsTemperature Cycling+(0.5%+0.05W) Low Temp Operation+(0.5%+0.05W)Short Time Overload+(1.0%+0.05W)Resistance to solder heat+(0.5%+0.05W)Loading life in moisture+(0.5%+0.05W)Resistance to dry heat+(1.0%+0.05W) Load Life+(1.0%+0.05W) Bending Strength+(1.0%+0.05W) Intermittent Overload+(0.5%+0.05W) SolderabilityCoverage > 95%Marking4 digit indication: 1st 3 significant, 4th multiplier
144Value List: 1 unit of 1206 resistor kit
1 unit of Tweezer
Shipping: USA orders will shipped from USA, other orders will be shipped from China, thank you
