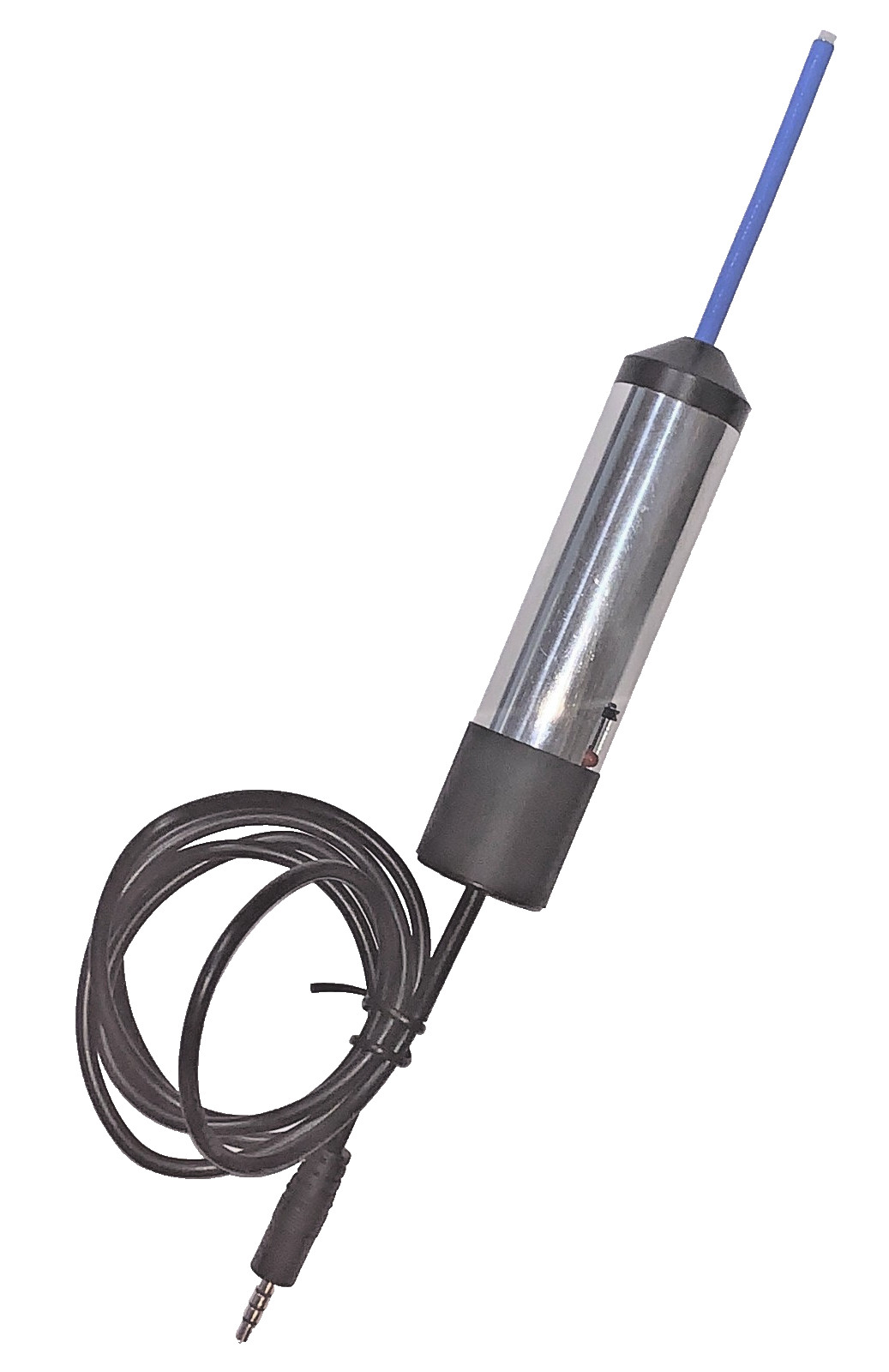

Carlson Super ProbeDIY MK2 to MK3A Upgrade Kit
- CNC Machined Aluminum Probe Body Kit
- Delrin End Caps
(MK2 Kit, Speaker, Battery & Amp Case Not Included!)Some pictures show additional components supplied in MK1/MK2kits so buyers see how the Aluminum Probe is assembled. This kitincludes ONLY the parts listed in the table below.
(No affiliation with Mr Carlson\'s Lab)
As seen on YouTube and commented on on many other sites, Paul Carlson designed a very useful non-contact very high gain electronic probe for investigating just about any kind of electrical signal from audio to RF. The design is well proven and open-sourced.
Anyone interested in building the probe should first review:Carlson\'s YouTube video @ @ search for many other reviews and assembly hints.
Here is a great UT video of Carlson using the SuperProbe to locate a noisy component inside a complex transceiver.
He makes it seem so easy, and with the SuperProbe it Aluminum Probe KitThis kit includes ONLY the additional items needed to house the MK2 kit probe PCB in a metal housingas is listed below!
Aluminum Probe Part List
The following components are used in the Aluminum probe body.
1. Machined aluminum probe body with Delrin End Pieces
2. Machined acetyl PCB carrier
3. Copper adhesive grounding tape
4. 3 #0-80 x 1/8\" RH PCB mounting screws5. 2 #0-80 x 5/16\" FH end-cap screws
6. 1 #4-40 x 1/4\" BH carrier screw
7. Heat shrink tube to optionally insulate the metal probe8. 1\" x 1/4\" HST to protect cable
The AssemblySome soldering and mechanical assembly is required.
