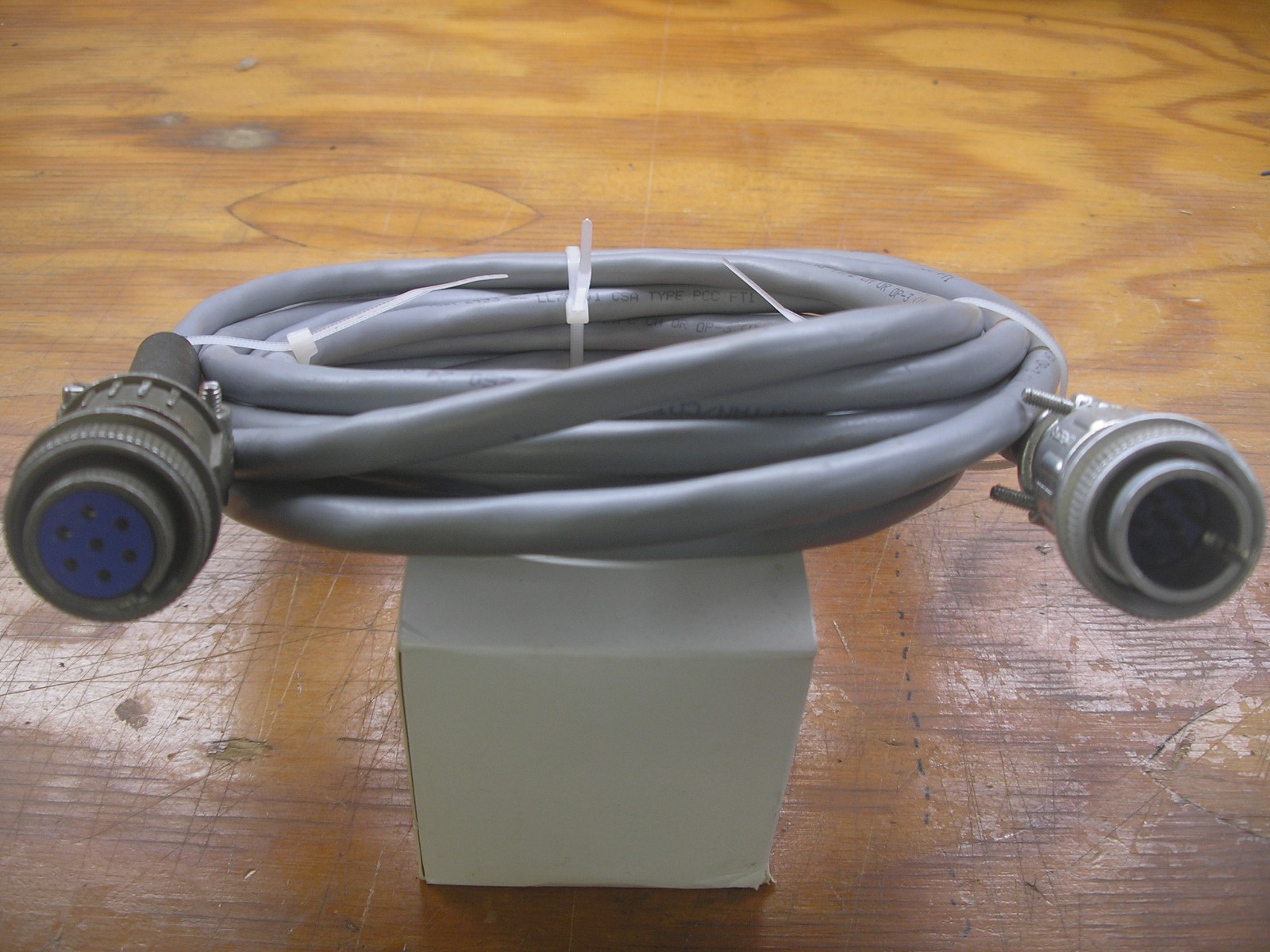

Amphenol Military Spec Connectors & Cable Assy. (15\' Length w/ M-F Connectors)
15 foot long Cable – Manhatten/CDT P/NM39250
TheManhattan/CDT P/N M39250 (often listed under Alpha Wire) is a 24 AWG multi-paircommunication and control cable. It features 3twisted pairs (6 conductors total) with stranded tinned copper, aluminum foilshielding for noise protection, and a slate PVC jacket. It is rated for 300 Vand temperatures between -20°C and 75°C.
CONNECTOR ARRANGEMENT
7 pin Female Connector,with strain relief , one end
Connector ---- Amphenol (Shell - 9707-MS3106A16S-1S ) (Insert–16S-1SF )
Strain Relief Clamp &Rubber Bushing - Amphenol 97-3057-08A
7 Pin Male Connector, with strain relief, other end
Connector -----Amphenol (Shell 97-3107A) (Insert - 16S-1PF) Strain Relief Clamp & Rubber Bushing – AmphenolAN-3057-8
Connector, with strain relief,other end – Amphenol AN-3057-8 (7 pinMale)
