Genuine Anderson SB175 Power Connector Kits 175A / 600V High-performance quick disconnect connectors for demanding high-current applications Choose Your Configuration

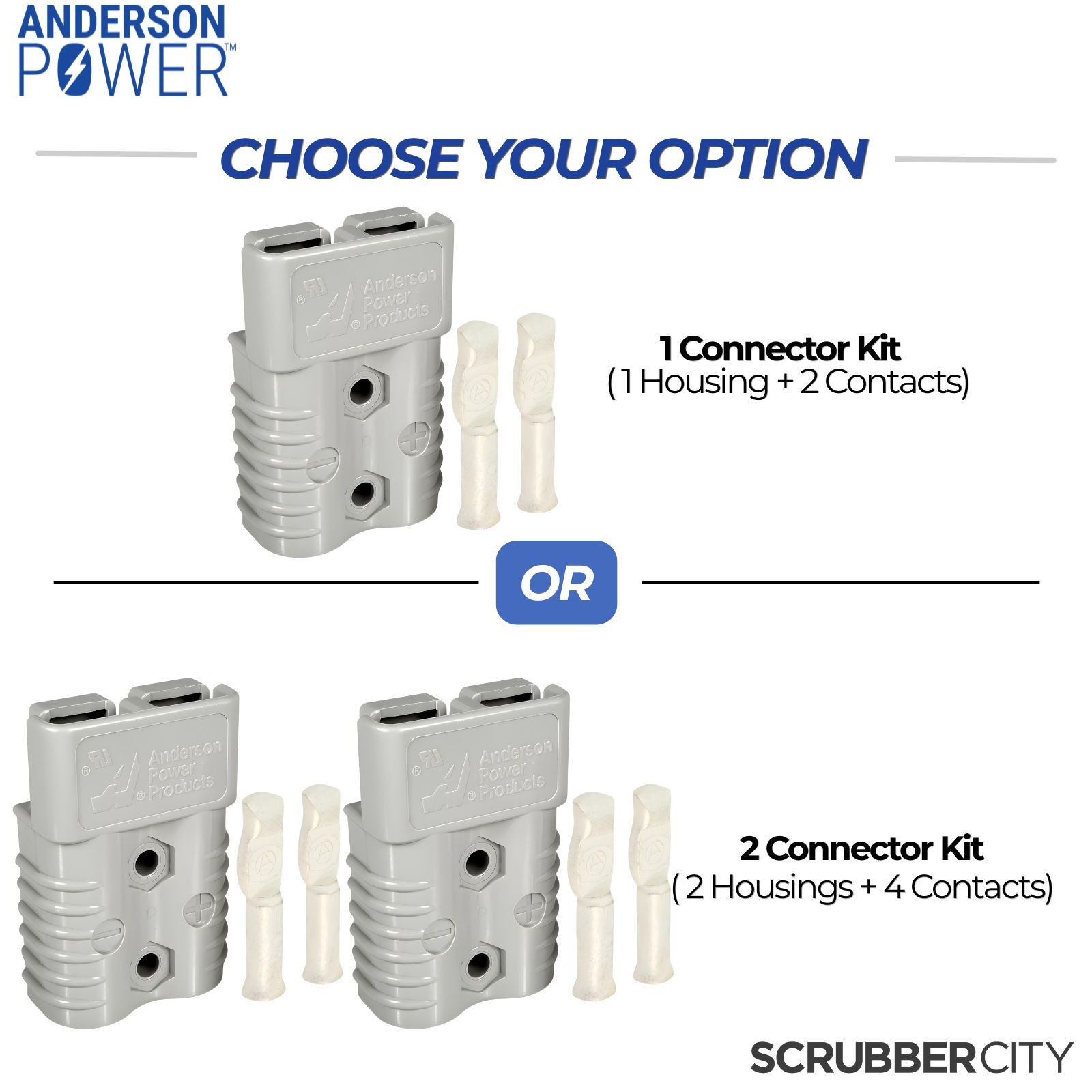

1 Connector Kit
Includes: 1 Housing + 2 Contacts (pins)
One complete connector
2 Connector Kit
Includes: 2 Housings + 4 Contacts (pins)
Two complete connectors
Available Wire Sizes
- 6 AWG – Light Duty
- 4 AWG – Medium Duty
- 2 AWG – Heavy Duty
- 1/0 AWG – Maximum Load
Not sure? Most SB175 applications use 2 AWG or 1/0 AWG.
Color Options (Keyed Connectors)
Gray • Red • Orange • Yellow • Blue
Color Part Number Bulk Part Number Gray 940 940-BK Red 949 949-BK Orange 942 942-BK Yellow 943 943-BK Blue 941 941-BK
Important: Connectors are color keyed and will only mate with the same color.
Contact (Pin) Sizes Included Wire Size Loose Piece PN Approx. mm² 1/0 AWG 1382 53.5 mm² 2 AWG 1383 33.6 mm² 4 AWG 1384 21.1 mm² 6 AWG 1348 13.3 mm²
Each kit includes contacts matched to your selected wire size.
Silver-plated copper contacts are designed for high conductivity, low resistance, and long service life.
Specifications Current Rating 175 Amps Voltage Rating 600V AC/DC Mating Cycles Up to 10,000 Wire Range 6 AWG to 1/0 AWG Max Cable Insulation Diameter 0.600 in Contact Resistance ~0.100 milliohms Materials
- Housing: Impact-resistant polycarbonate
- Contacts: Copper alloy, silver plated
- Spring: Stainless steel
- Flammability: UL94 V-0
Applications
- Forklifts and industrial equipment
- Battery systems and chargers
- Solar and inverter setups
- RV, marine, and mobile power
- Winches and high-current connections
Installation Notes
- Contacts must match your selected wire gauge.
- Proper crimping is recommended for best performance.
- Larger wire provides lower resistance and improved efficiency.
- Contacts are not interchangeable between wire sizes.
Why Choose These? Reliable high-current performance, secure fit, long service life, and industry-standard SB175 compatibility in multiple color and wire size options. Built for Performance. Designed to Last.
