Arken Optics
Rifle Scope
1-8x28 FFP
34mm Tube
MOA
KLBOX FFP MOA Reticle
Includes Rigid Precision Mount 34mm-0 MOA (ARP-34Z)
EP8-18KLB
ACTION CONCEPTS is an Arken Optics Authorized Dealer

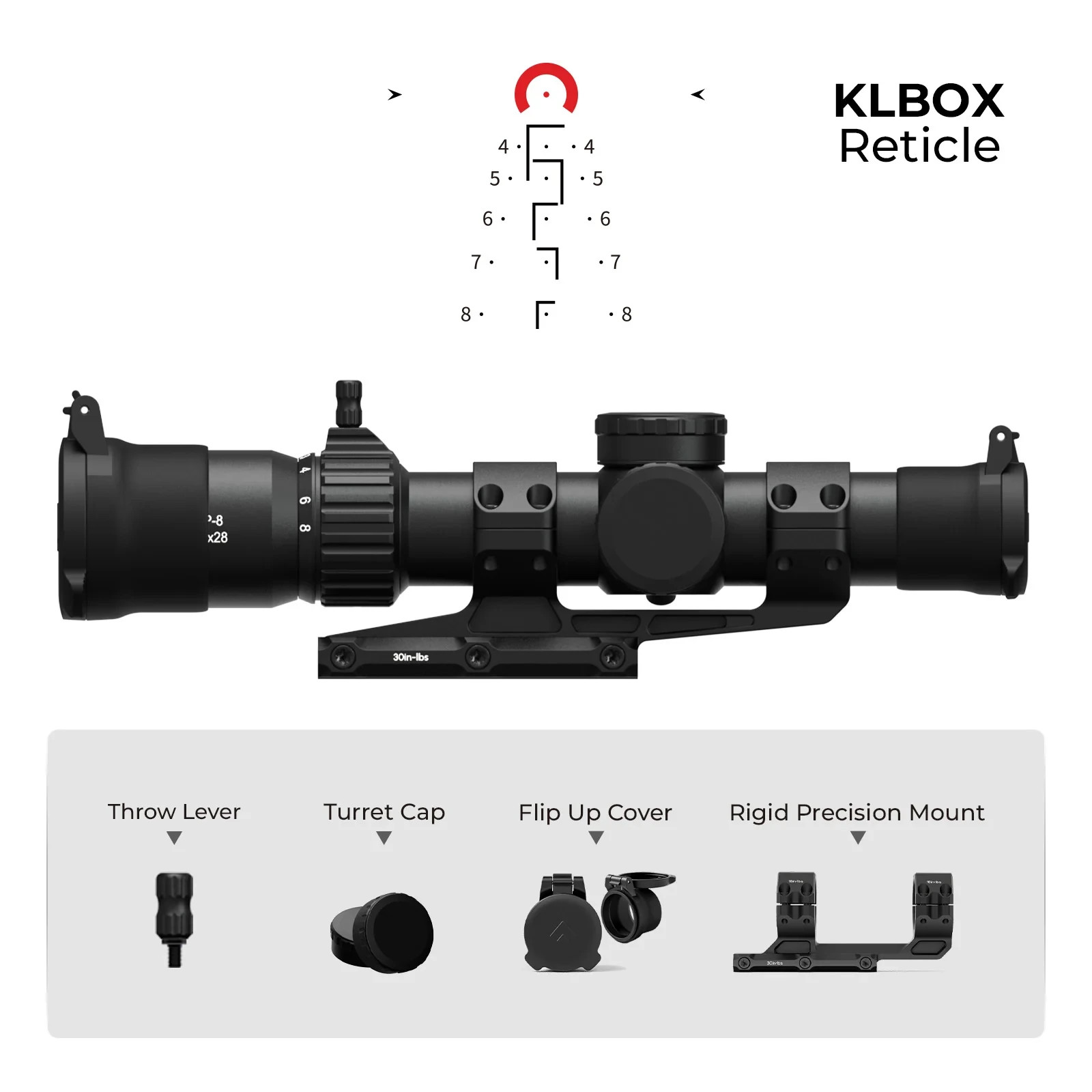

EP-8 1-8X28 FFP KL BOX, 34mm Tube, with ARL34 Mount
The LPVO (Low Power Variable Optic) has long since earned its place, bridging the gap from holographic/red-dot types to high magnification optics not traditionally well suited in CQC (Close Quarter Combat) situations. With ever increasing capability, the LPVO has become a staple, allowing tactical teams and competitive shooters to get the most out of any particular member instantly. The EP-8 1x-8x thing edges and wide FOV (Field of View) make this true 1x perfect for close quarters, with a quick throw of the lever to 8x increasing effective range at a moments notice.
The EP-8 Leveled and Installed Edition comes standard with a factory-installed and calibrated Rigid Precision Mount (34 mm, 0 MOA), eliminating the hassle of separate mounting and leveling. No torque wrenches or bubble levels required. The optic is range-ready right out of the box.
Specifications:
Magnification: 1-8x
Objective Diameter: 28mm
Eye Relief: 3.74 inches
FOV (Field of View) at 1x: 121.15\' 22 deg
FOV (Field of View) at 8x: 14.56\' 2.78 deg
Tube Size: 34mm
Turret Adjustment: 1/4 MOA
Reticle Position: FFP (First Focal Plane)
Reticle Details: BDC (Bullet Drop Compensator) - KLBOX (see below)
KLBOX - Known Length Box
Elevation Adjustment Range: 110 MOA
Windage Adjustment Range: 110 MOA
Illuminated Reticle: Red
Turret Rotation: CCW (Counter Clockwise)
Throw Lever: Integrated / Removable
Weight: 21oz.
Color: Matte Black
Battery (Not Included): CR2032
Flip-Its Included: Yes
Sunshade Included: No
