Atlas 10"/12" Metal Lathe Change Gears – Heavy-Duty (Single Gear or 12-Pc Set):
$9.99

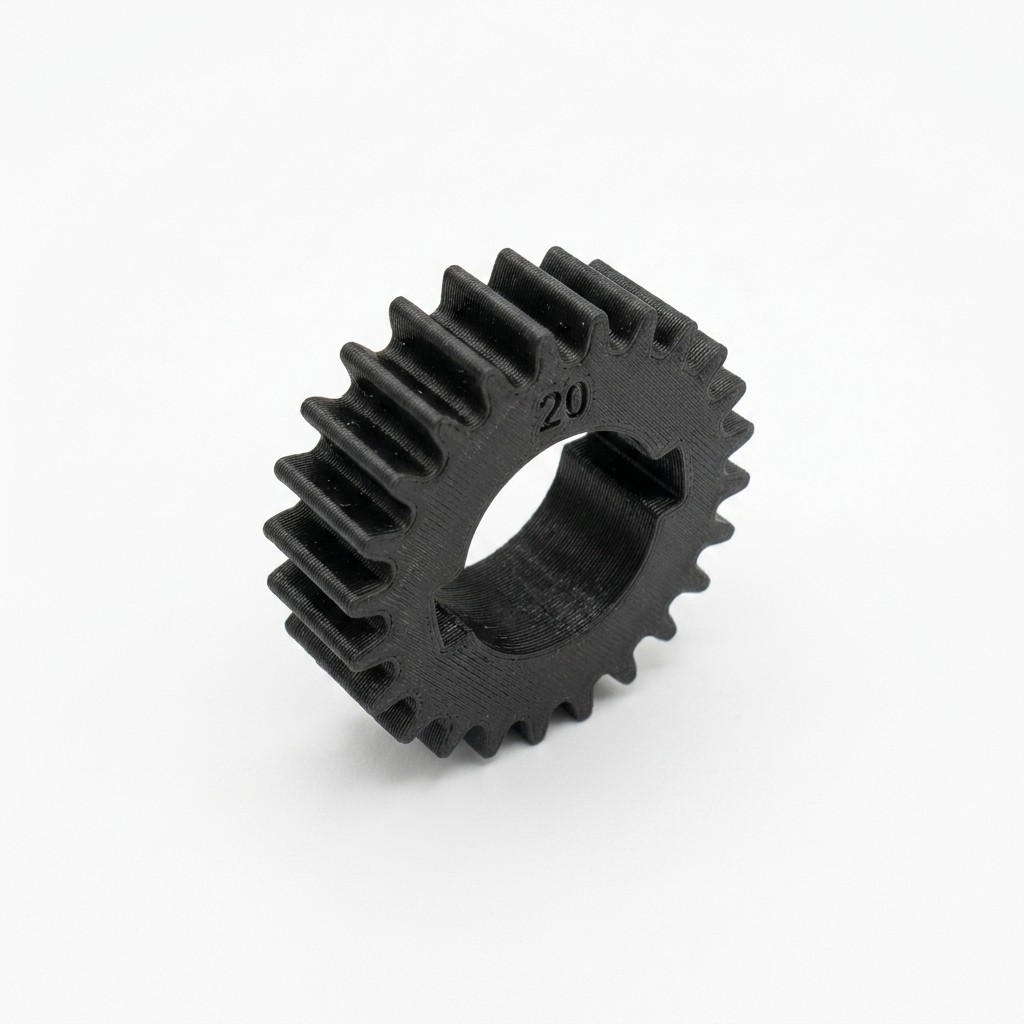

Heavy-Duty PETG Replacement Change Gears for Atlas 10" & 12" Metal Lathes
Keep your metal lathe running smoothly with precision-printed PETG replacement change gears. Designed to match original factory dimensions, these gears deliver a secure fit, dependable performance, and reduced drive train friction—whether you need a single replacement or a full setup.
Purchase Options
Single Gears: Select your required tooth count from the dropdown menu.
Complete 12-Piece Set: Get the full restoration package, which includes (2) 20T, (2) 32T, (2) 64T, and (1) of every other standard tooth count in the original change gear set.
Technical Specifications
Material: Durable, impact-resistant PETG plastic
Keyed Center Bore: 3/4"
Keyway: 3/16"
Center Hub Width: 1/2"
Gear Face Width: 7/16" standard (20, 24, and 32 tooth gears feature a reinforced 1/2" face width)
Friction Clearance: Gears with 36+ teeth feature a 1/16" face recess on one side to optimize gear train movement and eliminate drag.
Need a non-standard tooth count not listed? Send a message—custom tooth counts are available upon request!
