Automotive Multimeter Digital Car Diagnostic Tool with Inductive RPM Pickup CAT For Sale

Product Description:

This automotive diagnostic multimeter is designed for professional mechanics and serious DIYers. It combines 12 essential measurement functions with a dedicated inductive RPM pickup for accurate engine speed testing. From fuel injector pulse width to ignition dwell angle, this tool handles a wide range of automotive and electrical diagnostic tasks with True RMS accuracy and CAT III 1000V safety protection.

Key Features:

• Complete automotive diagnostic tool with 12 functions including voltage, current, resistance, capacitance, frequency, duty cycle, pulse width, dwell angle, diode, continuity, temperature, and RPM

• Inductive RPM pickup included for contactless engine speed measurement on 2-stroke, 4-stroke, and DIS ignition systems

• True RMS for accurate AC measurements on non-sinusoidal waveforms found in modern vehicles

• Non-contact voltage detection for quick and safe live wire checks

• Data hold, peak hold, and max/min recording for capturing intermittent signals

• Auto-ranging with manual override for user control

• Large 6000-count LCD display with bright white backlight for clear readings in any environment

• Auto power off after 15 minutes to extend battery life

• Double insulation and fused inputs (20A/500V and 0.8A/500V) for operator protection

Measurement Functions & Ranges:

• DC Voltage: 600mV to 1000V

• AC Voltage (True RMS): 600mV to 750V, 40-400Hz

• DC Current: 60mA, 600mA, 20A (30 sec max)

• AC Current (True RMS): 60mA, 600mA, 20A (30 sec max)

• Resistance: 600Ω to 60MΩ

• Capacitance: 9.999nF to 60.00mF

• Frequency: 9.999Hz to 9.999MHz

• Duty Cycle: 1.0% to 99.0%

• Pulse Width: 1.0 to 10.0ms

• Dwell Angle: 4, 5, 6, 8 cylinders

• Diode Test: 1mV resolution

• Audible Continuity: Buzzer below 50Ω

• Temperature: -20°C to 1000°C with K-type thermocouple

• Non-Contact Voltage Detection: ≥90V AC

• RPM: 60 to 12,000 RPM with inductive pickup

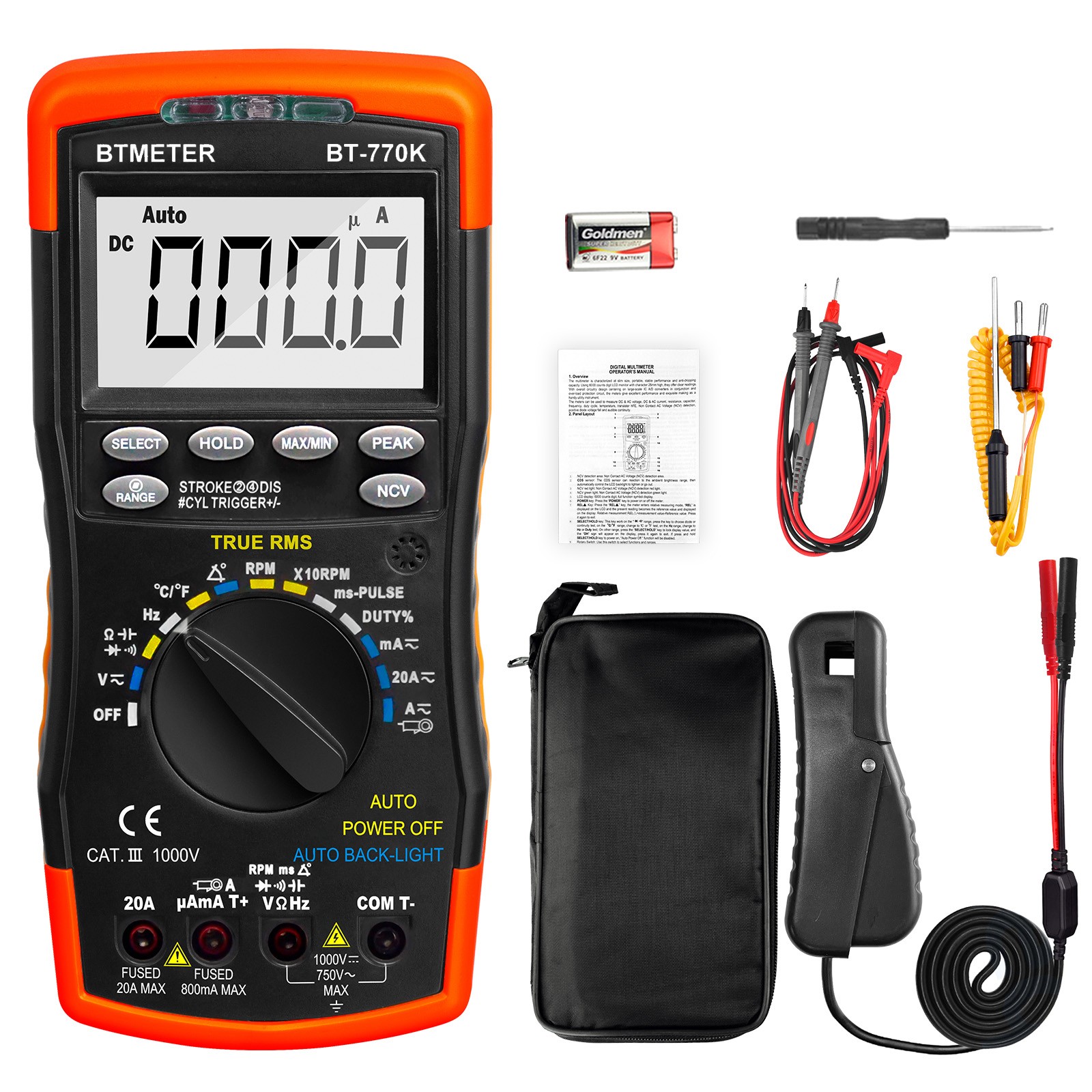

What\'s Included:

If you choose \"Only inductive RPM pickup\" which is not include Multimeter.

• 1 x Automotive multimeter

• 1 x Inductive RPM pickup

• 1 x Pair of test leads

• 1 x Pair of alligator clips

• 1 x K-type thermocouple

• 1 x 9V battery

• 1 x User manual

Safety & Certification:

• CAT III 1000V / CAT IV 600V rated per IEC 61010-1

• Double insulation (Class 2)

• Fused protection on current inputs

• 12-month warranty included

Perfect For:

• Automotive repair and engine tuning

• Fuel injection system diagnostics

• Electrical circuit troubleshooting

• DIY car maintenance and upgrades

• Vocational training and automotive courses
