BEI SENSORS Incremental Optical Rotary Encoder H20EA-37HBS-SS-360-AC-28VV-SM14:
$259.28

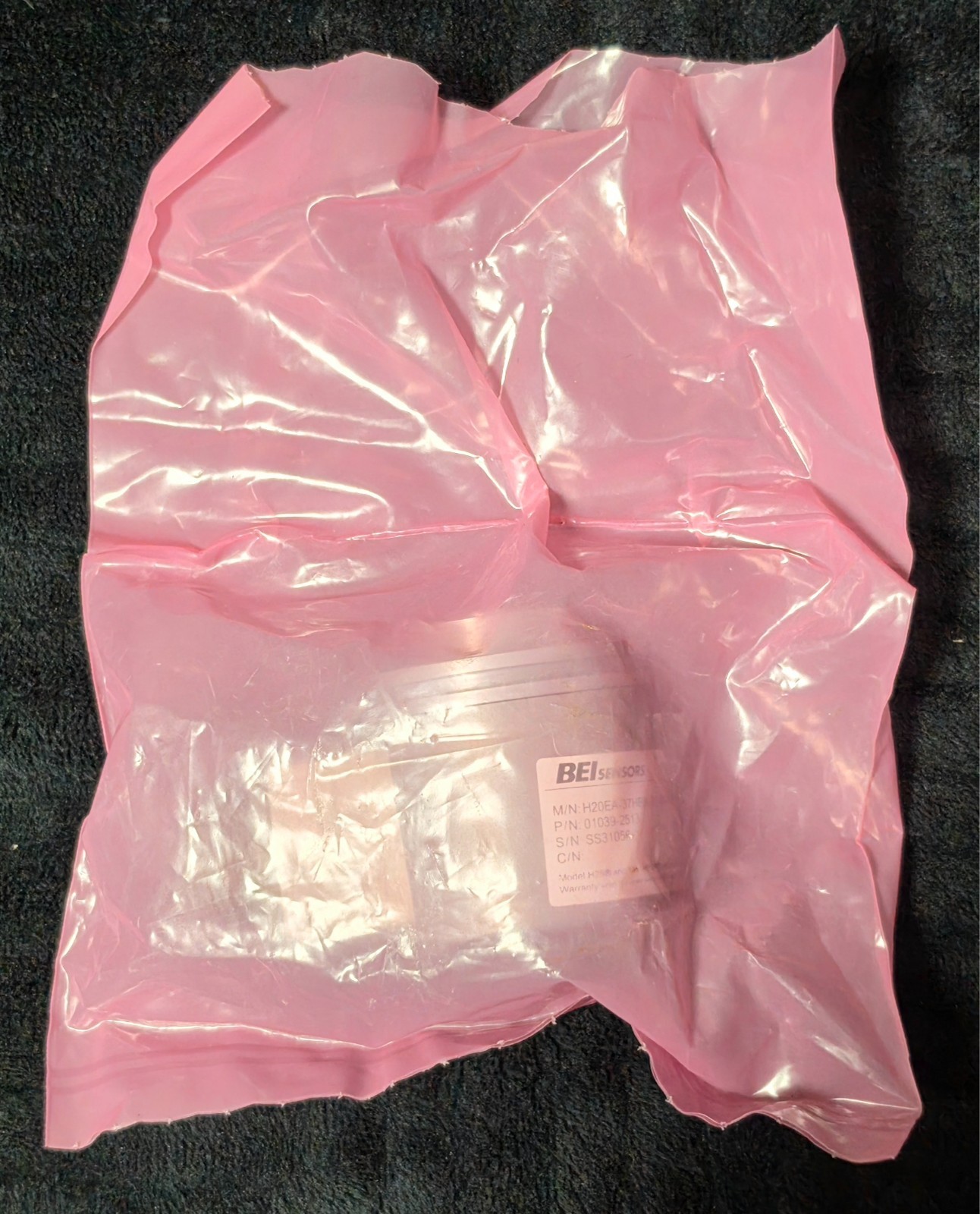

UNIT IS BRAND NEW, FACTORY SEALED IN ORIGINAL STATIC-PROOF PACKAGING.
The BEI Sensors H20EA-37HBS-SS-360-AC-28VV-SM14 is a heavy-duty, industrial incremental optical rotary encoder manufactured by Sensata Technologies.Below is the technical breakdown of what each part of this model number represents based on the official BEI Sensors H20 series specification nomenclature:Part Number Breakdown
- H20: Series type. Represents the H20 Series, a heavy-duty, 2.0-inch diameter industrial housing.
- EA: Mounting configuration. Specifying a specialized flange or housing style variant.
- 37: Shaft size. Indicates a 0.375" (3/8-inch) solid shaft diameter.
- HBS: Special mechanical options. Commonly denotes hub-shaft styles or specific application configurations.
- SS: Environmental sealing. Indicates that a shaft seal is included, providing a ruggedized enclosure rating (typically IP66 / NEMA 4).
- 360: Resolution. The encoder produces 360 Cycles Per Turn (CPT / PPR).
- AC: Output channels. Dual quadrature channels (A and B) with complementary/differential signals.
- 28VV: Voltage and logic. Operates on a 5 to 28 VDC input with matching Line Driver output (Voltage in equals Voltage out).
- SM14: Termination layout. A Side Mount (SM) connector configuration utilizing a standard 14-pin military-style (MS) connector.
