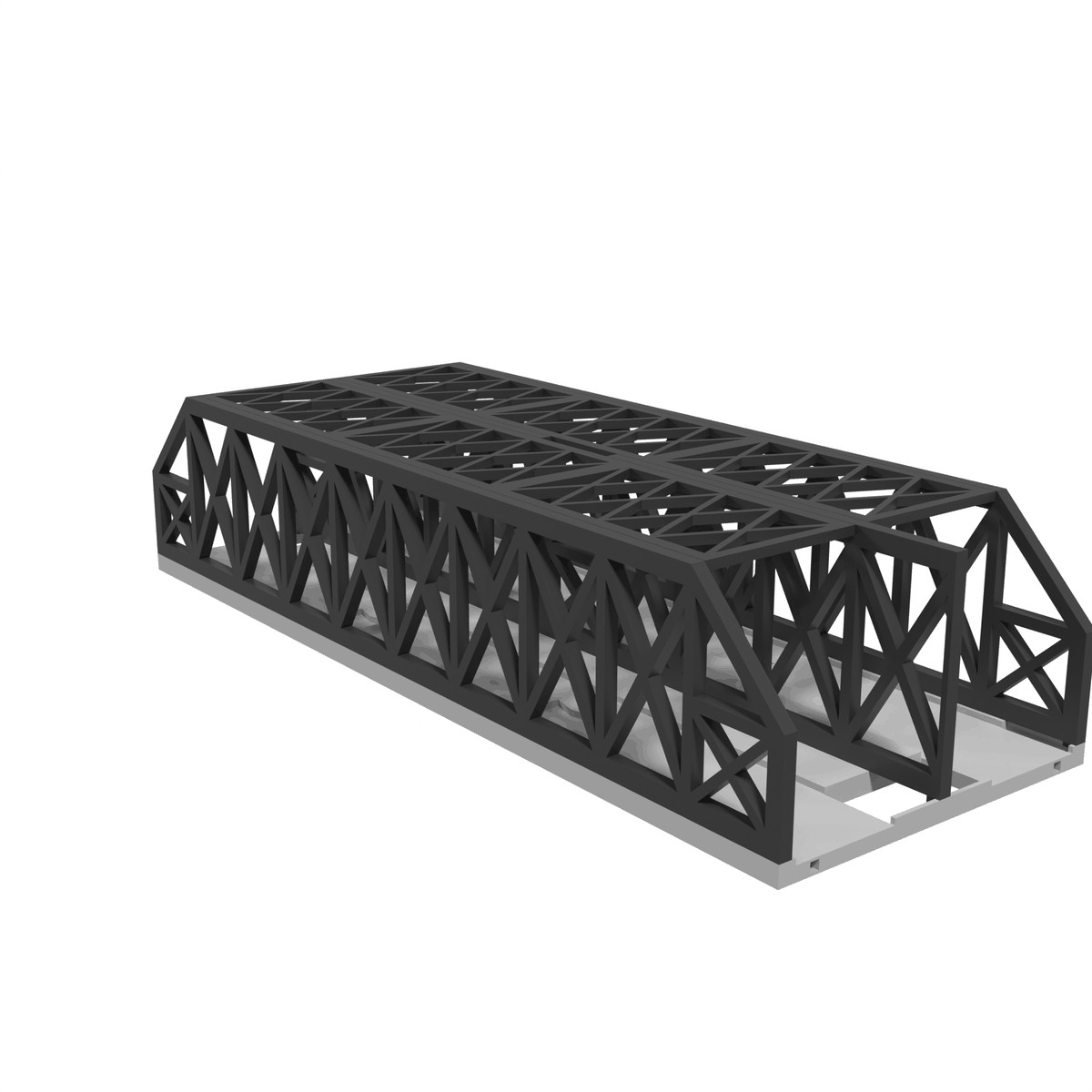

Bachmann E-Z Track, Modular Bridge, X-Beam DUAL Track 18 inch WITHOUT PILLARS For Sale

The X-Beam truss bridge for two parallel lines of Bachmann E-Z Track: a 457.2 mm (18 in) span with a third truss running between the tracks, so each track crosses inside its own lattice bay. Assembled from three full-width floor plates, six X-braced wall halves (four side, two centre) and six roof lattice panels - one run per track. The E-Z Track roadbed drops into the sunken deck channels - two 9 in E-Z straights per track fill the span exactly and lock the floor joints. The wall halves butt flush at midspan; walls and roof are bench-assembled into one rigid double-H frame that drops onto the floor pegs in a single move - no glue anywhere. The end floors carry click-in seats for our dual-track X-brace E-Z pillars, so a bridge on joint-n pillars runs level with E-Z track on joint n+1. Pick the floor color and the panel color separately - the preview shows exactly your combination. In the box: 3 floor plates, 6 wall halves (4 side + 2 centre), 6 roof panels, 4 end pegs and 4 dovetail keys. A set of two joint-12 X-brace pillars is added to the basket automatically along with this bridge - remove it there if your layout already has pillars. Independently designed for use with Bachmann E-Z Track; not affiliated with or endorsed by Bachmann.Color options:Floor: Light Gray, Dark GrayPanels: Light Gray, Dark Gray, Black, White
