Bio-Rad iCycler iQ Multicolor Real-Time PCR Detection System — complete three-piece system consisting of the iCycler Thermal Cycler base, the iCycler iQ Optical Module, and the iCycler Optical System Power Supply.
WHAT'S INCLUDED
- Bio-Rad iCycler Thermal Cycler — Serial No. 582BR 011615
- Bio-Rad iCycler iQ Optical Module — Serial No. 584BR 4071
- Bio-Rad iCycler Optical System Power Supply — Model WSX4001
- Power cords and RS-232 interface cable as pictured
TECHNICAL SPECIFICATIONS
Thermal Cycler Base (582BR)
- Peltier-driven heating and cooling system for rapid ramp performance
- 96-well reaction block format, 0.2 mL tubes/plates
- Thermal gradient capability for annealing temperature optimization
- Input: 100–120 / 220–240 VAC, 50–60 Hz
- Max Power: 910 VA
- Fuses: 100–120V T 8A / 220–240V T 4A
- Rear voltage selector currently set to 115V
- Rear DB9 (RS-232) serial port for PC communication
- Front control panel: backlit LCD, alphanumeric keypad, F1–F5 soft keys, ENTER/BACK/STOP, directional pad
- CE marked, EN 61010-1, Made in U.S.A.
iQ Optical Module (584BR)
- Multicolor real-time fluorescence detection module, mounts directly to the thermal cycler base
- Broad-spectrum light source with filter-based optical design allowing selection of optimal excitation and emission wavelengths for discrimination between multiple fluorophores Bio-Rad
- CCD detector with a 350,000 pixel array for simultaneous imaging of all 96 wells Bio-Rad
- Fan-cooled 50-watt tungsten-halogen excitation source
- Compatible with SYBR Green I and standard multiplex fluorophore chemistries
- Made in U.S.A.
Optical System Power Supply (WSX4001)
- Input: 100–250 VAC, 50/60 Hz, 2.5–1.0 A
- Output: 5V @ 3A, 12V @ 5A, −12V @ 250 mA, 24V @ 500 mA
- ON/OFF rocker switch, CE / TÜV certified, Made in U.S.A.
CONDITION

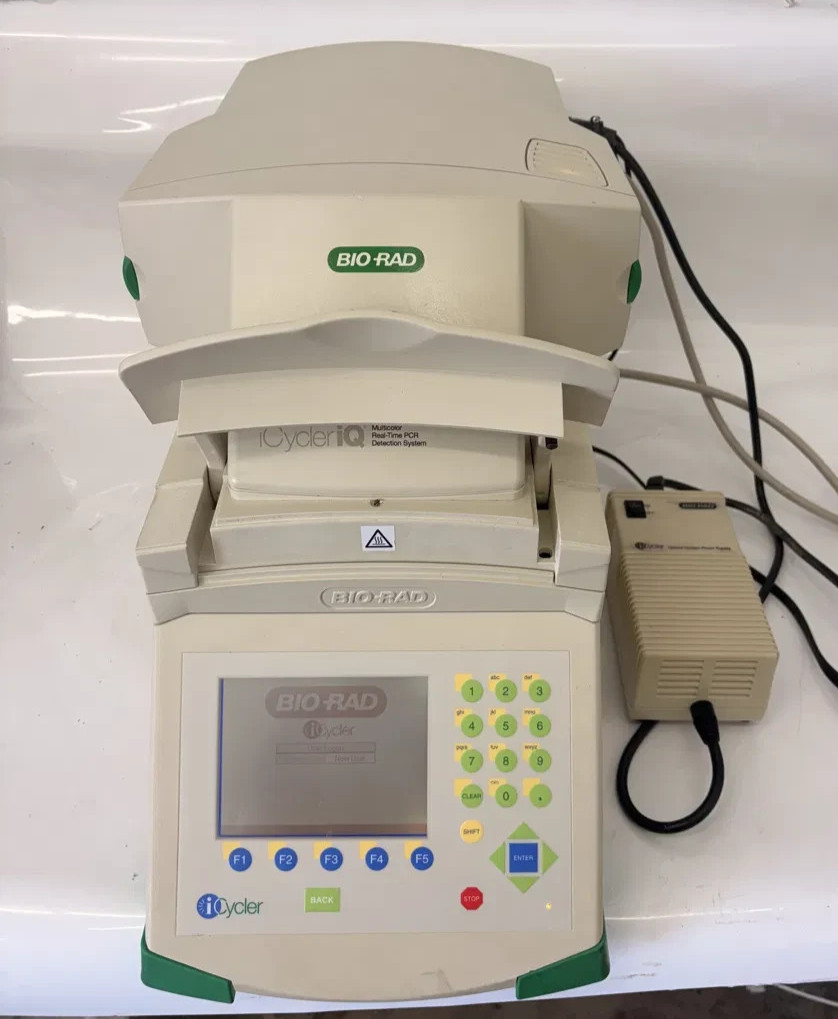

Used, removed from a working laboratory environment. The unit powers on and boots to the Bio-Rad iCycler User Logon screen as shown in the photos. Beyond confirming power-up and display function, no further testing has been performed. No PCR run, thermal calibration, optical calibration, or well-uniformity test has been conducted, and the optical module's lamp and CCD have not been verified.
Cosmetically the system is in good used condition with normal lab wear: light soiling, minor scuffs, and yellowing of the plastic on the power supply housing consistent with age. No cracks or broken housings observed.
SHIPPING
This item will be shipped via UPS Ground or USPS. Shipping for this item will be $149.99.
