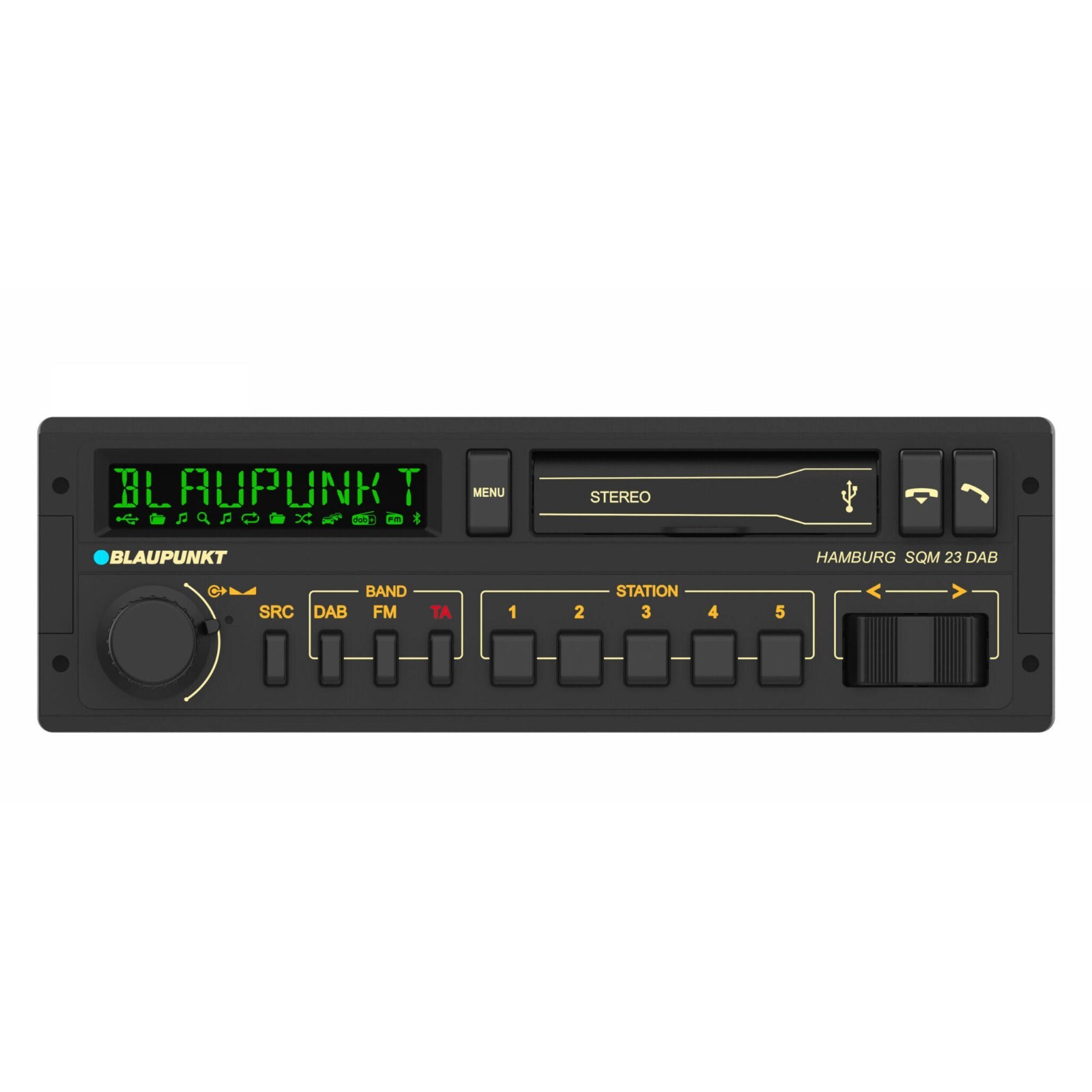

Blaupunkt Hamburg SQM 23 Retro Car Radio Stereo DAB 1980s USB MP3 Bluetooth AUX For Sale



Blaupunkt Hamburg SQM 23 DAB retro 80's car stereo with DAB, Bluetooth, USB, AUX etc.

The classic 80s car radio returns! The relaunched cult car radio Blaupunkt Hamburg SQM 23 DAB with many new features!

Over the years, some models have developed into true cult objects. This also applies to the legendary Blaupunkt Hamburg SQM 23 from 1983. Now we present the new interpretation of the popular 1-DIN car radio and combine the design of the 80s model with new technologies and functions. The result is the Blaupunkt Hamburg SQM 23 DAB.

Its operating concept, simple design and crystal-clear reception contributed significantly to the popularity of the original Hamburg car radio. For the new edition, we adopted the styling of the original model, but at the same time gave the radio modern multicolour lighting for the LCD display. The key labels, which were then still illuminated with light bulbs, are now being replaced by modern and durable warm white LEDs. This lighting can also be activated via the vehicle lighting when the car radio is switched off.

Thanks to the Blaupunkt Codem FM RDS tuner and DAB+ digital tuner, first-class reception remains a strength of the new Youngtimer car radio. New are the multimedia interfaces for modern Apple® devices and USB mass storage media for playing music or charging mobile phones. The Blaupunkt Hamburg also supports Bluetooth® audio streaming from apps such as a music player or streaming service such as Spotify on the mobile phone.

With the help of the voice assistant on the mobile phone (such as Siri, Google or Alexa) the mobile phone can be accessed without having to pick it up. Of course, hands-free calling is also supported.

So that an audio source such as USB, Apple iPod or Bluetooth can be selected directly, a button on the device can be programmed via the menu to start your favourite source. The device settings are permanently saved, even if the battery is disconnected – even if this is no longer necessary thanks to the minimised standby power consumption to protect the battery.

The new Blaupunkt Hamburg SQM 23 DAB has a short installation depth – ideal for classic cars with shortened installation shafts. But it’s not just the car radio itself that takes the user on a journey through time, the packaging of the device was also elaborately designed and modelled on the original.

NOTE: This radio does not play CDs.

Need more than one? Bulk discounts Hamburg SQM 23 DAB Main HighlightsRadio

• High-End CODEM IV World-tuner
• FM, AM, DAB, DAB+ Tuner with radiotext/DLS
• Traffic function
• alphabetical DAB+ following
• Band Introscan

Mediaplayer

• USB (2x), MP2, MP3, WMA, FLAC, M4A (AAC), APE, WAV function
• Mix function
• Apple iPod Support

Bluetooth

• Telephony via Internal and external Microphone
• Audio streaming with track info
• Voice assistant support (e.g. Siri, Google, Alexa)
• Automatically switch on when there is an incoming call (Wake-up on call)
• Phonebook access

Sound

• Sound pre-amp out + subwoofer preamp output
• 4 x 50 Watt

General features

• Multicolour LCD (7 colours)
• Brightness control of display and keys (DIM function)
• Night design if switched off (Buttons)
• Favourite button for one source
• Permanent memory
• Short body (low installation depth)
• IR-remote control option, RC-10 compatible
• Steering wheel remote control support

Blaupunkt Hamburg SQM 23 DAB FULL SpecificationRADIO ANALOGUE / DIGITAL

• Tuner Type: High-End Automotive Tuner Blaupunkt CODEM IV
• World Tuner (switchable): EU, USA, South America, Thailand
• Frequency bands: FM, AM, DAB, DAB+
• Frequency band FM: 87.5 – 108 MHz
• Frequency band MW: 531- 1602/ 530- 1710 kHz
• Channels (frequency band) DAB/ DAB+: 5A- 13F (174,928- 239,200 MHz)
• Station memory: 15x FM, 10x AM, 15x DAB
• Station memory banks: FM1, FM2, FMT, AM, AMT, DAB1, DAB2, DAB3
• Station memory levels deactivatable: FM2, FMT, AM, AMT, DAB2, DAB3
• Station display (PS): Yes
• Radiotext/ Radiotext Plus (RT/ RT+): Yes/ No
• Display DLS/ ENSEMBLE/ SERVICE: Yes/ Yes/ Yes
• Alternate frequency function (AF): Yes
• Traffic Radio (TA) FM/ DAB: Yes/ Yes
• Automatic time adjustment: Yes
• Enhanced Other Networks (EON): Yes
• Regional function (REG): Yes
• Program type identifier (PTY)/ PTY Seek: Yes/No
• Travelstore/ Number of Presets for Travelstore: Yes/ 5x FMT, 5x AMT
• Band Scan/ Preset Scan: Yes/ No
• Sensitivity (FM): Two levels (lo / dx)
• Noise suppression (FM): Yes
• Hi-Cut (FM): Yes (multi-level switchable)
• DAB-DAB Service following: Yes
• DAB-FM Service following: Yes
• Service search: Yes
• Ensemble/ Service selection: Yes/ Yes
• Ensemble/ Service browsing: No/ Yes
• Alphabetical Service list DAB: Yes
• Frequency response FM (Hz) – 3 dB: 30 – 15.000
• Frequency response DAB (Hz) +/- 3 dB: 20 – 20.000

MEDIAPLAYER

• AUX-IN/ automatic detection/ activation: No
• USB front: yes (type A, recessed jack)
• USB rear: yes (type A, cable)
• Memory card reader: No
• Concealed front inputs: Yes (USB usable with flap closed)
• Compatible file system of external storage devices: FAT16, FAT32, exFAT
• Maximum storage size of external storage devices: > 128 GB
• Maximum file/folder count of external storage devices: > 30.000
• CD-/DVD-loader: No
• Playback formats: MP2, MP3, WMA, APE, FLAC, AAC, MP4, WAV
• Hi-Res Audio playback: No
• Display options: ID3V2 (title, artist, album), folder, file, playtime
• Folder & file browsing: Yes
• iPod, iPhone control (iAP2, Lightning/ USB-C) Yes (USB front and rear)
• Shuffle playback folder/ media: Yes/ Yes
• Repeat Title/ Folder/ All: Yes/ Yes/ Yes
• Introscan: Yes (4- 60 seconds adjustable)

BLUETOOTH®*

• Phone call: Yes
• Internal microphone: Yes
• Connectivity ext. microphone: Yes
• Answer/ reject call: Yes/ Yes
• Access phonebook: Yes (max. 1000 numbers)
• Audio streaming: Yes
• Audio streaming ID3 track display: Yes (Title, Artist, Album, Playtime)
• Voice assistant access (e.g. Siri, Google, Alexa): Yes
• Cell phone navigation audio mix: No
• Auto wake-up on call: Yes (when radio off + ignition on), deactivatable
• Fast pairing without PIN: Yes
• Automatic reconnection: Yes, last 5 devices
• Bluetooth version: 5.0, compatible with V4.2 and V2.1 +EDR
• Number of paired devices: last 5
• No. of devices connected at the same time: 1
• Supported profiles: A2DP, AVRCP, HFP, SPPv
• Audio Codecs: AAC, SBC
• *Availability/ support of functions depend on the phone/ app used!

SOUND

• Equalizer Number of bands/ design/ Q-filter: No
• Bass/ treble adjustment: Yes / yes (+/- 7 steps)
• Source specific bass/ treble adjustment: Yes
• Balance/ fader: Yes / yes (+/- 7 steps)
• HPF/ LPF: No
• Loudness: Yes
• Sound Presets: Yes (Rock, Pop, Classic)
• Speaker Outputs (Channels): 4
• Preamp Outputs (Channels, Voltage): 4 (RCA, < 2V)
• Sub-Out: 2 (RCA, gain/ frequency variable)
• Max. Power: 4 x 50 watts
• Sine power at 14.4 V: 4 x 24 watts (according to DIN 45324)

GENERAL

• Display: LCD, negative, anti-reflective, wide angle, alphanumeric/ symbols
• Scrolling text: Yes (once, repeatedly)
• Illumination colour display: Green, yellow, red, violet, blue, skyblue, white
• Illumination colour keys: Amber, Modelled on original light bulb lighting
• Day/ Night mode: Yes (manual/ via dimmer connection)
• Nightdesign if powerd off: Yes (buttons)
• Brightness: Multi-level, variable
• Time display: Yes
• HMI languages: English, German
• 1 hour off timer if ACC off: Yes, deactivatable
• Low standby current: Yes (< 3,5 mA )
• Antenna inputs: FM DIN/ ISO (Adaptor), DAB SMB (with 12 V phantom power)
• Telephone mute: Yes
• Ext. handsfree microphone connector: Yes, 2,5mm
• Remote control: Yes (IR input for card remote and old RC-10 remote control)
• Steering wheel remote control (SWC): Yes (analog, programmable, pre-programmed)
• Variable scan time: Yes (4, 8, 12, 60s)
• Confirmation beep: Yes (deactivatable)
• Control panel type: Fixed panel
• colour panel/ decor ring: Black/ Black
• Software Update: via USB
• Permanent Memory: Yes (Settings & Presets)
• Demo mode: Yes
• Weight: approx. 0.65 kg
• Dimensions: 50mm x 178mm x 116mm (H x W x D, housing only), 58mm x 187mm x 11mm (H x B x T , front w/o keys)
• Operating voltage/ power consumption: 10.5 – 14.4 V/ < 10A in operation, 10 sec. after ACC power off: < 3.5 mA

SCOPE OF DELIVERY:

• User manual: Yes (DE, EN, DA, NL, FR, ES, PT, IT, PL, CS)
• External BT microphone: Yes
• Unlocking tool: Yes
• Connectors (ISO A, B): Yes
• Antenna adaptor (DIN/ ISO): Yes
• DAB antenna: Optional accessories (e.g. 2 006 021 000 000)
• IR remote control: Optional accessories (1 101 402 001 001)
