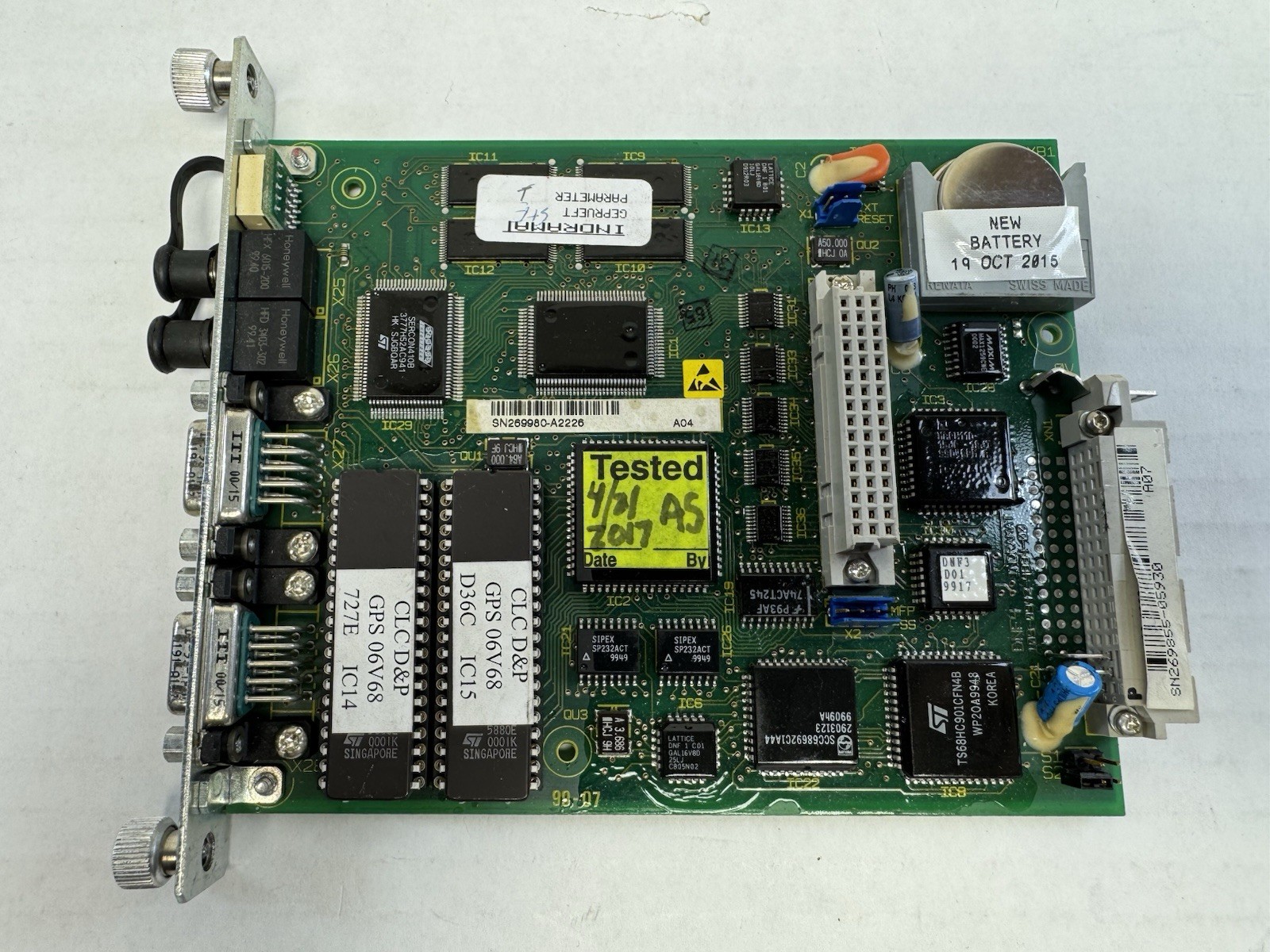

Bosch Rexroth Indramat CLC-D02.3 CLC Motion Control Board
Item was working perfectly when taken out of service and then stored in a climate controlled locker as a spare
TheBosch Rexroth Indramat CLC-D02.3fromtheCLC Motion Controllersseries is a high-performance motioncontrol card engineered for advanced industrial automation. It deliverscoordinated control ofup to 3 axesand supportsmulti-taskingcapabilitywithup to 4 simultaneous jobsacrossupto 40 axes, ensuring optimal throughput on complex machinery.
Powered bya25 MHz CPU clock frequency, it features512 kBbattery-backed SRAMand amaximum storage capacity of 1 MBforprogram and data retention.
Two communication ports- Port A forASCIIHost Protocoland Port B configurable forHost ProtocolorVisualMotion- facilitate seamless integration.
The card’ssingle-digitseven-segment LED displayprovides clear status and error codes, whileits form factor fits directly into theDDS drive bay in host PCsforsimple installation and reliable, continuous operation.
Technical Specifications
Axes Coordinated Control
Up to 3 axes
CommunicationPort A
ASCII Host Protocol
Communication Port B
Configurable for Host/Visual Motion
CPU Clock Frequency
25 MHz
Installation
Fits DDS drive bay in host PCs
Maximum Axes Control
Up to 40 axes
Maximum Storage Capacity
1 MB
Memory
512 kB battery‑backed SRAM
Multi‑tasking Capability
Up to 4 simultaneous jobs
ID-177405467858
