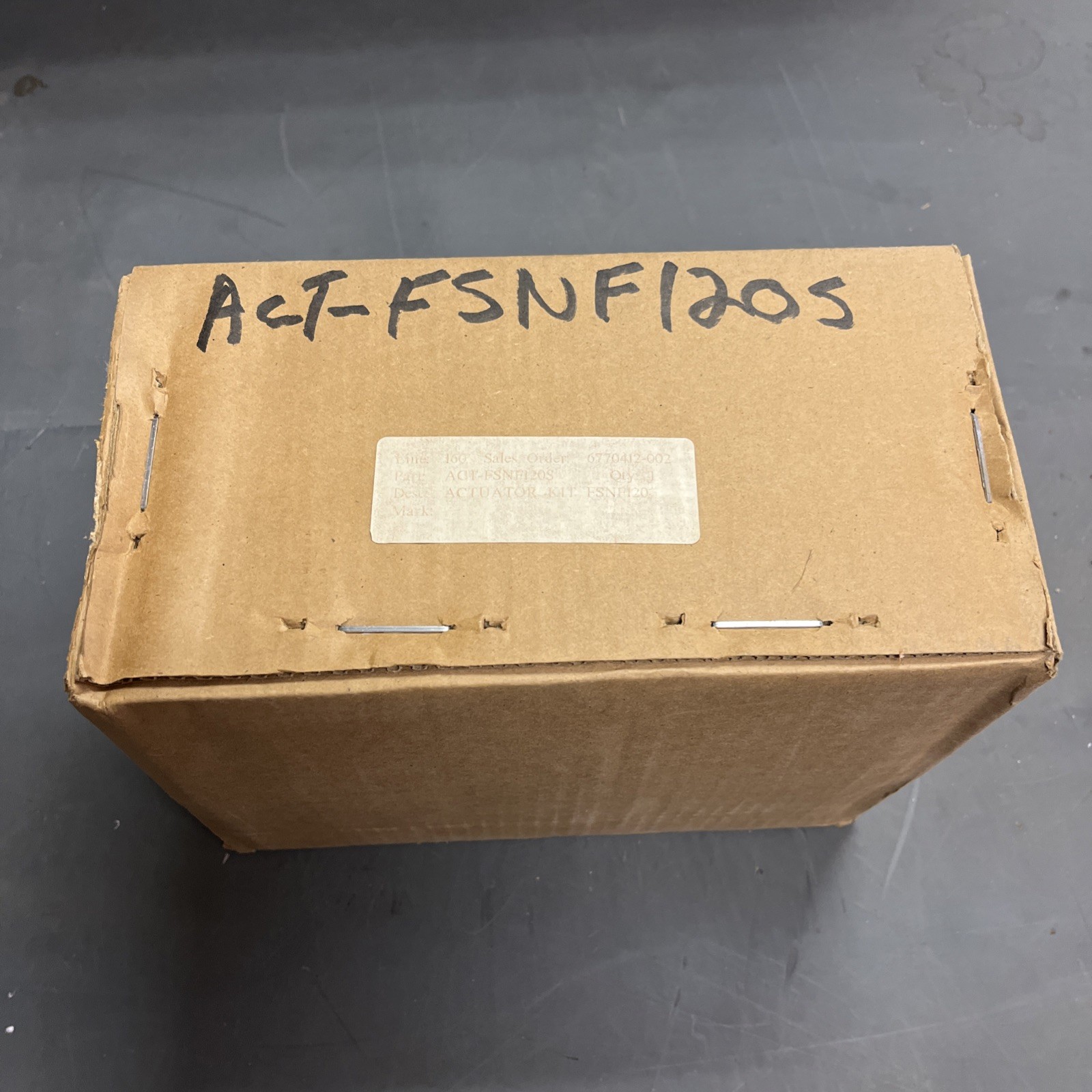

Brand New | FULL KIT | Belimo FSNF120-S-FC US Fire Smoke Damper Actuator 120V | U.S.A. SELLER
NOTE: See pictures for full details and included items.New, box shows signs of shelf wear and dust, but units are brand new with no damage.
This unit came from a large industrial HVAC company that needed space and was liquidating large amounts of old stock inventory, much of which is new in box, unused items. This unit is new, no damage, and has sat on the shelf for a long time, collected some dust, but will be cleaned and shipped safely.
Guaranteed to work or your money back. Please see pictures for more details.
Please message us for any additional questions you may have and we will do our best to help, but also know that we are not experts on these items. We have very basic knowledge on our inventory because we are primarily resellers.
FREE Shipping disclosure:
——
Free shipping is to the lower 48 states only Alaska Hawaii and US territories will have to pay additional for shipping charges also I can only ship to UPS Ground locations if you are not serviced by UPS Ground I cannot ship for AI Generated Information:
(Please ensure correct details)
Product / Part Name: Belimo FSNF120-S-FC US Fail-Safe Fire & Smoke Damper Actuator – Full Kit
Country of Manufacture: Switzerland / Country of assembly may vary
Specifications / Item Specifics
- Manufacturer: Belimo
- Model: FSNF120-S-FC US
- Series: FSNF
- Product Type: Fire & Smoke Damper Actuator
- Actuator Type: Spring-Return / Fail-Safe
- Control Type: On/Off
- Nominal Voltage: 120 VAC
- Operating Voltage Range: 96–132 VAC
- Frequency: 50/60 Hz
- Motor Torque: 70 in-lb / 8 Nm
- High-Temperature Rating: 70 in-lb torque at 350°F / 177°C for 30 minutes
- Approximate Damper Capacity: Up to 12 sq. ft. at 350°F depending on damper construction and application
- Motor Running Time: 15 seconds / 90°
- Fail-Safe Running Time: Less than 15 seconds
- Maximum Angle of Rotation: 95°
- Power Consumption in Operation: 27 VA
- Holding / Rest Power: 6 W
- Inrush Current: 3.2 A
- Auxiliary Switches: 2 SPST
- Auxiliary Switch Rating: 3 A resistive / 0.5 A inductive at 250 VAC
- Auxiliary Switch Positions: One at 10° and one at 85°
- Connector Type: 3/8 in. Flex Connector
- Overload Protection: Electronic throughout actuator rotation
- Housing Material: Galvanized Steel
- Gear Construction: Steel, permanently lubricated
- Enclosure Rating: NEMA 1 / UL Enclosure Type 1
- Ambient Operating Temperature: 32°F to 122°F / 0°C to 50°C
- Storage Temperature: -40°F to 176°F / -40°C to 80°C
- Maximum Humidity: 95% RH, non-condensing
- Approximate Actuator Weight: 6.8 lb
- Maintenance: Maintenance-Free
- UL 2043 Compliant: Suitable for air-plenum applications
- Agency Listing: cULus
- Application: Designed for UL 555 and UL 555S listed fire and smoke damper applications
- Fail-Safe Operation: Internal spring returns the damper to its safety position if electrical power is interrupted
- Direction of Motor and Fail-Safe Operation: Reversible according to CW/CCW mounting orientation
- Typical Applications: Fire dampers, smoke dampers, combination fire/smoke dampers, HVAC life-safety systems, commercial buildings, hospitals, institutional facilities, and industrial ventilation systems
- Listing Configuration: Full Kit
- Condition: Brand New
