Manufacturer: CSF Radiators
Part Number: 7075
Condition: New

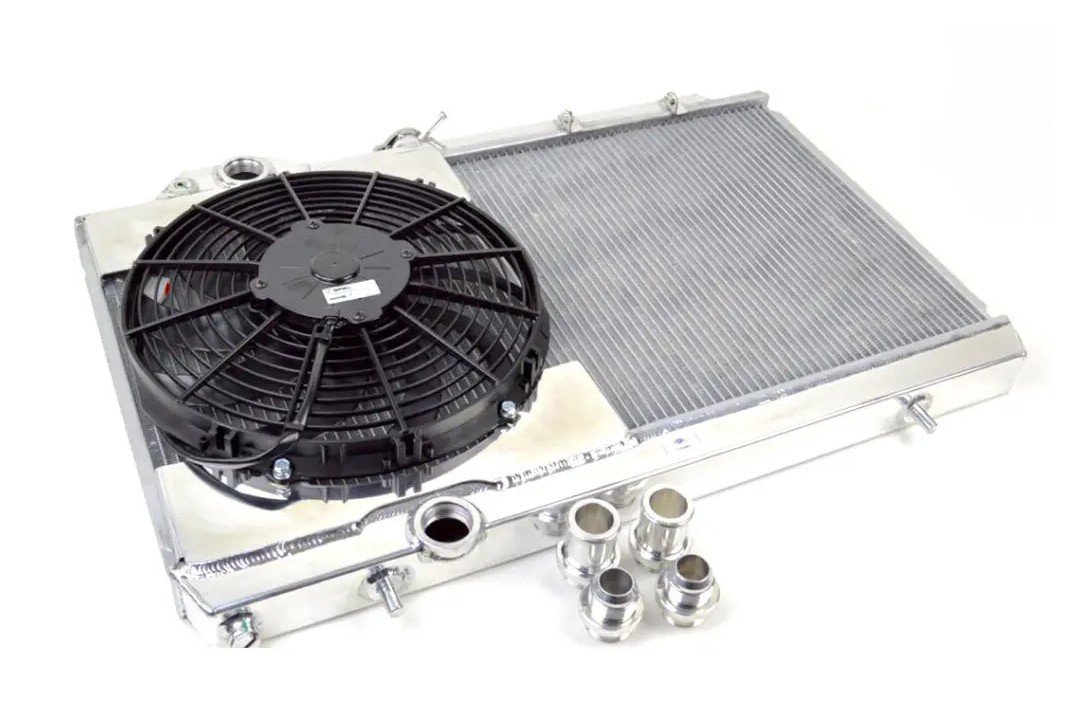

Product Description: Mitsubishi Evo 4/5/6/7/8/9 Full Size Slim All-Aluminum Radiator w/ 12in SPAL Fan
CSF manufactures the most advanced and efficient radiator in the industry for your Evo 7/8/9. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Evo 7/8/9 running at its best a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF\'s exclusive B-Tube Technology: Unlike a regular oval shape \"O\" type radiator tube CSF uses a specially engineered tube in the shape of a \"B\". These \"B-tubes\" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal \"O\" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With \"B-tubes\" you are able to get \"dual liquid laminar flow\". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application and tested for maximum heat rejection efficiency in our wind-tunnel lab.; The CSF Evo 7/8/9 radiator is a true \"Drop-in fit\" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing highest-quality and most reliable radiators.
2-Row 42mm Core (Dual Core) Featuring CSF\'s Exclusive B-Tube Technology
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined \"Quick-Connect\" Inlet/Outlet Connections
CNC Machined Brackets and Fittings for Superb Fit and Durability
All-Aluminum Race Style Drain Plug
1-Hour \"Mirror Finish\" Hand Polish
Drop-in Fit Additional Information: Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 14.75 in.
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness: 1.25 in.
Core Width: 27 in.
Down Flow Or Cross Flow Type: Down Flow
Finish/Color: Polished
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On or AN Fitting
Inlet Diameter: 1.375 in.
Inlet Location: Top Left
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On or AN Fitting
Outlet Diameter: 1.375 in.
Outlet Location: Bottom Left
Prop 65 Yes/No: No
Radiator Cap Included: Yes
Tank Material: Aluminum
Thermostat Included: No
Title: Mitsubishi Evo 4/5/6/7/8/9 Full Size Slim All-Aluminum Radiator w/ 12in SPAL Fan
Associated Comments: The CSF #7075 Cooling product is designed to be a \"Drop-In Fit\" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility. Guaranteed Fitments: 2005-2006 Mitsubishi Lancer SPARKTEC MOTORSPORTS store POLICIES
