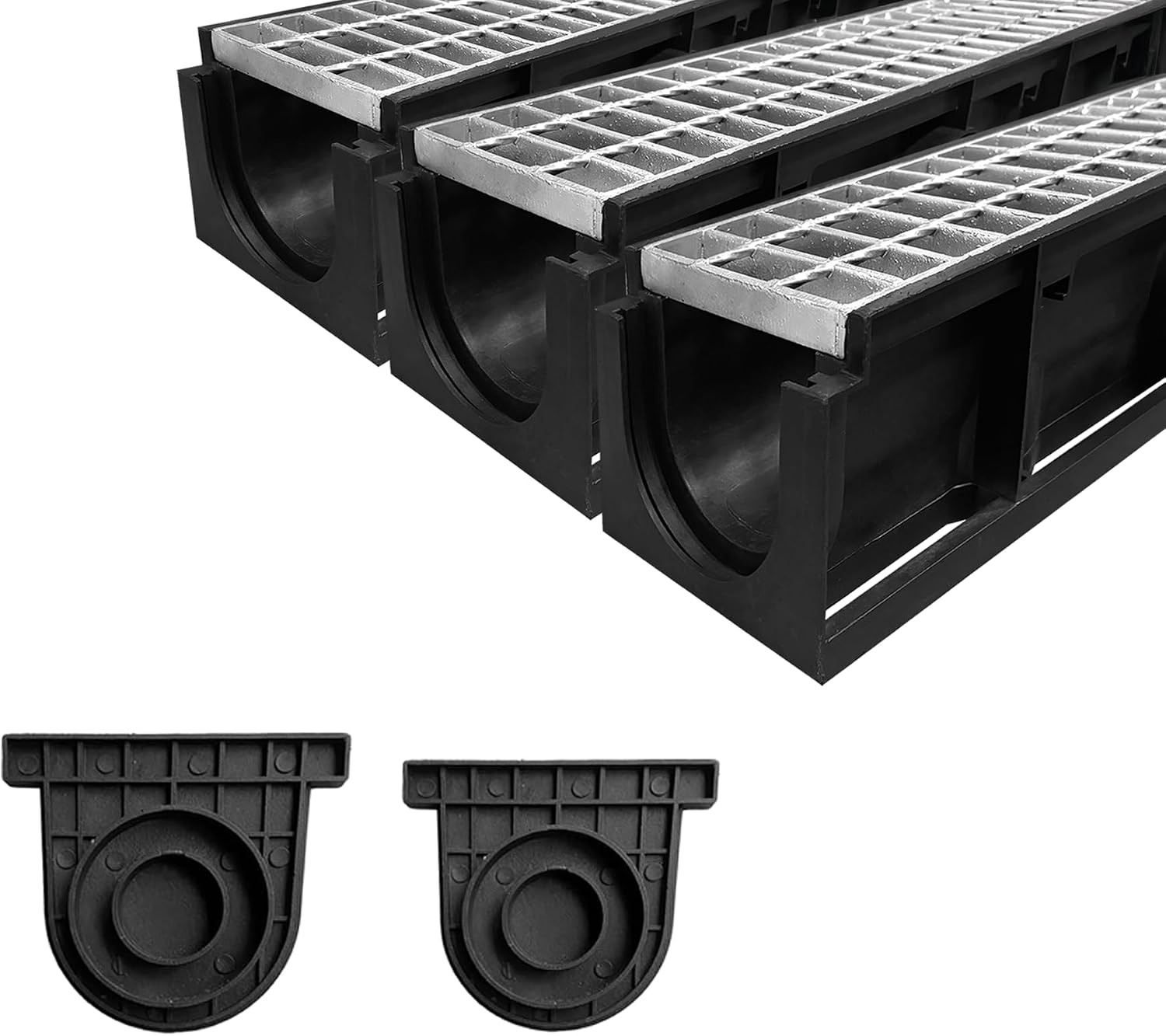

Channel Drain with Galvanized Steel Grates-39.4Lx6.1Wx5.5H In. Deep Profile Trench Drain System for Driveway,3 Pack Total Length 118.2In,Heavy Duty Trench Drain for Garage,Parking LotDescription Number of Items 3 Model Number PSG-DXG-100x100-3 Manufacturer Part Number PSG-DXG-100x100-3 Item Weight 37.3 Pounds Color Galvanized Steel 3 Pack Product Style Garden Material Type Alloy Steel Finish Types Galvanized Steel Item Dimensions W x H 6.1"W x 5.5"H Additional Features B125 Load Capacity, Corrosion Resistance, Easy Connection, Heavy Duty, Reinforcing Rib Material Alloy Steel Finish Type Galvanized Steel Product Dimensions 6.1"W x 5.5"H
Product description NATOTELA DRIVEWAY TRENCH DRAIN SYSTEM
HDPE channel drain body and the galvanized steel grate ensure the channel drain sturdy enough to pass the cars. 13.78 lb for each pack. Generally speaking ,heavier weight, better quality, larger capacity.
PRODUCT SPECIFICATIONS Brand Natotela Manufacturer Natotela Material High Density Polyethylene (HDPE) & Hot Dip Galvanized Steel Load Capacity 4tons or 8800lbs Each Body Dimension 39.4Lx6.1Wx5.5D in Each Body Weight 4.08 lb Each Grate Dimension 39.2Lx5.3Wx0.8D in Each Grate Weight 9.7 lb Connection Diameter 1-5/8\", 1-7/8\", 2-15/16\", 3\", 3-1/8\", 4-5/16\" External Dimensions 40.2x6.1x5.5 in Internal Dimensions 39.4x3.9x3.9 in Applications Driveway, garage, parking lot, commercial site, factory and so on 1 Pack 1 Trench Drain, 1 Grate, 2 End Caps. 39.4in Total Length, 13.78lb Total Weight 3 Pack 3 Trench Drain, 3 Grates, 2 End Caps. 118.11in Total Length, 40.63lb Total Weight GALVANIZED STEEL GRATE
This trench grate is made of galvanized steel which has high strength and toughness. Loads up to 8800 lb. Make sure the trench drain sturdy enough to pass the ordinary cars.
3 PACK GARAGE LENGTH
3 pack 118.11 in total length is the preferred choice for garage drainage.
CONNECT WITH OUTLET ADAPTER
When you connect the pipe through the outlet adapter for drainage, you need to block one end with the larger male connector. Then use a saw to cut off the smaller female connector to connect the drain pipe.
CONNECT WITH 4\" CORRUGATED PIPE
If the diameter of the outlet adapter does not match your yard drainage system that\'s already in the ground, you can also directly connect the 4\" corrugated pipe at one end of the channel and the other end with the end cap.
OTHER PRODUCTS IN NATOTELA Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars 15 5.0 out of 5 stars 6 4.8 out of 5 stars 7 3.9 out of 5 stars 6 4.8 out of 5 stars 13 5.0 out of 5 stars 10 4.0 out of 5 stars 35 Price $9.99$9.99 $149.99$149.99 — — $159.99$159.99 $134.99$134.99 $169.99$169.99 MATERIAL HDPE Galvanized Steel Stainless & Galvanized Steel HDPE & Ductile Iron HDPE HDPE HDPE DIMENSION 5.9x5.1x1.6 in. 39.4x6.1x5.5 in. 39.4x7.1x6.3 in 19.7x5.5x3.9 in. 39.4x6.1x5.5 in. 39.4x6.3x7.8 in. 19.7x5.5x3.9 in. WEIGHT 0.35 LB Each Pack 9.26 LB Each Pack 34.73 LB Each Pack 6.83 LB Each Pack 6.72LB Each Pack 7.5LB Each Pack 2.78 LB Each Pack PACK 1 1 & 3 1 & 3 2 & 6 & 12 1 & 3 & 6 1 & 4 2 & 6 & 12 APPLICATIONS 39.4x6.1x5.5 in channel drain Driveway,Garage Driveway,Garage Driveway,Garage Driveway,Garage Driveway,Garage Driveway,Garage
- HDPE TRENCH BODY: 39.4x6.1x5.5 inch channel drain with grate is made of high density polyethylene (HDPE) which has higher hardness and tensile strength than ordinary polyethylene. Make sure the trench drain system will not easily damaged and has a long service life. Bottom outlet diameter is 3\" & 4-5/16\"; Outlet adapter diameter is 1-7/8\" & 3-1/8\"; Side outlet diameter is 1-5/8\" & 2-15/16\".
- GALVANIZED STEEL GRATE: This trench grate is made of galvanized steel which has high strength and toughness. Loads up to 8800 lbs. Make sure the trench drain sturdy enough to pass the ordinary cars. Adopt the process of hot-dip galvanizing which keeps the thicker zinc surface and better anti-corrosion ability. Durable and long service life.
- REINFORCING RIB: This galvanized steel grate is reinforced with flat steel bars. And each bar is thickened and widened. Make sure the heavy duty and high strength of the grate. Besides, the twistted bars ensure the structural stability of the grate to extend the service life.
- PERFORATED DESIGN: Our trench drain system for driveway adopts perforated design. It ensures fast drainage and prevents leaves and small objects from entering the trench bottom. Moreover, the grate and the trench adopt sliding connection without screws or clasps. Easy to clean.
- PACKAGE INCLUDES: What you currently see consists of 3 grates, 3 trench drain and 2 end caps. 118.11 in. total length. You can connect this driveway channel drain directly together for extra length. Please allocate sufficient time for your project to prevent the occurrence of project delays due to delivery delays.
