YRMDU

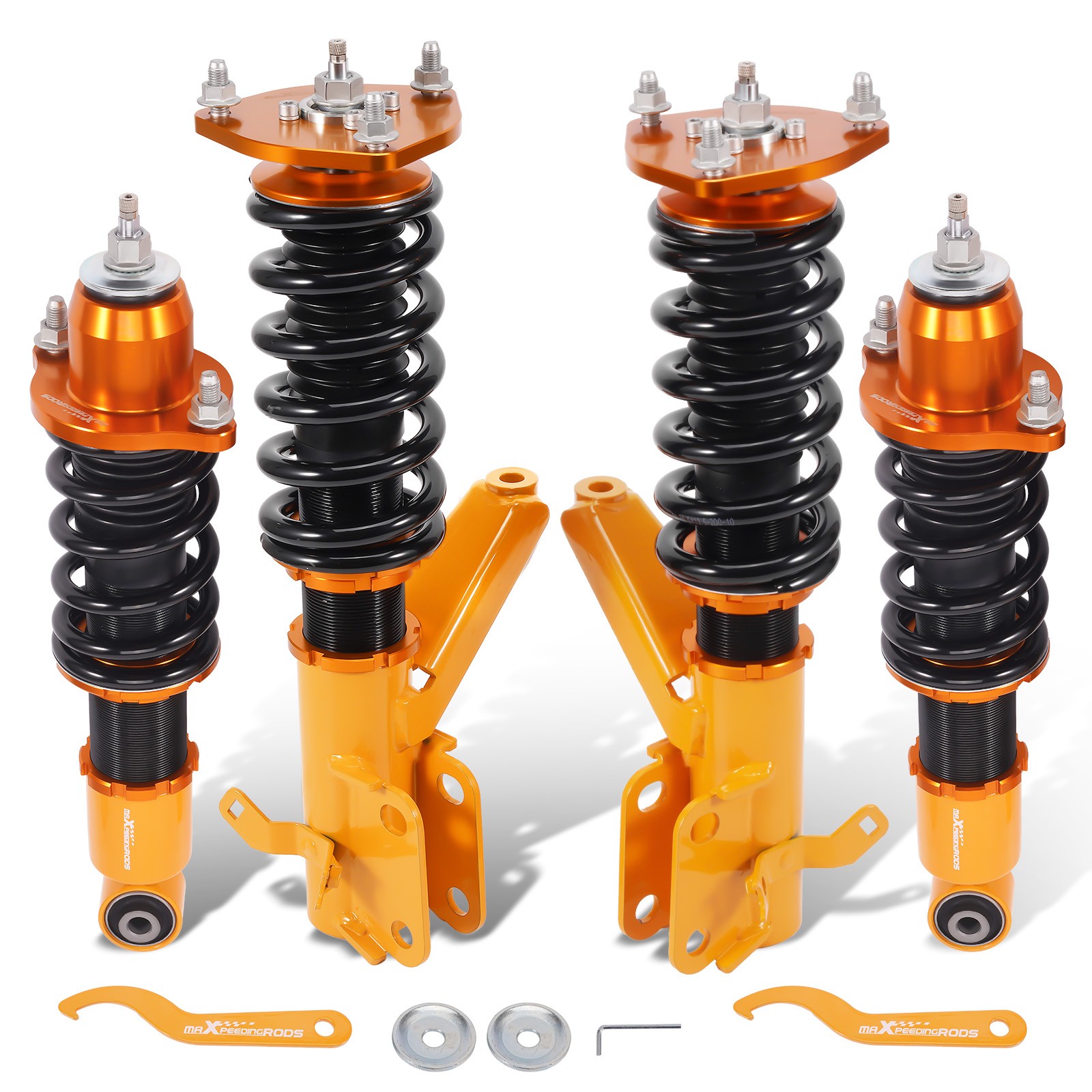

Coilovers 24 Way Adjustable Damper Suspension Kit Fit Honda Civic 2001-2005
All modifications must be installed by licensed mechanics and in compliance with your local modification
Aluminum Pillow Ball Top Mount
Aluminum Pillow Ball Top Mount Provides More Precise Feel From Suspension And Steering.
Anodized Shock Body With Anti-Corrosion Coating
Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.
Drops From 1 to 3 Inch From Factory Ride Height
Full Threaded Absorber Tube Casing For Independent Height Adjustment.
Durable Cold Wound Steel & Heat Treated Coils
High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.
Aluminum Pillow Ball Top Mount
Anodized Shock Body With Anti-Corrosion Coating
Drops From 1 to 3 Inch From Factory Ride Height
Durable Cold Wound Steel & Heat Treated Coils
Specifications
Top Mount Material Aluminum Adjustable height Yes, Lowering 1-3 inch Front Spring length 200 mm Rear Spring length 140 mm Front spring length 10 kg/mm (560 lbs/in) Rear spring length 6 kg/mm (336 lbs/in) Front spring inner diameter 70.5mm Rear spring inner diameter 62 mm Package Including 2 Front + 2 Rear Warranty 1 Year
Features
- 24 Step to adjust soft / hard adjustment according to your preference
- Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height
- 55CrSi high strength durable cold wound steel & heat treated coils
- Manufactured from high quality T-6061 billet aluminum with an anodized finish for superior strength and corrosion protection.
- Improved Handling and stability without premature tire wear
- Improved Vehicle Stability and traction in hard cornering situations
- Full threaded absorber tube casing for independent height adjustment
- Twin-Tube System for Comfortable Ride on Honda civic VII DX/EX/GX/HX/LX/Si Coupe (EM2) 2001-2005
For Honda civic VII DX/EX/GX/HX/LX/Si Sedan (ES, ET) 2001-2005
Not fit for Front top mount: Pillow ball
- Rear top mount: Standard rubber
- Damping adjustable: Available, 24 levels of rebound damping force
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 10 kg/mm (560 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 200 mm
- Spring length Rear: 140 mm
- Spring Preload advised: 7-10 mm
Package Includes
2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench
★ 30-day Money Back & 1-Year Replacement Guarantee. Please feel free to contact us if there is any question.
Lower ride height between 1 and 3 inches, will not keep OE height; Independent Ride Height And Spring Tension Settings; 24 Clicks of Rebound Damping Force Adjustment; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Top Pillow Ball Mount Provides More Precise Feel From Suspension And Steering；Full 1 Year Limited Warranty From Date Of Purchase.
