Description

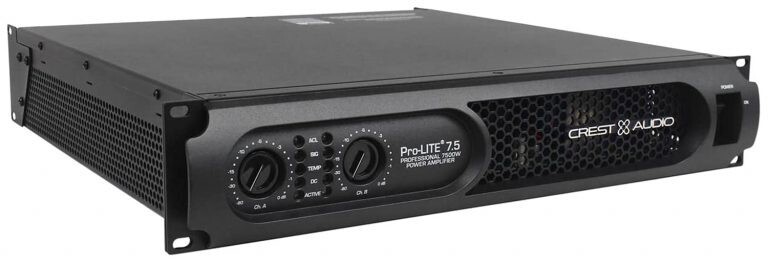

The Pro-LITE 7.5 power amplifier features an incredibly lightweight, efficient design with high power and stable performance.
The Crest Audio® Pro-LITE 7.5 amplifier is designed with an advanced, high-speed class D design with a switch-mode power supply that reduces weight while increasing reliability, thermal efficiency and output power.
The onboard protection suite includes Crest Audio's proprietary ACL? Automatic Clip Limiting circuitry, which prevents the amplifier from sending potentially damaging clipped signals to the loudspeakers, as well as DC, Temp, Signal and Active safeguards, all referenced on the front panel with LED indicators.
Features Pro-LITE 7.5
3790 Watts @ 2 ohm per channel
2450 Watts @ 4 ohm per channel
1425 Watts @ 8 ohm per channel
ACL Automatic Clip Limiting protection
Revolutionary Pro-LITE class D topologry
Detented input controls
Neutrik® Combi Neutrik® XLR-1/4" inputs
Speakon® output connectors
XLR thru connector
Two channel-independent fourth order crossovers
Additional informationChannels (Input)
2
Channels (Output)
2
Power per Channel @ 2 ohom
3790 W
Power per Channel @ 4 ohm
2450 W
Power per Channel @ 8 ohm
1425 W
Topology
Class D
Minimum Load Impedance
2 ohm
Frequency Response
-3 dB, 20 Hz ? 25 kHz; +0 dB
Input Connectors
2 x XLR-1/4" Combo & 2 x 1/4" Jack
Output Connectors
2 x Neutrik® Speakon® NL4
Color
Black
Rack Mount (19")
Yes (2U)
Net Weight
14.6 lbs (6.61 kg)
Product Height
3.50" (89 mm)
Product Width
19.00" (483 mm)
Product Depth
17.60" (447 mm)
AC Power Input
120VAC 60 Hz & 220-240VAC 50 Hz version available
SKU
03602200
