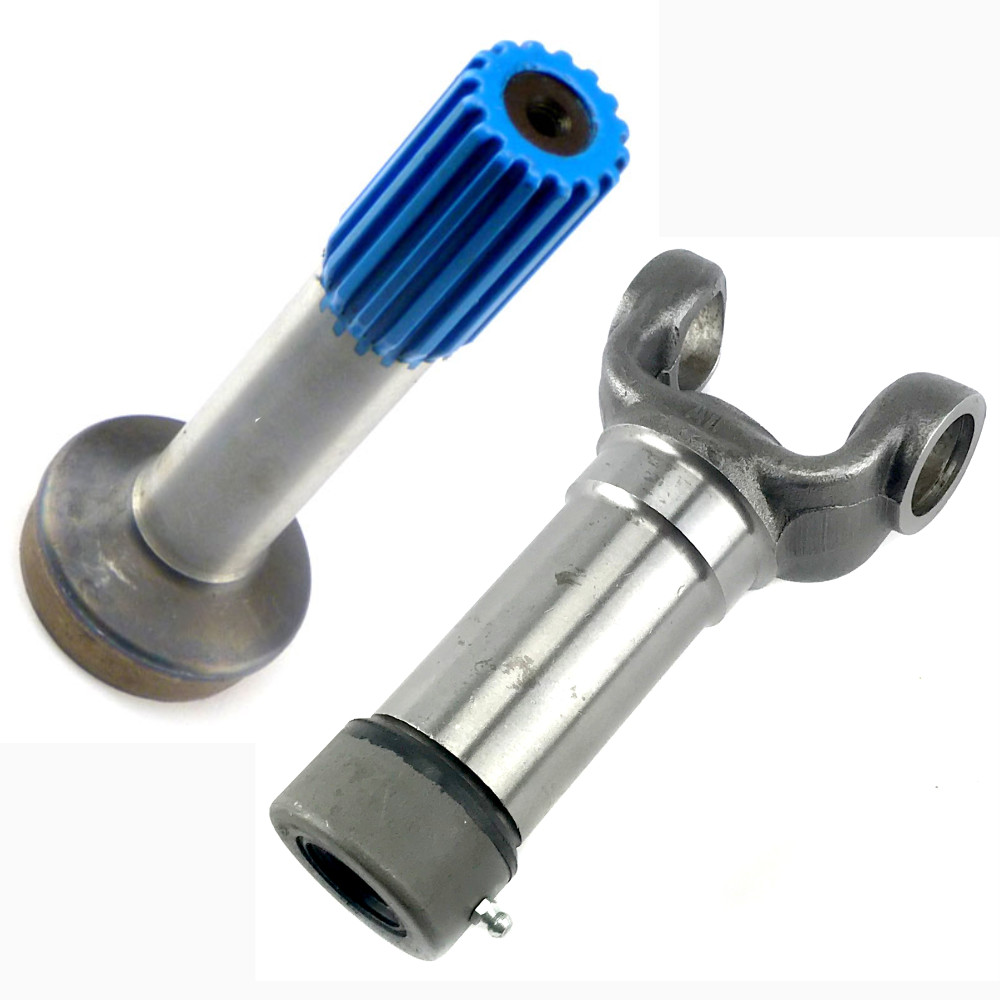

You are buying a slip yoke and stub shaft kit for 2.500" x 0.83" Design Type - LD-MD Driveshaft
U-Joint Series - 1350
Spline Major Diameter - 1,375
Spline Count - 15 visible 16 with missing spline
Spline Type - 15 Based on 16 Spline
Max Joint Angle - 45,000
Universal Joint Retaining Width (E) - 3,875
Universal Joint Bearing Diameter (D) - 1,188
Centreline of Joint to End of Spline (J) - 6,810
Centreline of Joint to Face of Plug (F) - 1,190
2-40-1711:
Spline - 1.375x16
Tube - 2.500 X .083
(K) - 6.344
(L) - 2.250
(R) - 5.625
(B) - 2.344
Compatible U-Joint kits
5-178X, 5-1350X
Style Snap Ring
