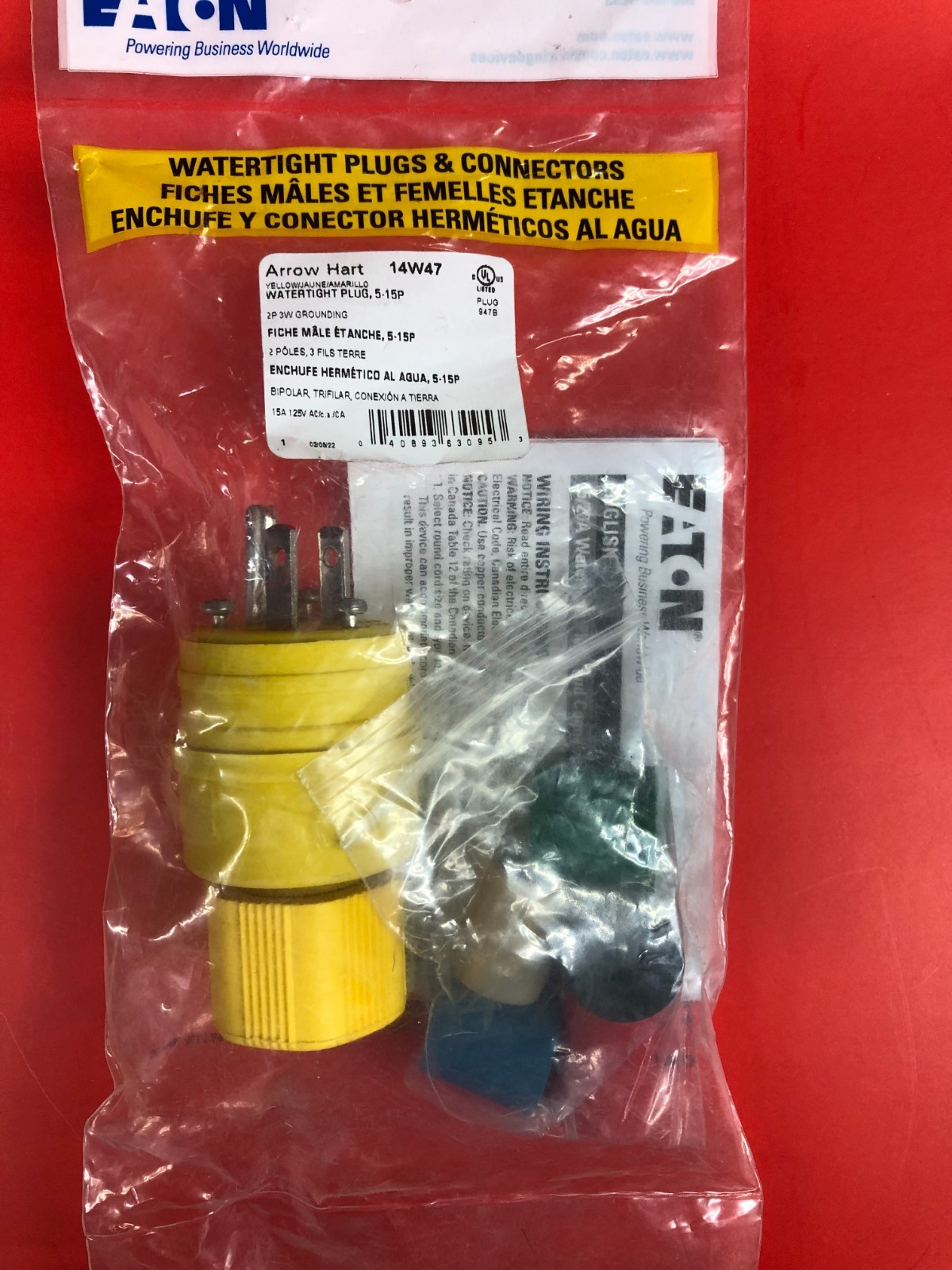

Eaton14W47 Eaton Arrow Hart watertight straight blade plug, Yellow
Eaton 14W47 Eaton Arrow Hart watertight straight blade plug,#18-10 AWG, 15A, Industrial, 125V, Back wire, Yellow, Nickel-plated brass, IP67,Santoprene thermoplastic elastomer, 5-15P, Two-pole, three wire, grounding, Screw,0.30-0.65"in diameter, Thermoplastic.
Electrical Ratings
- ·AMPERAGE RATING: 15A
- ·NEMA CONFIGURATION: 5-15P
- ·NUMBER OF POLES: Two-pole
- ·NUMBER OF WIRES: 3
·RECEPTACLE TYPE: Two-pole, three-wire, grounding
- ·TORQUE RATING: 14 lbf-inch
- ·VOLTAGE RATING: 125V
Product Specifications
- ·APPLICATION: Industrial
- ·CORD RANGE: 0.30-0.65" in diameter
- ·DESIGN TYPE: Straight blade
- ·DEVICE GRADE: Watertight special use
- ·FACE/BODY MATERIAL: Santoprene thermoplastic elastomer
- ·MATERIAL: Thermoplastic
- ·STYLE TYPE: Straight body
- ·TYPE: Complex environment
Environmental Specifications
- · ENVIRONMENTAL CONDITIONS: Damp/wet
- · ENVIRONMENTAL RESISTANCE: IP67
